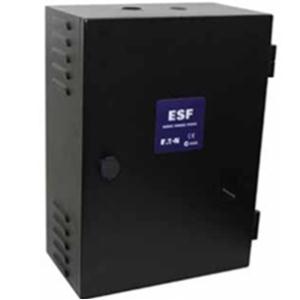

Eaton 3 Phase 63A 100kA Imax L-N plus 50kA Imax N-E enclosed ESF633-TN-E

Features

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)

Eaton's MPN:

ESF633-TN-E

25Kg+ Freight Rate-3 Phase, 63A, 100kA, Imax L-N, plus 50kA Imax N-E, enclosed

EATON ESF633-TN-E

3 Phase 63A 100kA Imax L-N plus 50kA Imax N-E enclosed

The ESF series surge filters are Class II, single and three phase, 2 port SPDs, designed to provide complete site surge protection in a compact footprint.

Technical Specifications

Specifications
Battery
Communication/Management	Alarms/Indicators: Includes status indicators, dry contact alarm relay output (normally-closed with power applied and all SPD’s at 100% capacity). Contact rating 250Vac/32Vdc, 5A, alarm under-voltage cut off 180Vac.
Device Type
Frequency
Input Connection	Terminations: Bolted lug. 8mm bolts for phase and neutral connections. 6mm PE (earth) stud provided on gear tray. All connections identified on unit.
Input Voltage	380 – 440VAC (Uc)
Misc.
Output Receptacles
Output Voltage
Power Rating/Capacity	63 Amp, 3 phase
Series	Eaton ESF Series Filters
Typical Runtime	15 hits @ 50kA (8/20uS, each mode)
Warranty	5 years, workmanship and materials
x`

Specifications

Battery

Communication/Management

Alarms/Indicators:
Includes status indicators, dry contact alarm relay output (normally-closed with power applied and all SPD’s at 100% capacity). Contact rating 250Vac/32Vdc, 5A, alarm under-voltage cut off 180Vac.

Device Type

Frequency

Input Connection

Terminations:
Bolted lug. 8mm bolts for phase and neutral connections. 6mm PE (earth) stud provided on gear tray. All connections identified on unit.

Input Voltage

380 – 440VAC (Uc)

Misc.

Output Receptacles

Output Voltage

Power Rating/Capacity

63 Amp, 3 phase

Series

Eaton ESF Series Filters

Typical Runtime

15 hits @ 50kA (8/20uS, each mode)

Warranty

5 years, workmanship and materials

Information

SKU/Item No 470339

Vendor Part No ESF633-TN-E

UPC/EAN Number 743172035882

Our Stock ** (click for more info)

Price

$2,900.13
