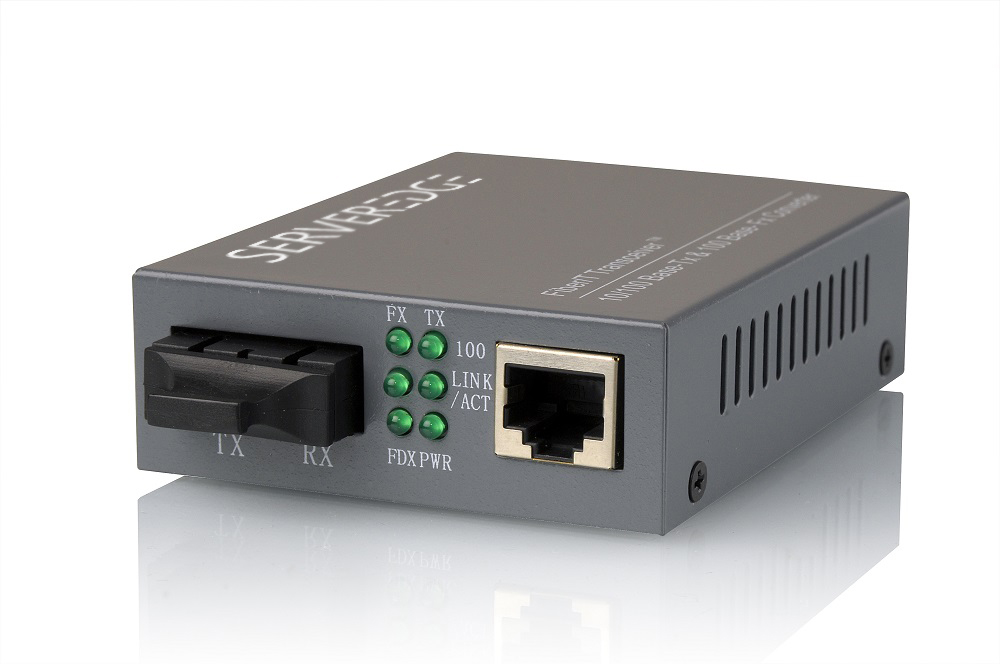

Serveredge 10/100Base-TX to 100Base-FX Singlemode SC Fibre Media Converter (100km) SED-100SSC-100

Alogic's MPN:

SED-100SSC-100

The Serveredge SED-100SSC-100 fibre media converter allows you to connect your copper infrastructure to the fibre channel and vice versa.The built-in 10/100 switch enables the fiber cable connection to operate at 1 Mbps connected to either a 10BaseT or a 100BaseTX network while remaining completely 100BaseFX standard-compliant.Fiber connection can also operate in full duplex mode whether the RJ-45 port is connected to a full duplex switch or a half duplex hub with the built-in switch providing the network segmentation that permits the maximum fiber distance. Each Media Converter provides a 10/100BaseT/TX auto-negotiating RJ-45 twisted-pair connector port featuring store-and-forward switching architecture. Auto-MDIX capability on the twisted-pair port allows for convenient connections.

• Built-In Twisted-Pair Port 10/100 Switch
• Auto-Negotiation RJ45 Connector with Auto-MDIX
• SC Connector
• LEDs for Functions Links & Activity
• Link Fault Signaling For Use with Managed Switches
• 1024 Mac Address Capacity
• Store and Forward Architecture
• Full and Half Duplex Operation
• Singlemode Spans up to 100 Km
• Wall or Chassis Mountable
• IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX & IEEE 802.3u 100BaseFX Compliant
• Compliant to FCC part 15 Class A CISPR Class A VCCI Class A CE Mark CTick
• 2 Year Manufacturers Warranty
