2-Port USB DVI Cable KVM Switch - [ Old SKU: CS-22D ] CS22D-AT

Features

Aten/Altusen

Aten/Altusen's MPN:

CS22D-AT

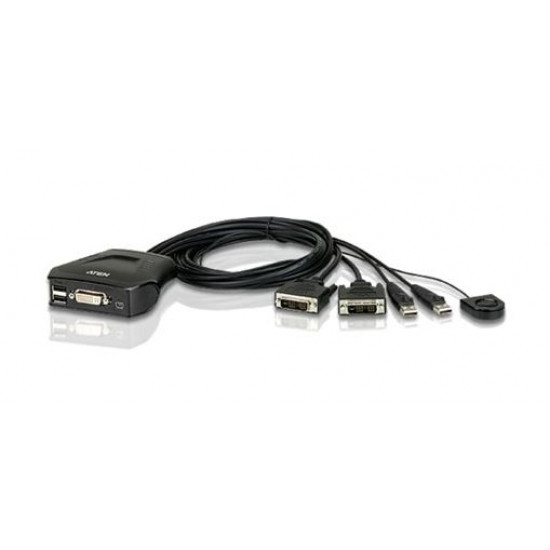

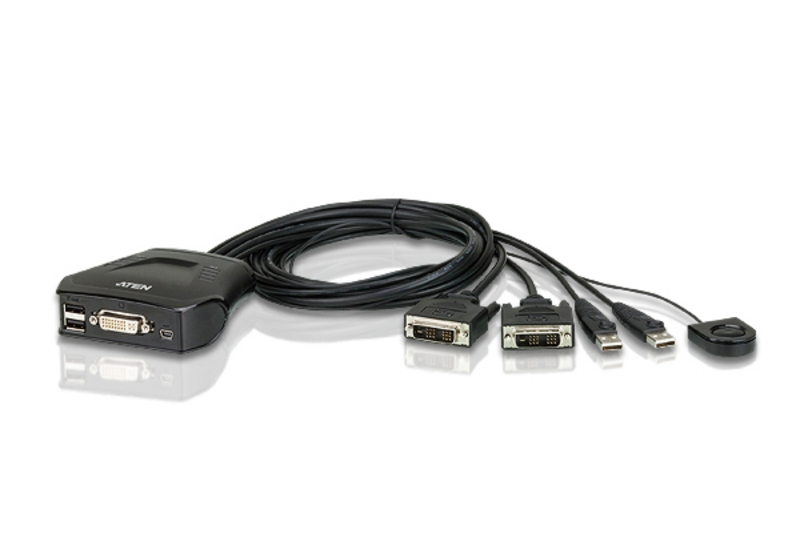

2-Port USB DVI Cable KVM Switch - [ OLD SKU: CS-22D ]


The CS22D 2-Port USB DVI KVM Switch is a control unit that allows access to two computers from a single USB and DVI console (keyboard, video and mouse). With the CS22D, you can access the computers conveniently via a Remote Port Selector.

The CS22D´s compact all-in-one design makes it ideal for multiplatform desktop applications.


One DVI-D video console controls two DVI-D USB interface computers


Computer Selection via Remote Port Selector



Os Support:
Windows 2000, Windows XP, Windows Vista, 7, Mac, Sun and Linux


Superior video quality- up to 1920 x 1200@60Hz


Supports USB hot-plugging


Non-powered


Supports USB 2.0 device

Technical Specifications

Specifications

Compatible/Used for
System Control

Product Type

Warranty
2 Years

Computer Connections
2

Dimensions (L x W x H)
9.96 x 9.36 x 3.01 cm

LEDs Selected
2 (Green)

Operating Humidity
0 - 80% RH, Non-condensing

Operating Temperature
0 - 50°C

Port Selection
Remote Port Selector

Power Consumption
5V, 2.5W

Storage Temperature
-20 - 60°C

Video Resolution

Dvi-D:
1920 x 1200 @ 60 Hz

Weight
0.34 kg

Connectors

Console Ports
2 x USB Type A Female (Black) 1 x DVI-I Female (Black) 1 x mini USB Type B Female (Black, Optional)

KVM Ports
2 x USB Type A Male (Black) 2 x DVI-D Male (Black)
