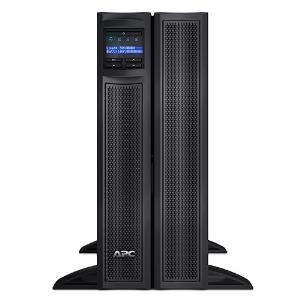

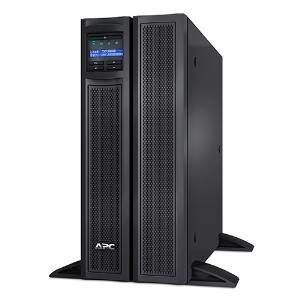

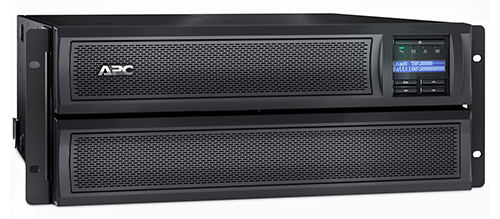

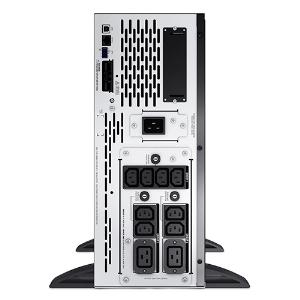

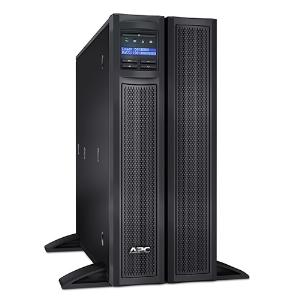

APC Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 200-240V SMX3000HV

Features

Click to view full size

Click to view full size

200-240v 3000va information power height

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)

APC/Schneider's MPN:

SMX3000HV

APC Smart-UPS X 3000VA Short Depth Tower/Rack Convertible LCD 200-240V

Backup/Run Time (Full Load): 6 Minute

Backup/Run Time (Half Load): 18 Minute

Brand Name: APC

Form Factor: Tower/Rack Mountable

Load Capacity (VA): 3000 VA

Load Capacity (Watt): 2700 W

Product Family: Smart-UPS

Product Type: Line-interactive UPS

Rack Height: 4U

Receptacles: 2 x IEC Jumper

Receptacles: 3 x IEC 60320 C19

Receptacles: 8 x IEC 60320 C13

Battery Information
Backup/Run Time (Full Load):	6 Minute
Backup/Run Time (Half Load):	18 Minute
Battery Characteristics:	Spill-proof, Maintenance-free
Battery Chemistry:	Sealed Lead Acid
Hot Swappable:	Yes
Maximum Battery Recharge Time:	3 Hour

General Information
Brand Name:	APC
Manufacturer Part Number:	SMX3000HV
Manufacturer Website Address:	http://www.apc.com
Manufacturer:	American Power Conversion Corp
Product Line:	Smart-UPS
Product Name:	Smart-UPS X 3000VA Rack/Tower LCD 200-240V
Product Type:	Line-interactive UPS

Interfaces/Ports
Serial Port:	Yes
Total Number of Expansion Slots:	1
USB:	Yes

Management
Alarm:	Configurable Delay
	Low Battery
	On Battery

Miscellaneous
Certifications & Standards:	C-tick CE CSA EN 50091-1 EN 50091-2 EN 60950 FCC Part 15 Class A GOST IRAM UL 1778 VDE UL 1449
Green Compliance Certificate/Authority:	REACH
	RoHS
Green Compliant:	Yes
Package Contents:	Smart-UPS X 3000VA Rack/Tower LCD 200-240V CD with Software Documentation CD Rack Mounting Brackets Smart UPS Signaling RS-232 Cable USB Cable User Manual

Physical Characteristics
Colour:	Black
Depth:	483 mm
Form Factor:	Tower/Rack Mountable
Height:	432 mm
Rack Height:	4U
Weight (Approximate):	38.64 kg
Width:	178 mm

Power Description
Input Voltage:	208 V AC
	230 V AC
Load Capacity (Va):	3000 VA
Load Capacity (Watt):	2700 W
Output Voltage:	230 V AC
Surge Energy Rating:	645 J
Waveform Type:	Sine Wave

Technical Information
Cord Length:	1.83 m
Emergency Power OFF:	Yes
Plug/Connector Type:	British BS1363A
	IEC 60320 C20
	SCHUKO CEE 7 EU1-16P
Receptacles:	2 x IEC Jumper
	3 x IEC 60320 C19
	8 x IEC 60320 C13

Warranty
Limited Warranty:	3 Year

Information

SKU/Item No 442162

Vendor Part No SMX3000HV

UPC/EAN Number 731304292616
