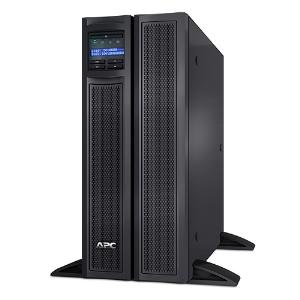

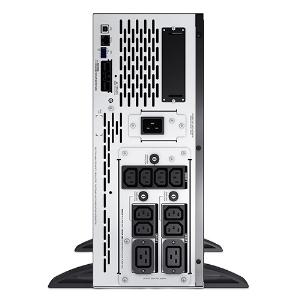

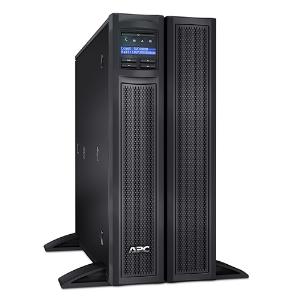

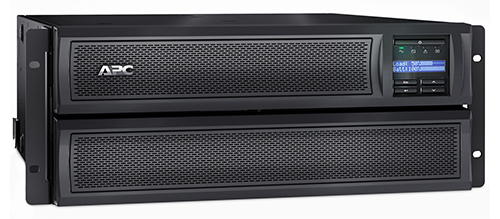

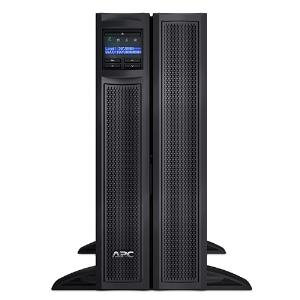

APC Smart-UPS X 2200VA Short Depth Tower/Rack Convertible LCD 200-240V SMX2200HV
Features
(Pictures are For Illustration Purposes Only)
APC/Schneider's MPN:
SMX2200HV
APC Smart-UPS X 2200VA Short Depth Tower/Rack Convertible LCD 200-240V
Backup/Run Time (Full Load) : 10 Minute
Backup/Run Time (Half Load) : 25 Minute
Brand Name : APC
Form Factor : Tower/Rack Mountable
Load Capacity (VA) : 2200 VA
Load Capacity (Watt) : 1980 W
Product Family : Smart-UPS
Product Type : Line-interactive UPS
Rack Height : 4U
Receptacles : 2 x IEC 60320 C19
Receptacles : 2 x IEC Jumper
Receptacles : 8 x IEC 60320 C13
Battery Information
Backup/Run Time (Full Load) :
10 Minute
Backup/Run Time (Half Load) :
25 Minute
Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Sealed Lead Acid
Maximum Battery Recharge Time:
3 Hour
Environmental Conditions
Sound Emission:
55 dB(A)
Temperature:
-45°C
Thermal Dissipation:
150 BTU/h
General Information
Brand Name:
APC
Manufacturer Part Number:
SMX2200HV
Manufacturer Website Address:
http://www.apc.com
Manufacturer:
American Power Conversion Corp
Marketing Information:
Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.
Product Line:
Smart-UPS
Product Name:
Smart-UPS X 2200VA Rack/Tower LCD 200-240V
Product Type:
Line-interactive UPS
Interfaces/Ports
Total Number of Expansion Slots:
1
USB:
Yes
Management
Alarm:
Configurable Delay
Low Battery
On Battery
Miscellaneous
Certifications & Standards:
C-tick
CE
CSA
EN 50091-1
EN 50091-2
FCC Part 15 Class A
GOST
IEC 60950
IRAM
UL 1778
VDE
UL 1449
Green Compliance Certificate/Authority:
RoHS
Green Compliant:
Yes
Package Contents:
Smart-UPS X 2200VA Rack/Tower LCD 200-240V
CD with Software
Rack Mounting brackets
Smart Signal Cable UPS RS-232
USB cable
User Manual
Physical Characteristics
Colour:
Black
Depth:
483 mm
Form Factor:
Tower/Rack Mountable
Height:
432 mm
Rack Height:
4U
Weight (Approximate) :
17.53 kg
Width:
178 mm
Power Description
Input Voltage:
220 V AC
Load Capacity (Va) :
2200 VA
Load Capacity (Watt) :
1980 W
Output Voltage:
220 V AC
Surge Energy Rating:
645 J
Waveform Type:
Sine Wave
Technical Information
Cord Length:
1.83 m
Emergency Power OFF:
Yes
Plug/Connector Type:
British BS1363A
IEC 60320 C20
SCHUKO CEE 7 EU1-16P
Receptacles:
2 x IEC 60320 C19
2 x IEC Jumper
8 x IEC 60320 C13
Warranty
Limited Warranty:
3 Year
