4 Port USB Sharing Device - [ Old SKU: US-424 ] US424-AT
Features
(Pictures are For Illustration Purposes Only)
Aten/Altusen's MPN:
US424-AT
4 Port Usb Sharing Device - [ Old Sku :
US-424 ]

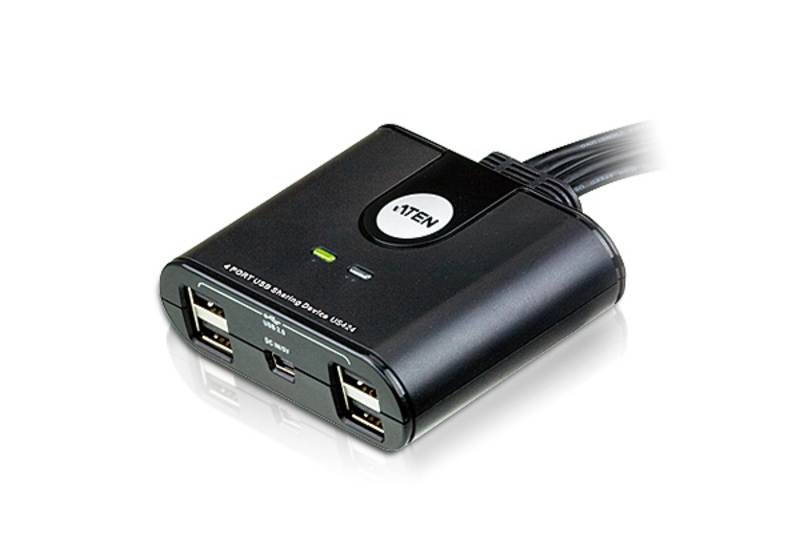

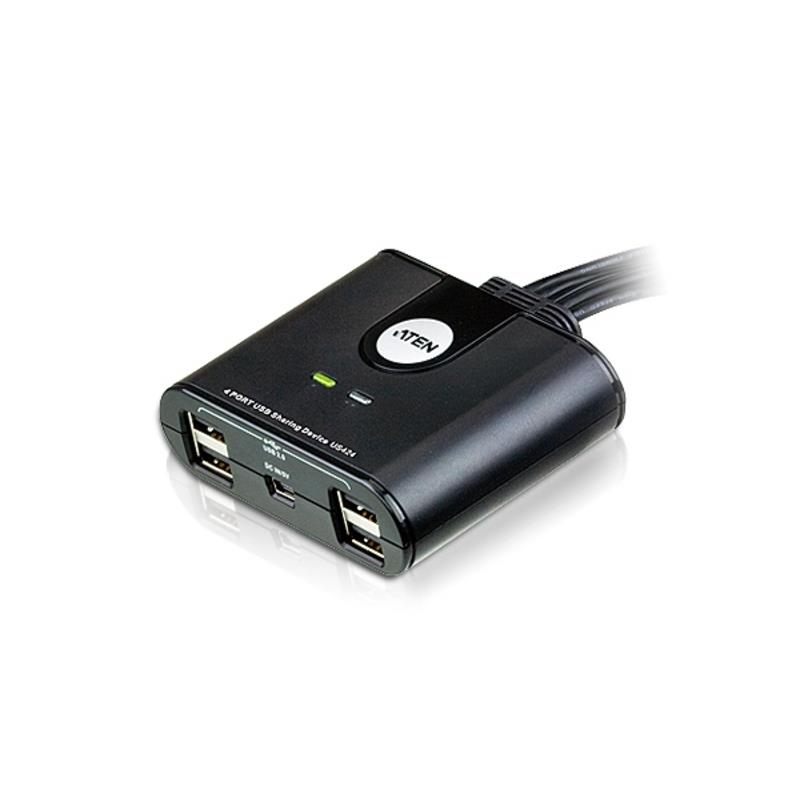

Aten 4 Port USB 2.0 Peripheral Sharing Switch
The US424 is a 4-port USB peripheral sharing device that enables 4 computers to share the use of 4 USB devices – a keyboard, mouse and up to two peripheral devices. It eliminates the added expense of having a separate USB keyboard, mouse and peripheral device(s) for each computer. The US424 all-in-one design allows for a neat and tidy installation – no need to connect 4 separate USB cables to the computer, thus eliminating cable clutter.
For extra convenience, it features an external remote port selector that can simplify desktop layout, and select which computer needs to use the USB devices. US424 is the ideal way to share USB peripherals in a multimedia office environment.
4 built in USB ports – all-in-one design allows for a neat and tidy installation that reduces cable clutter
Enables 4 computers to share 4 USB devices – a USB keyboard, mouse and up to two peripheral devices
Simple port selection via remote port selector for convenient switch placement
USB 2.0 compliant
Multiplatform support – Windows, Linux , Mac and Sun
LED indicators display port focus
Overcurrent protection
Non-powered (supports optional USB power adapter)
Hot pluggable
Technical Specifications
Specifications
Compatible/Used for
Product Type
4 port USB sharing device
Warranty
2 Years
Computer Connections
4
LEDs Selected
2 (Green / Orange)
Port Selection
Remote port selector
Cable Length
Remote Port Selector
1.8 m
USB Cable
2 x 1.2 m / 2 x 1.8 m
Connectors
Computer
4 x USB Type A Male (Black)
Device
4 x USB Type A Female (Black)
Power (Optional)
1 x USB mini B Female (Black)
Environmental
Operating Humidity
0–80% RH, Non-condensing
Operating Temperature
0–40°C
Storage Temperature
-20–60°C
Physical Properties
Dimensions (L x W x H)
8.24 x 6.65 x 2.53 cm
Housing
Plastic
Weight
0.22 kg
