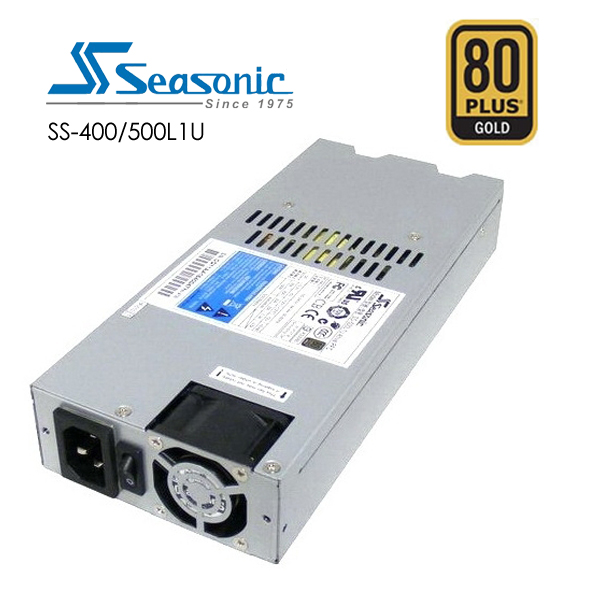

Seasonic 500W Active Pfc F3 1U PSU (SS-500L1U) PSUSEA500L1U80G

PSUSEA500L1U80G

Switch Mode Power Supply - Intel EPS 12V- SS-400/500L1U Active PFC

Features:

• Specification compliance: Intel EPS 12V
• DC to DC converter design
• High efficiency and reliability
• Low THD
• Low ripple & noise
• Super low noise fan control
• Short circuit protection on all outputs
• Over voltage protection
• Over power protection
• 100% hi-pot test
• 100% burn in, high temperature cycled on/off

DC Outputs:

• Model: SS-500L1U Active PFC
• DC Outputs:

+3.3V	+5V	+12V(Combined)	-12V	+5Vsb
20A	20A	40A	0.3A	2.5A
100W*		480W	3.6W	12.5W

(Remarks: * Combined +3.3VDC & +5V DC maximum power)

• Total Power: 500W
• Input Type: Full range

Electrical Specifications:

• Input frequency: 47/63 Hz
• Inrush current, cold start: 100A max.
• Efficiency, at normal input voltage: > 87%
• Line regulation: +/-1% typical
• Load regulation: +/-5% typical
• Cross regulation: +/-5% typical
• Ripple / noise: 1%
• MTBF, full load @ 25℃ amb. : >100K hours (Excluding the DC fan)
• Power Factor Correction: Active PFC 99% typical

Certifications:

• Satety: CUL, UV, CB
• EMC: CE, Fcc, C-Tick

Specifications:

• Dimension: L235 x W100 x H40mm
• Connectors: Customized modular cables
