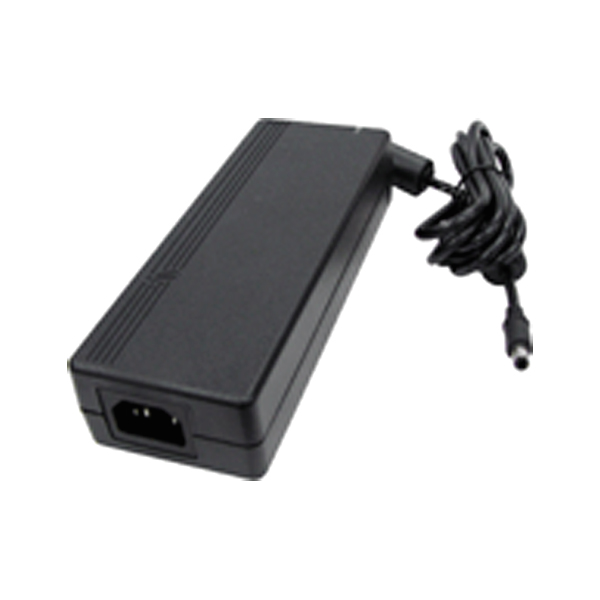

Seasonic Wall Mount Switching Adapter (SSA-1201-24) PSUSEASSA-1201-24

Features
psuseassa-1201-24 input protection efficiency over
Click to view full size
current load ssa-1201-24 voltage output
Click to view full size

(Pictures are For Illustration Purposes Only)

Seasonic

Seasonic's MPN:

PSUSEASSA-1201-24




Features:

  • Universal input
  • Japanese Capacitor
  • High efficiency 87%
  • Meet CEC Level V, ErP Lot 7, Energy Star EPS2.0
  • Over voltage protection
  • Over current protection
  • Short circuit protection
  • Over Thermal protection
  • No load consumption≦0.5W


Output Specifications:

Model

Output power

Min. Load

Max. Load

Total power

Efficiency


SSA-1201-24


24V


0A


5


120W


87%


Dimension:

  • L174 × W65 × H37 mm (L6.85 × W2.56 × H1.46 inch)


    • General Specifications:

    • Input voltage range: 90~264 Vac
    • Input frequency: 47~63 Hz
    • Input current: 2A (rms)
    • Efficiency: ≧87% Average
    • Leakage current: 3.5mAa max.


    Safety:


    Safety


    EMI/EMC


    CEC


    CB


    CUL


    UL


    CCC


    DEMKO


    FIMKO


    NEMKO


    SEMKO


    TUV


    cTUVus


    VDE


    PSE


    BSMI


    C-tick


    CE


    FCC


    V


    V


    V





    V














    V








    V


    V


    V


    V


    V

    • (V = certificate ready ; P = certificate pending; V * = not apply to all models )
