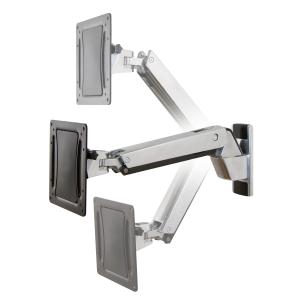

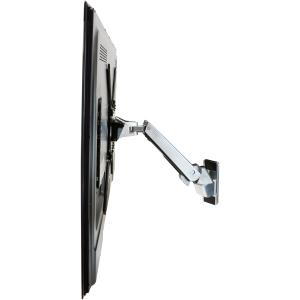

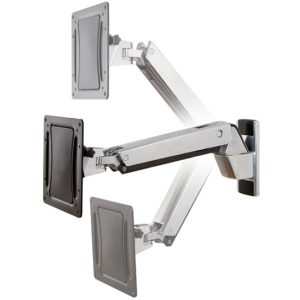

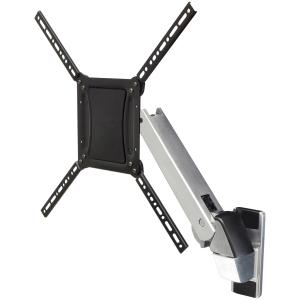

Ergotron Heavy Duty Interactive Arm LCD Wall Mount Polished Aluminium Max LCD Size 60" Max Weight 18.2KG 45-296-026
Features
(Pictures are For Illustration Purposes Only)
Ergotron's MPN:
45-296-026
HEAVY DUTY INTERACTIVE ARM LCD WALL MOUNT POLISHED ALUMINIUM MAX LCD SIZE 60IN MAX WEIGHT 18.2KG
Brand Name : Ergotron
Device Supported : Flat Panel Display
Maximum Load Capacity : 18.14 kg
Maximum Screen Size Supported : 139.7 cm (55")
Product Type : Mounting Arm
VESA Mount Standard : 200 x 100
VESA Mount Standard : 200 x 400
General Information
Brand Name:
Ergotron
Manufacturer Part Number:
45-296-026
Manufacturer Website Address:
http://www.ergotron.com
Manufacturer:
Ergotron, Inc
Marketing Information:
Accommodate the active TV positioning needs of today and tomorrow. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 17.5-inch (45 cm) motion adjustment to either side.
Now anyone can effortlessly move their TV into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.
Product Name:
HD Interactive Arm
Product Type:
Mounting Arm
Miscellaneous
Additional Information:
Lift: 20"
Tilt: 25°
Pan: 180°
Rotation: 10°
Patented Constant Force technology enables light-touch adjustments
Extends 24" from wall when in use and can be fully retracted to 5.5" when not in use
Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions
Gravity pivot enables tilting capabilities without the need of knobs or levers
Improves ergonomic viewing for TVs/displays mounted high on the wall
Tilt and pan for maximum viewing flexibility
Level the screen at any position with +/- 5º of post-installation rotation
Cable management clips on the underside of the arm route and hide wires
Easy to use: simple installation and effortless operation
Compatibility:
LCD Screen
Physical Characteristics
Colour:
Black
Polished Aluminum
VESA Mount Compatible:
Yes
VESA Mount Standard:
200 x 100
200 x 400
Product Information
Device Supported:
Flat Panel Display
Features:
Cable Management
Pan
Swivel
Tilt
Maximum Load Capacity:
18.14 kg
Maximum Screen Size Supported:
139.7 cm (55")
Minimum Screen Size Supported:
76.2 cm (30")
