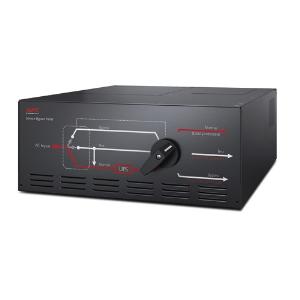

APC Service Bypass Panel 230V125 A HW Input IEC-320 Output SBP20KRMI4U

Features

Click to view full size

current smart-ups service manufacturer information

Click to view full size

(Pictures are For Illustration Purposes Only)

APC/Schneider's MPN:

SBP20KRMI4U

APC SERVICE BYPASS PANEL 230V125 A HW INPUT IEC-320 OUTPUT

Brand Name: APC

Load Capacity: 20 kVA

Product Type: Bypass Panel

General Information
Brand Name:	APC
Manufacturer Part Number:	SBP20KRMI4U
Manufacturer Website Address:	http://www.apc.com
Manufacturer:	American Power Conversion Corp
Marketing Information:	Smart-UPS accessories include various backplate PDU options, external standard and switched PDU options, matching battery cabinets for extending run time(Smart-UPS XL only), management devices, service products and mounting options. These accessories can customize your solution to increase availability, adaptability, serviceability, manageability and performance.
Product Name:	Service Bypass Panel
Product Type:	Bypass Panel

Miscellaneous
Certifications & Standards:	CSA EN 60950 GOST IEC 60950 UL 1778
Compatibility:	APC Smart-UPS
Green Compliance Certificate/Authority:	REACH
	RoHS
Green Compliant:	Yes
Package Contents:	Smart-UPS Bypass Panel Installation Guide Rack Mounting Brackets User Manual

Physical Characteristics
Colour:	Black
Depth:	572 mm
Form Factor:	Rack-mountable
Height:	178 mm
Weight (Approximate):	18.78 kg
Width:	432 mm

Power Description
Current:	125 A Input Current Per Phase
	125 A Line Current Per Phase
	125 A Total Current Draw Per Phase
Frequency:	50 Hz
Input Voltage Range:	230 V ACNominal
	240 V ACNominal
	380 V AC3-phase Nominal
	400 V AC3-phase Nominal
Input Voltage:	220 V AC
Load Capacity:	20 kVA
Output Voltage:	230 V AC Nominal

Technical Information
Plug/Connector Type:	Hard Wire 3-wire 1PH+N+G
	Hard Wire 5-wire 3PH + N + G
Protection Type:	Overload

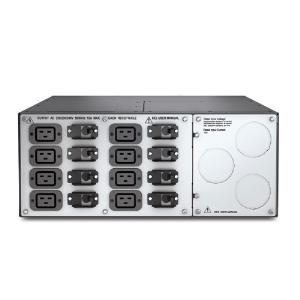

Receptacles:	8 x IEC 60320 C19

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 279498

Vendor Part No SBP20KRMI4U

UPC/EAN Number 731304266969
