Aten 4 Port USB Dual-Link DVI Kvmp Switch w/ USB Hub, - Cables Included CS1784A-AT-U

Features

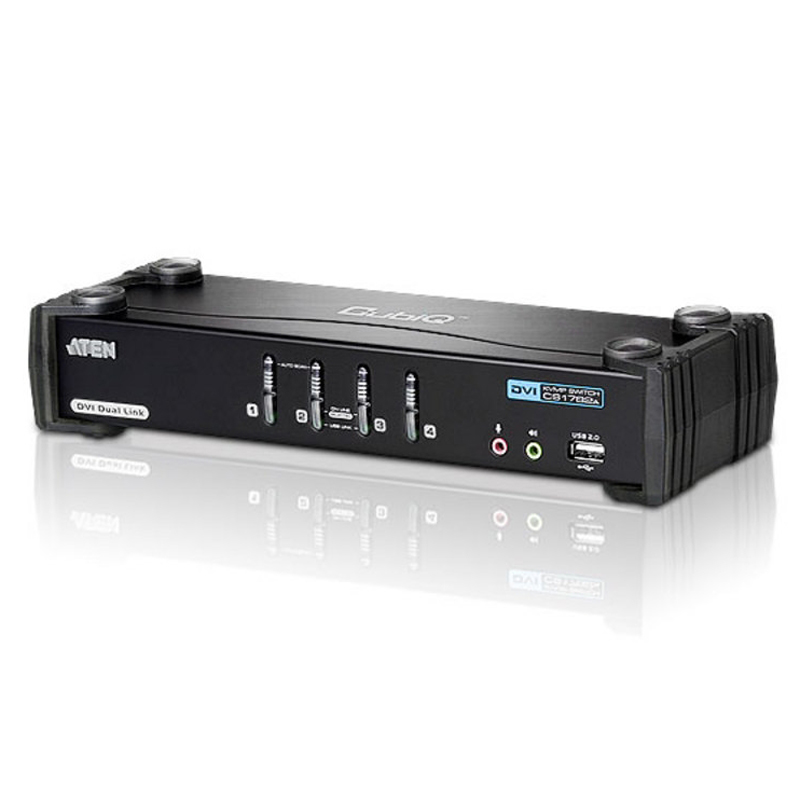

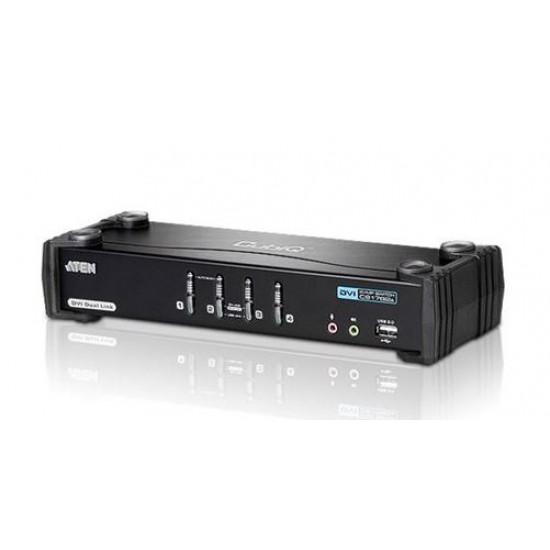

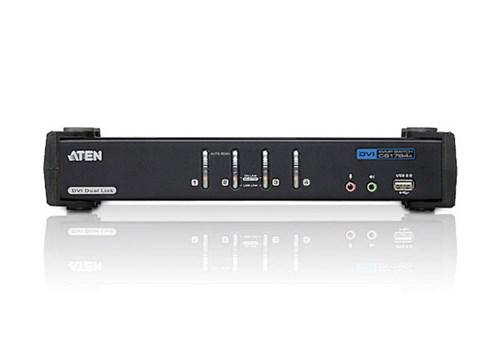

Click to view full size

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)

Aten/Altusen's MPN:

CS1784A-AT-U

4 PORT USB DVI DUAL LINK KVMP SWITCH. Support HDCP, Video DynaSync, Dual Link, 2.1 Audio, Mouse/Keyboard emulation - [ OLD SKU: CS-1784A ]

The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such asnVidia 3D Vsion ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.

4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio

One USB console controls four computers and two additional USB devices

2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification

Full bass response for high quality 2.1 channel surround sound systems

Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!

Multiplatform support – Windows, Linux, Mac, and Sun*

Independent switching of KVM, USB, and Audio focus

DVI digital and analog monitor support – fully compliant with the DVI specifications

Superior Video Quality:
1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)

Nvidia 3D Vision Ready:
Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080

HDCP compatible

Support widescreen resolutions

Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports

Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!

Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice

Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!

Complete keyboard emulation for error-free booting

Mac/Sun keyboard support and emulation*

Multilingual keyboard mapping – supports English, Japanese, and French keyboards

Auto Scan Mode for monitoring all computers

Firmware upgradable

* PC keyboard combinations emulate Mac/Sun keyboards

Mac/Sun keyboard work only with their own

Package Contents

1x CS1784A USB DVI Dual Link KVMP™ Switch

4x Custom DVI-D KVM Cable Sets

1x Power Adapter

1x User Instructions

Technical Specifications

Specifications
Compatible/Used for
Type
Warranty

Specifications

Compatible/Used for

Type

Warranty

Computer Connections
	4

Computer Connections

Connectors
Console Ports	2 x USB Type A Female (Black; rear panel) 1 x DVI-I Female (White) 1 x USB Type A Female (Black; rear panel) 2 x Mini Stereo Jack Female (Green; 1 x front panel, 1 x rear panel) 2 x Mini Stereo Jack Female (Pink; 1 x front panel, 1 x rear panel)
KVM Ports	4 x USB Type B Female (White) 4 x DVI-I Female (White) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink)
Power	1 x DC Jack
USB Hub	2 x USB Type A Female (White; 1 x front panel, 1 x rear panel)

Connectors

Console Ports

2 x USB Type A Female (Black; rear panel) 1 x DVI-I Female (White) 1 x USB Type A Female (Black; rear panel) 2 x Mini Stereo Jack Female (Green; 1 x front panel, 1 x rear panel) 2 x Mini Stereo Jack Female (Pink; 1 x front panel, 1 x rear panel)

KVM Ports

4 x USB Type B Female (White) 4 x DVI-I Female (White) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink)

Power

1 x DC Jack

USB Hub

2 x USB Type A Female (White; 1 x front panel, 1 x rear panel)

Emulation
Keyboard / Mouse	USB

Emulation

Keyboard / Mouse

USB

Environmental
Humidity	0–80% RH, Non-condensing
Operating Temperature	0 -50°C
Storage Temperature	-20-60°C

Environmental

Humidity

0–80% RH, Non-condensing

Operating Temperature

0 -50°C

Storage Temperature

-20-60°C

LEDs
On Line /Selected	4 (Orange)
USB Link	4 (Green)

LEDs

On Line /Selected

4 (Orange)

USB Link

4 (Green)

Physical Properties
Dimensions (L x W x H)	27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
Housing	Metal
Weight	0.93 kg ( 2.05 lb )

Physical Properties

Dimensions (L x W x H)

27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)

Housing

Metal

Weight

0.93 kg ( 2.05 lb )

Port Selection
	Hotkey, Pushbutton, Mouse

Port Selection

Hotkey, Pushbutton, Mouse

Power Consumption
	DC 5.3V, 10 W

Power Consumption

DC 5.3V, 10 W

Scan Interval
	1–99 Seconds (Default: 5 secs)

Scan Interval

1–99 Seconds (Default:
5 secs)

Switches
Power Selected	4 x Pushbutton

Switches

Power Selected

4 x Pushbutton

Video
	Dvi Dual Link: 2560 x 1600; DVI Single Link: 1920 x 1200

Video

Dvi Dual Link:
2560 x 1600; DVI Single Link: 1920 x 1200

Warranty
	2 Years

Warranty

2 Years

Information

SKU/Item No 277956

Vendor Part No CS1784A-AT-U

UPC/EAN Number

Our Stock ** (click for more info)

Price

$438.37
