Schneider APC Symmetra PX Power Module 10/16KW 400V SYPM10K16H

Features

Click to view full size

Click to view full size

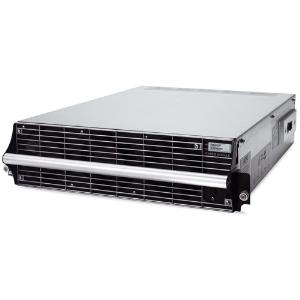

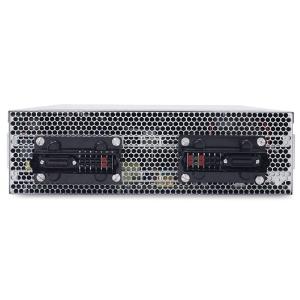

(Pictures are For Illustration Purposes Only)

APC/Schneider's MPN:

SYPM10K16H

APC SYMMETRA PX POWER MODULE 10/16KW 400V

Basic Specification
Marketing Text:	This power module is backward compatible with the SYPM10KH module and will autodetect to deliver only 10kW of power protection if installed in a PX80kW, 40KW or 20kW all-in-one.

DEVICE FEATURES
Input Connection:	1 x Hard Wire 5-Wire
Input Frequency:	40 - 70 Hz
Input Voltage:	400 Volt
Output Connections:	1 x Hard Wire 5-Wire
Output Voltage:	230 Volt

DIMENSION
Depth (Mm):	700.0
Height (Mm):	132.0
Weight (Kg):	28.5
Width (Mm):	483.0

OTHER FEATURES
Operating Temperature:	0 to 40 °C
Other Features:	* Input Connections Hard Wire 5-wire (3PH + N + G) * Output Connections (1) Hard Wire 5-wire (3PH + N + G) * Maximum Input Current 33A

PRODUCT
Brand Name:	APC
Manufacturer Web Site:	http://www.apc.com
Product Line:	Symmetra
Product Type:	Power Module

Information

SKU/Item No 275904

Vendor Part No SYPM10K16H

UPC/EAN Number 731304252153

Our Stock ** (click for more info)

Price

$11,123.83
