Aten/Altusen's MPN:
CS84U-AT
4 PORT USB & PS/2 VGA KVM SWITCH. Support Video DynaSync, Mouse emulation, Keyboard emulation - [ OLD SKU: CS-84U ]

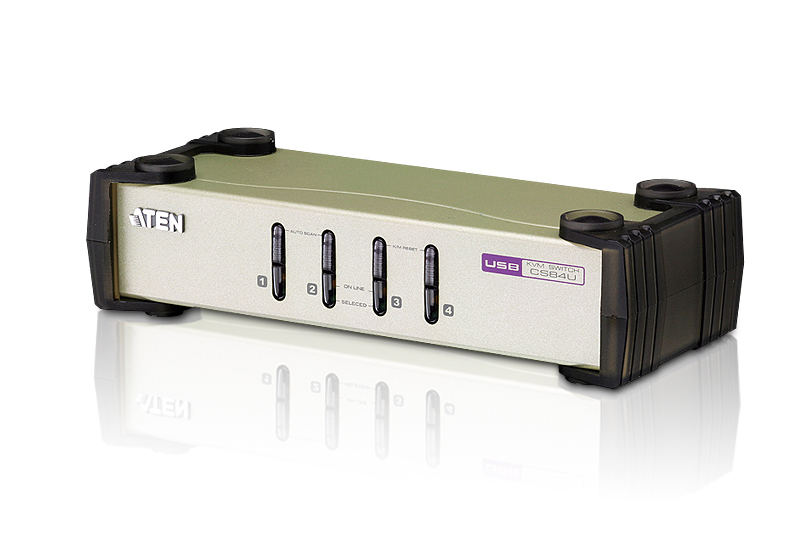

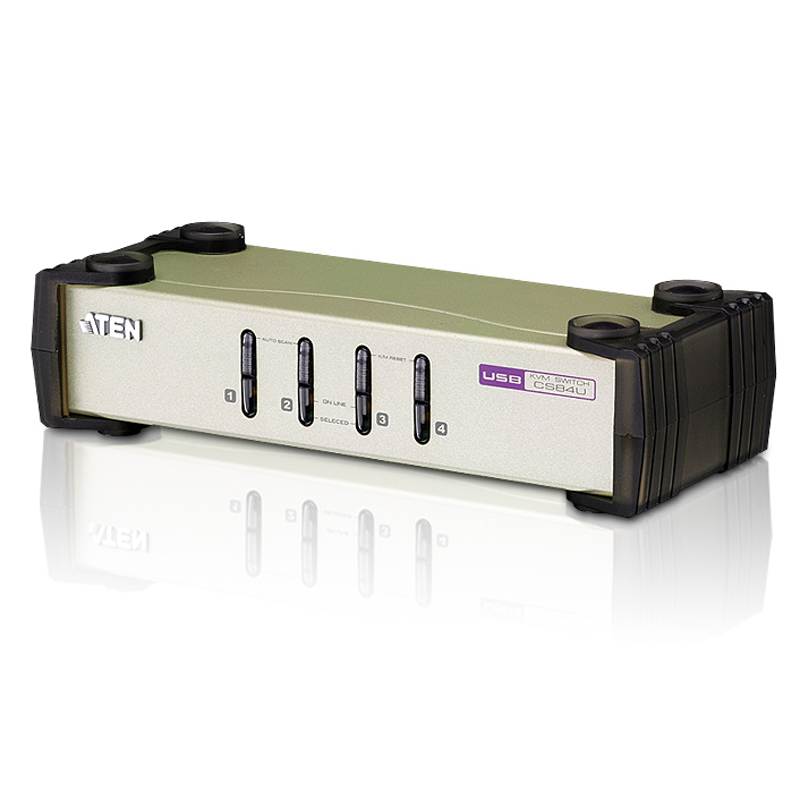

The CS84U PS/2-USB KVM Switch is a desktop control unit that allows users to access four computers from a single KVM console (PS/2 or USB keyboard and mouse, and VGA monitor). In addition, CS84U comes with ATEN's new Video DynaSync™ technology, which eliminates boot-up display problems and optimizes resolution.
Setup is fast and easy; simply plug cables into their appropriate ports. There is no software to configure, no installation routines, and no incompatibility problems. Since the CS84U intercepts keyboard input directly, it will work on multiple computing platforms
One PS/2-USB VGA console controls four VGA interface computers.
Dual Interface - supports computers with PS/2 or USB keyboards and mice
Computer selection via front panel pushbuttons, hotkeys, and mouse
Multiplatform support - Windows, Linux, Mac, and Sun
Superior video quality - 2048 x 1536; DDC2B
Video DynaSync™ - Exclusive ATEN technology eliminates bootup display problems and optimizes resolution when switching between ports
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation*
Multilingual keyboard mapping - supports English, Japanese, and French keyboards
Gaming keyboard support
Auto Scan Mode for monitoring all computers
Firmware upgradable
Non-powered
* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboard work only with their own computers
CS-84U
Technical Specifications
Specifications
Compatible/Used for
|
System Control
|
Product Type
|
|
Warranty
|
2 Years
|
Computer Connections
|
4
|
Port Selection
|
Hotkey, Pushbutton, USB Mouse
|
Power Consumption
|
DC 5V, 1.2W
|
Scan Interval
|
3, 5, 10, 20 secs. (5 secs. default)
|
Video
|
2048 x 1536 @ 60 Hz; DDC2B
|
Connectors
Console Ports
|
2 x USB Type A Female (Black) 1 x 6-pin Mini-DIN Female (Purple) 1 x 6-pin Mini-DIN Female (Green) 1 x HDB-15 Female (Blue)
|
KVM Ports
|
4 x SPHD-18 Female (Yellow)
|
Power
|
1 x DC Jack
|
Emulation
Keyboard / Mouse
|
PS/2, USB
|
Environmental
Humidity
|
0-80% RH, Non-condensing
|
Operating Temperature
|
0 - 50°C
|
Storage Temperature
|
-20 - 60°C
|
LEDs
Online
|
4 (Orange)
|
Selected
|
4 (Green)
|
Physical Properties
Dimensions (L x W x H)
|
21.00 x 8.80 x 5.55 cm (8.27 x 3.46 x 2.19 in.)
|
Housing
|
Metal
|
Weight
|
0.77 kg ( 1.7 lb )
|
