2 Port USB 2.0 HDMI / Audio Kvmp Switch Support HDCP, Video DynaSync, Mouse emulation, Keyboard emulation - [ Old SKU: CS-1792 ] CS1792-AT-U

Features

Aten/Altusen

Aten/Altusen's MPN:

CS1792-AT-U

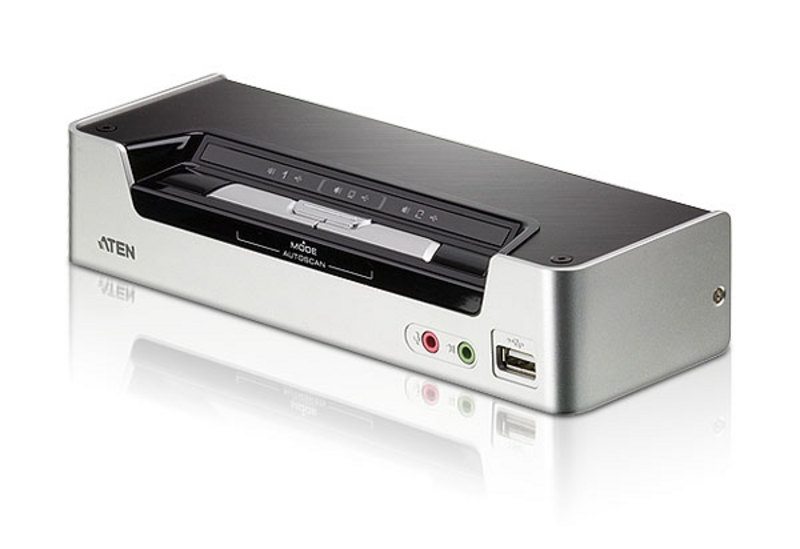

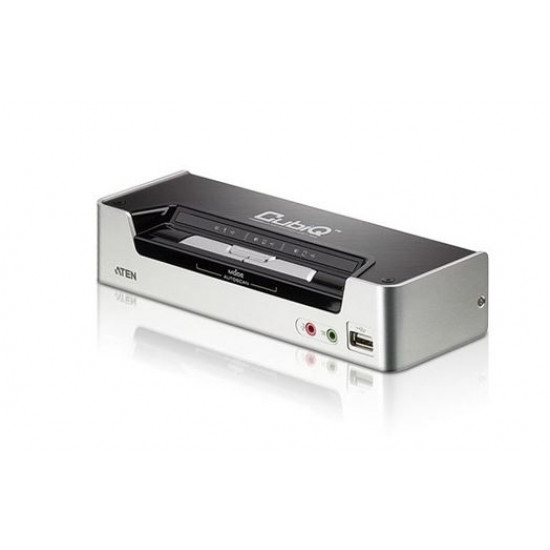

2 Port USB 2.0 HDMI / Audio KVMP Switch Support HDCP, Video DynaSync, Mouse emulation, Keyboard emulation - [ OLD SKU: CS-1792 ]


With its unique design and innovative features, the CubiQ™ CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console.



The CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio.


Ideal for multimedia applications in the home or office, the CubiQ™ CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.



2-port HDMI USB 2.0 KVMP™ Switch


One USB console controls two HDMI-interface computers and two additional USB devices


2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification


Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys


HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant


Dolby True HD and DTS HD Master Audio support


Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)


Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer


Supports widescreen resolutions


Multiplatform support - Windows, Linux, and Mac


Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice


Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution


Complete keyboard emulation for error-free booting


Mac keyboard support and emulation*


Auto Scan Mode for monitoring all computers and HDMI devices


Firmware Upgradable



1. PC keyboard combinations emulate Mac Keyboards


 2. Mac keyboards only work with their own computers


Technical Specifications

Specifications

Compatible/Used for
System Control

Product Type

Warranty
2 Years

Computer Connections
2

Emulation
USB Keyboard / Mouse

Port Selection
Hotkey, Pushbutton

Power Consumption
DC 5.3 V, 3.2 W

Scan Interval

1-99 Seconds (Default:
5 sec.)

Switches
3 x Pushbutton

Video
1080p / 1920 x 1200 (DVI)

Connectors

Console Ports
2 x USB Type A Female (Black; rear panel) 1 x HDMI Type A Female (Black) 2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear) 2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear)

Firmware Upgrade
1 x 4-conductor 3.5mm Jack (Black)

KVM Ports
2 x USB Type B Female (White) 2 x HDMI Type A Female (Black) 2 x Mini Stereo Jack Female (Green) 2 x Mini Stereo Jack Female (Pink)

Power
1 x DC Jack

USB Hub
2 x USB Type A Female (White; 1 x front panel; 1 x rear panel)

Environmental

Humidity
0-80% RH, Non-condensing

Operating Temperature
0-50°C

Storage Temperature
-20-60°C

LEDs

Audio / KVM / USB
3 (Green) / 3 (Orange) / 3 (Green)

Physical Properties

Dimensions (L x W x H)
20.63 x 7.24 x 4.40 cm

Housing
Metal, Plastic

Weight
0.42 kg ( 0.93 lb )
