Aten/Altusen's MPN:
CS1764A-AT-U
Aten 4 Port USB 2.0 DVI KVMP Switch, supports up to 1920 x 1200 @ 60 Hz, Video DynaSync, 3.5mm audio, mouse and keyboard emulation, 4 DVI USB KVM Cabl

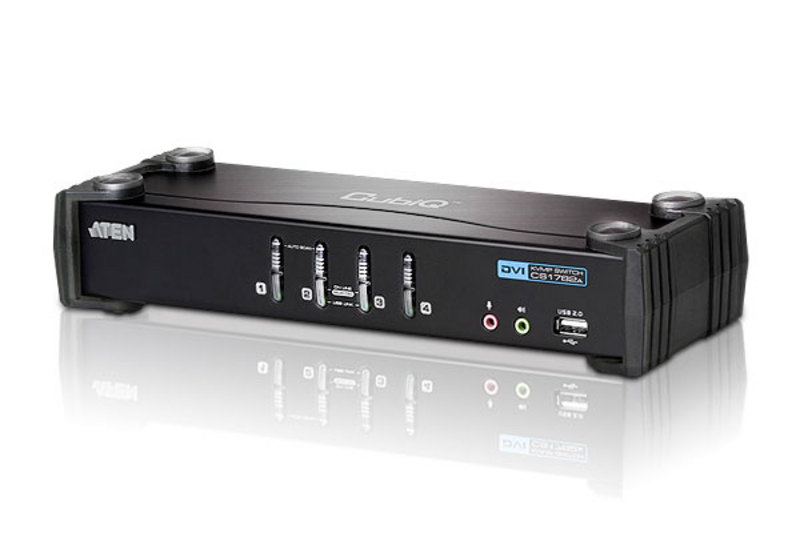

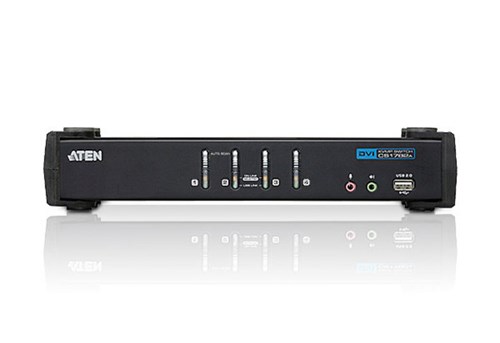

The CubiQ™ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1764A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.

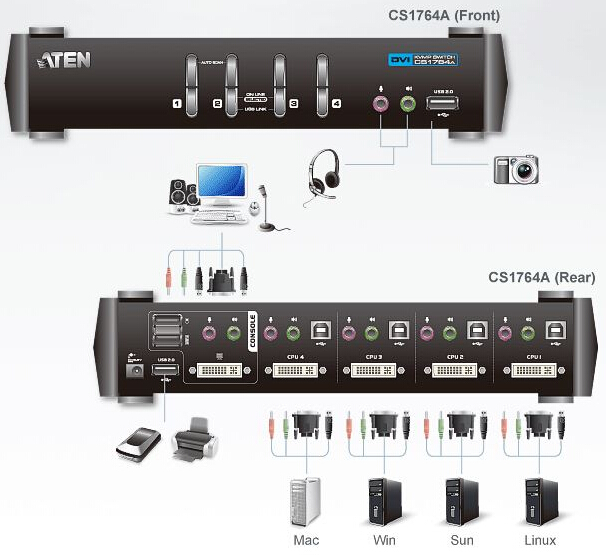

As a KVM switch, it allows users to access four computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
One USB console controls four DVI computers and two additional USB 2.0 devices
2-port USB 2.0 hub built in
Fully compliant with the USB 2.0 specification
Computer selection via front panel pushbuttons and hotkeys
Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
Multiplatform support - Windows, Linux, Mac and Sun
Superior video quality - 1920 x 1200, 60Hz; DDC2B
Independent switching of KVM, USB, and Audio focus
DVI digital and analog monitor support - fully compliant with the DVI specifications
HDCP compliant
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Sun /Mac keyboard support and emulation*
Auto Scan Mode for monitoring all computers
Firmware upgradable via USB
1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computer
Technical Specifications
Specifications
Compatible/Used for
|
|
Product Type
|
|
Warranty
|
|
Connectors
Console Ports
|
2 x USB Type A Female (White; front panel) 1 x DVI-I Female (White) 2 x Mini Stereo Jack Female (Green; 1 x front panel; 1 x rear panel) 2 x Mini Stereo Jack Female (Pink; 1 x front panel; 1 x rear panel)
|
KVM Ports
|
4 x USB Type B Female (White) 4 x DVI-I Female (White) 4 x Mini Stereo Jack Female (Green) 4 x Mini Stereo Jack Female (Pink)
|
Power
|
1 x DC Jack
|
USB Hub
|
USB Hub
|
Environmental
Humidity
|
0-80% RH, Non-condensing
|
Operating Temperature
|
0 - 50°C
|
Storage Temperature
|
-20 - 60°C
|
LEDs
On Line /Selected
|
4 (Orange)
|
USB Link
|
4 (Green)
|
Physical Properties
Dimensions (L x W x H)
|
27.00 x 8.80 x 5.55 cm (10.63 x 3.46 x 2.19 in.)
|
Housing
|
Metal
|
Weight
|
0.94 kg ( 2.07 lb )
|
Port Selection
|
Hotkey, Pushbutton, Mouse
|
Scan Interval
|
1–99 Seconds (Default:
5 sec.)
|
