Aten/Altusen's MPN:
CS1316-AT-U
16 PORT PS/2 USB VGA KVMP SWITCH. RACK MOUNTABLE. Support Video DynaSync, Mouse emulation, Keyboard emulation - [ OLD SKU: CS-1316 ]

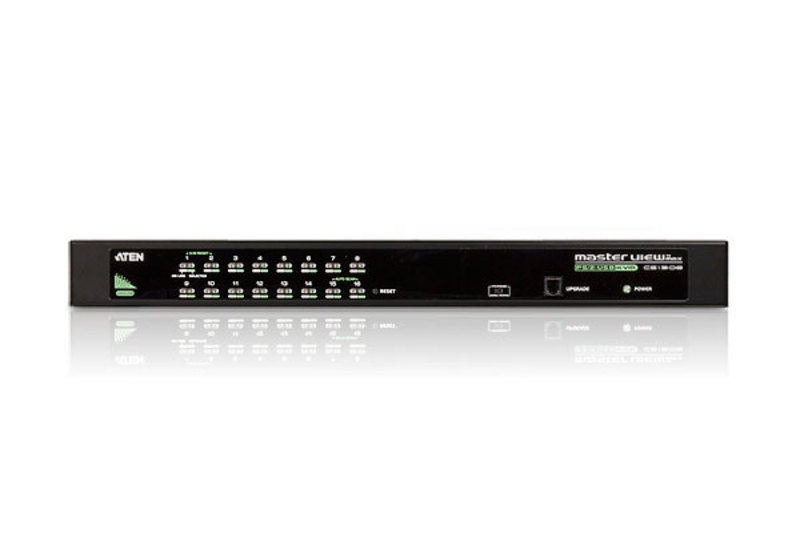

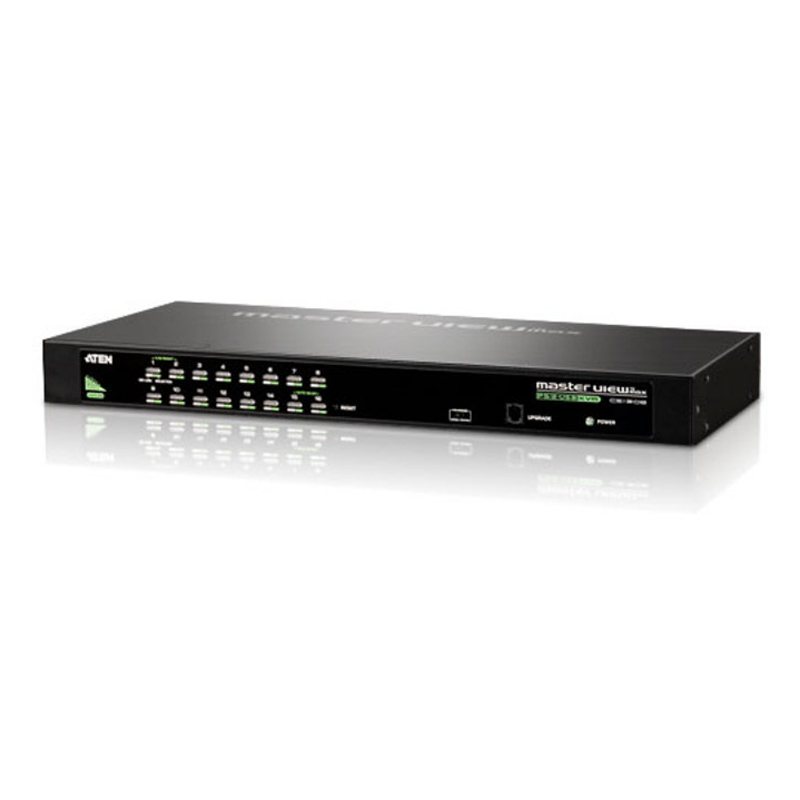

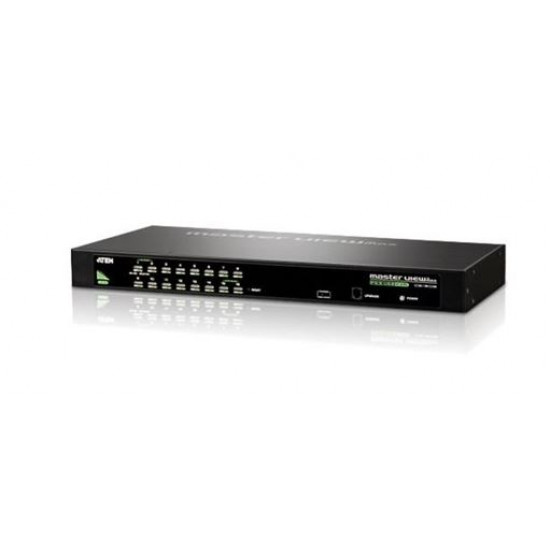

The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.
One USB-PS/2 console controls 16 computers
Cascade up to 2 levels - control up to 256 computers
Dual Interface - supports computers with PS/2 or USB keyboards and mice
Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Auto PS/2 and USB interface detection
USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
Superior video quality - up to 2048 x 1536; DDC2B
Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
Auto Scan feature for monitoring user-selected computers
Hot pluggable - add or remove computers without having to power down the switch
Buzzer on/off via hotkey and OSD
Firmware upgradeable
No software installation required
Designed for desktop or rack mount (19" system rack, 1U)
Package Contents:
1x CS1316 KVM Switch with Rack Mount Kit
1x Console cable
1x Firmware Upgrade cable
1x Foot Pad set (4 pads)
1x Power Adapter
1x Mounting Kit
1x User Instructions
Technical Specifications
Specifications
Compatible/Used for
|
System Control
|
Type
|
KVM Switch
|
Warranty
|
2 Years
|
Port Selection
|
OSD, Hotkey, Pushbutton
|
Power Consumption
|
DC 5.3 V; 6.6 W
|
Scan Interval
|
1-255 Seconds
|
Video
|
2048 x 1536; DDC2B
|
Computer Connections
Direct
|
16
|
Maximum
|
256 (via Cascade)
|
Connectors
Console Ports
|
1 x SPHD-18 Male (Yellow)
|
Firmware Upgrade
|
1 x RJ-11 Female (Black)
|
KVM Ports
|
16 x SPHD-15 Female (Yellow)
|
Power
|
1 x DC Jack
|
Emulation
Keyboard / Mouse
|
PS/2, USB
|
Environmental
Humidity
|
0-80% RH, Non-condensing
|
Operating Temperature
|
0-50°C
|
Storage Temperature
|
-20-60°C
|
LEDs
Online
|
16 (Orange)
|
Power
|
1 (Dark Green)
|
Selected
|
16 (Green)
|
Physical Properties
Dimensions (L x W x H)
|
43.72 x 16.13 x 4.40 cm (17.21 x 6.35 x 1.73 in.)
|
Housing
|
Metal
|
Weight
|
2.10 kg ( 4.63 lb )
|
Switches
Firmware Upgrade
|
1 x Slide
|
Ports
|
16 x Pushbutton
|
