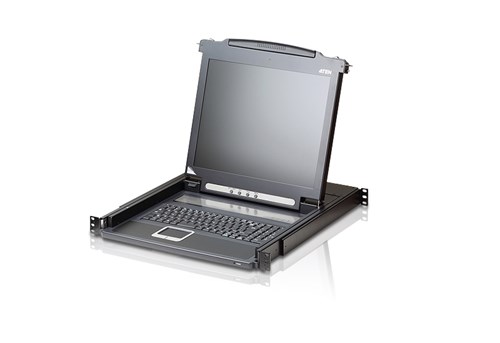

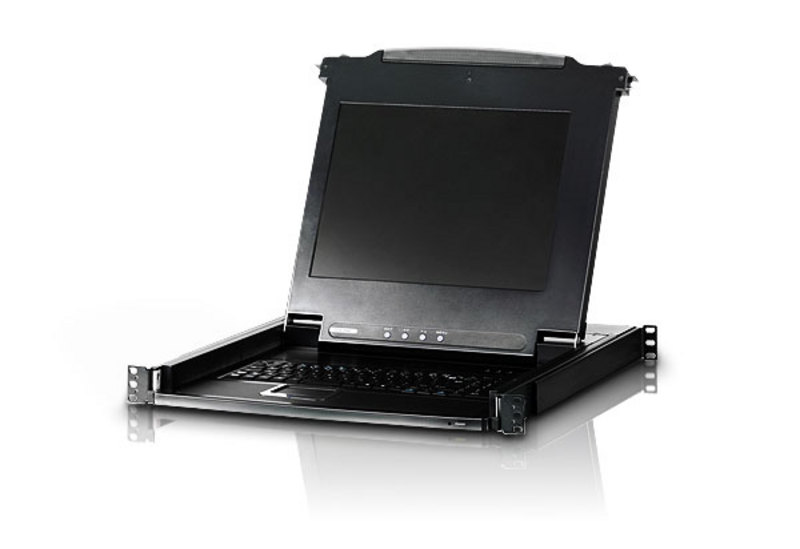

Aten 17" LED backlit LCD Console, can be mounted in rack with a depth of 42 72 cm CL1000M-ATA-AU

The CL1000 is a LCD KVM console that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17" LED-backlit LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing. Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch.

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

Integrated KVM console with a 17" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack

LCD module rotates up to 115 degrees for a more comfortable viewing angle

Slideaway™ housing is less than 1U - with top and bottom clearance for smooth operation in a 1U high system rack

Compatible with most PS/2 KVM Switches

Internal power built in

Adjustable depth to fit within a rack

High video resolution:

-Up to 1280 x 1024 @75Hz

-Supports DDC, DDC2, DDC2B

DDC emulation - VGA settings of every connected computer are automatically adjusted for optimal output to the LCD monitor

Keyboard Language Support:
English (US), English (UK), French, German, German (Swiss), Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, and Traditional Chinese

Improved design - single person installation (optional)

Multiplatform Support:
Windows 2000/XP/Vista, Linux and FreeBSD

Technical Specifications
