TP-LINK's MPN:
TL-SF1008P
Description:

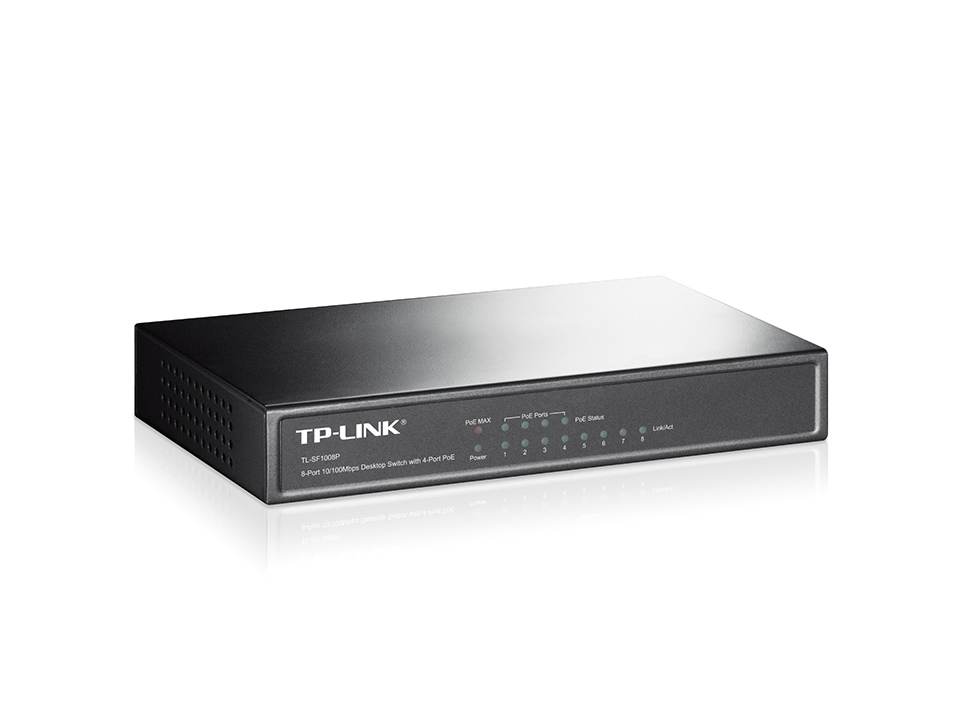

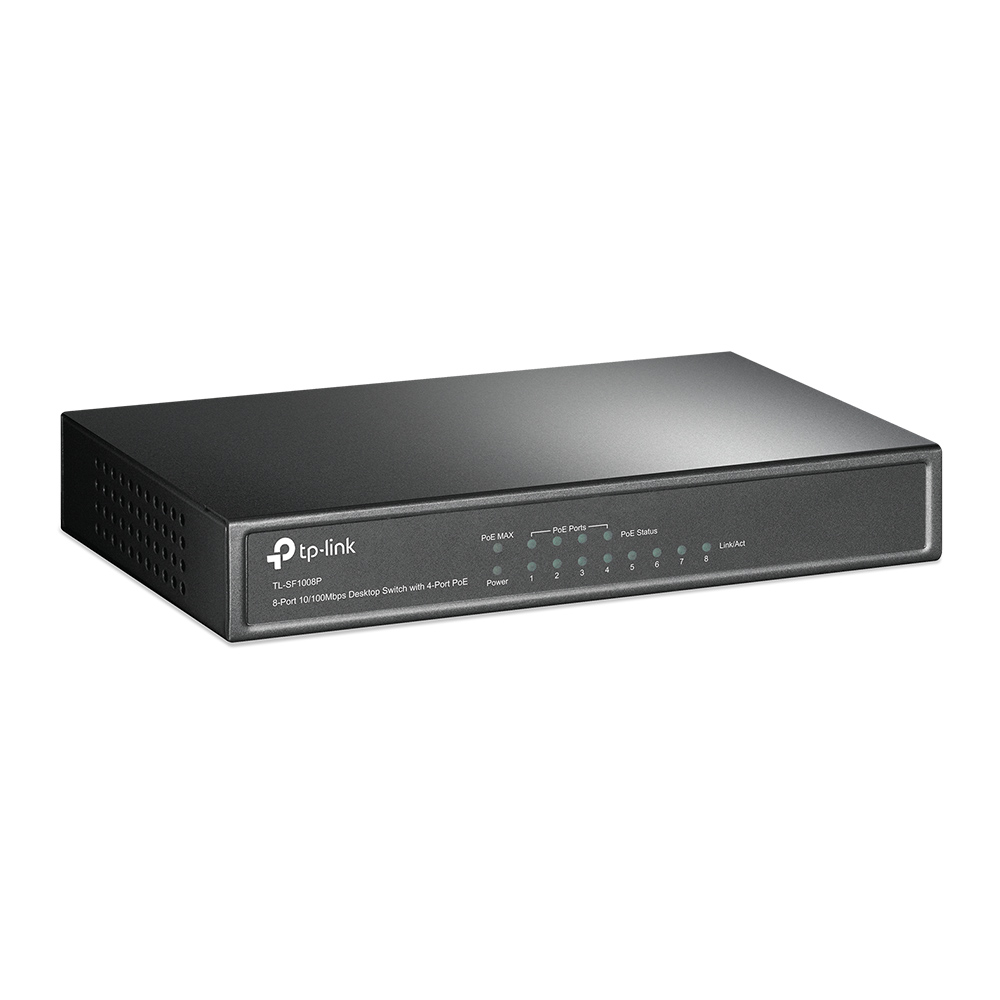

The TL-SF1008P 8-port 10/100M Desktop PoE Switch integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities to provides seamless network connection.
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) support Power over Ethernet (PoE). These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets.
TL-SF1008P has the priority function which helps protect the system when the system power is overloaded.
TL-SF1008P is easy to install and use. It requires no configuration or installation. With sleek desktop design, outstanding performance and quality, the TP-link TL-SF1008P 8-port 10/100M Desktop PoE Switch is a great solution for expanding your home or office network.
Features:
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 53W for all PoE ports
- Supports PoE IEEE802.3af compliant PDs
- Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 1K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply
Specifications:
Standards and Protocols
IEEE 802.3, 802.3u, 802.3x, 802.3af
CSMA/CD, TCP/IP
Basic Function
Compatible with IEEE 802.3af compliant PDs
Port Priority Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Backbound Bandwidth
1.6Gbps
MAC Address Table
1k
Forwarding Rate
10Base-T:
14880pps/port
100Base-Tx:
148800pps/port
Transmission Method
Store-and-Forward
Hardware Specification
Ports
8 10/100M Auto-Negotiation RJ45 ports with 4 PoE ports (port-1~port-4), Auto MDI/MDIX
Network Media
10Base-T:
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100Base-Tx:
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
LED Indicators
Power, Link/Act, 100Mbps, PoE Status, PoE MAX
Safety & Emission
FCC, CE
Dimensions
(W*D*H) 6.7*3.9*1.1 in. (171*98*27 mm)
Environment
Operating Humidity:
10%~90% non-condensing
Storage Humidity:
5%~90% non-condensing
Power Supply External Power Adapter(Output: 48VDC / 1.25A)
Consumption 5.8 watts (max. no PD connected)
58 watts (max. with 53w PD connected
