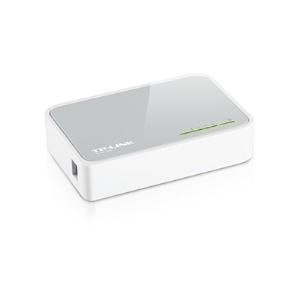

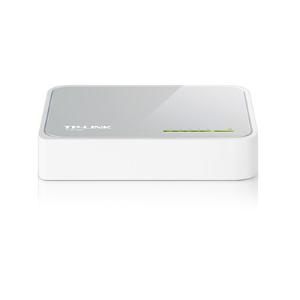

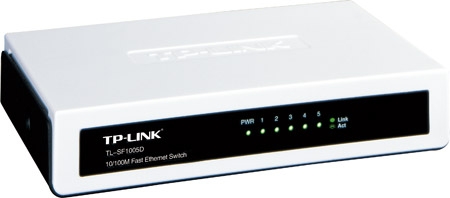

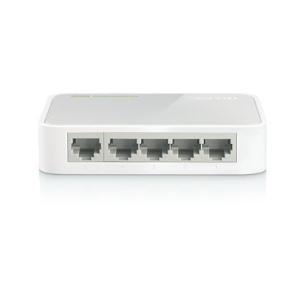

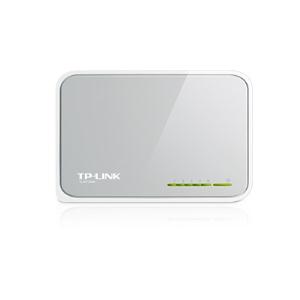

TP-LINK 10/100M 5 Port Switch TL-SF1005D

TL-SF1005D

Description:

What This Product Does

The TL-SF1005D 5-Port 10/100Mbps desktop switch is the easiest way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about which type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. With innovative energy-efficient technology, the TL-SF1005D can save up to 60% of your power consumption, making it an eco-friendly solution for your home or office network.

High Performance

TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large file transfers is improved significantly. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate traffic congestion ensuring reliability.

Easy to Use

The auto features of this Ethernet switch make installation completely hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Features:

· Innovative energy-efficient technology saves power up to 60%

· Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

· Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

· Auto-MDI/MDIX eliminates the need for crossover cables

· Supports MAC address auto-learning and auto-aging

· Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware

· Fanless design ensures quiet operation

· Desktop design

· Plug and Play design simplifies installation

Specifications:

HARDWARE FEATURES

Interface

5 10/100/Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

External Power Supply

100-240VAC, 50/60Hz

Dimensions (W x D x H)

5.5 x 3.4 x 1.1 in. (140 x 87 x 27.5 mm)

SOFTWARE FEATURES

Transfer Method

Store and Forward

Advanced Functions

Green Technology, saving power up to 70%

802.3X Flow Control, Back Pressure

Auto-Uplink Every Port

OTHERS

Certification

FCC, CE, RoHs

Package Contents

5-Port 10/100Mbps Desktop Switch

Power Adapter

User Guide

Environment

Operating Temperature:
0?~40? (32?~104?);


Storage Temperature:
-40?~70? (-40?~158?);
