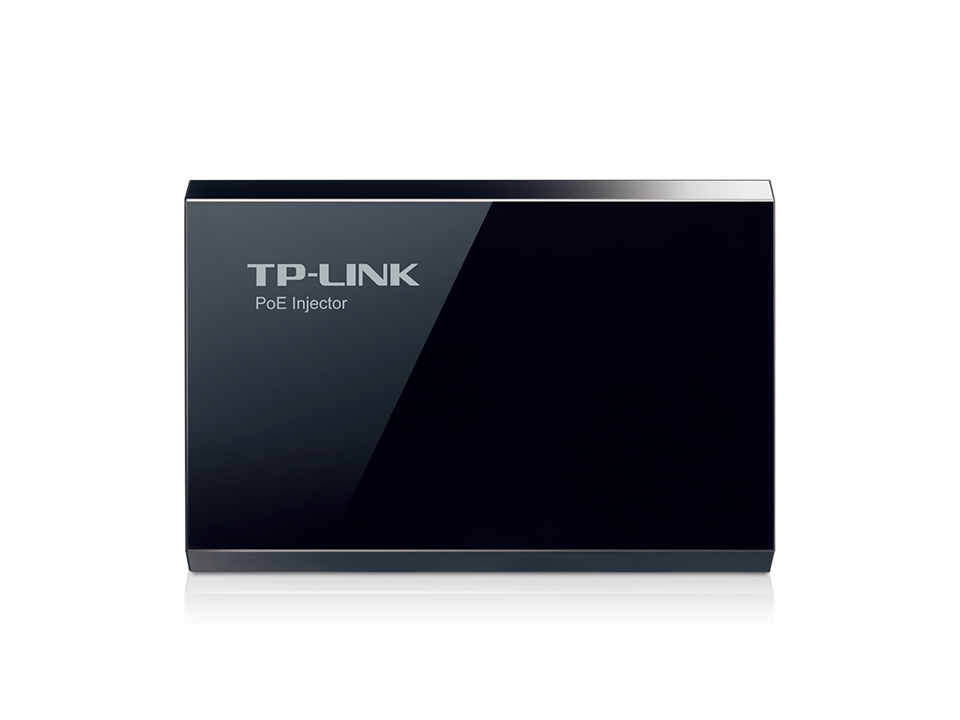

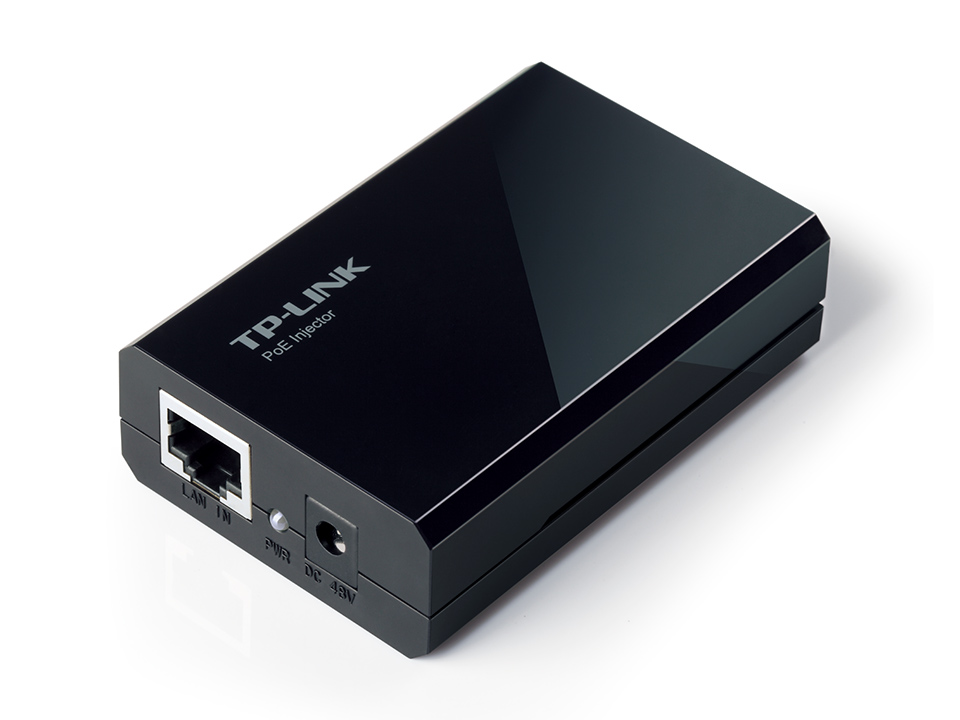

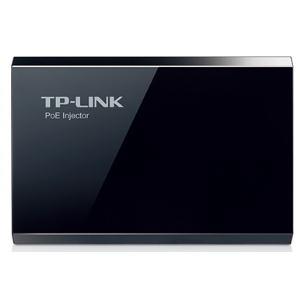

TP-LINK Single port PoE Supplier Adapter (Injector), IEEE 802.3af compliant, up to 100m TL-POE150S

TL-POE150S

Description:

The PoE Injector TL-POE150S is used to combine both data and DC current into the one cable to be used for devices not located near a power source or that are not near an internet outlet. This combination eliminates the need for two cables over any distance up to 100m.

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters such as TP-LINK’s TL-POE10R (or other equivalent products).

Used in conjunction with devices such as AP, IP Camera, IP Phone etc.

Features:

• IEEE 802.3af compliant
• Delivers power up to 100 meters
• Auto-determine the necessary power requirements
• Plug-and-Play, requires no configuration
• External power adapter supply

Specifications:

HARDWARE FEATURES:

Interface

1 10/100 RJ45 Port

AUTO Negotiation/AUTO MDI/MDIX

Network Media

10Base-T:
UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100O STP (maximum 100m)

100Base-Tx:
UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100O STP (maximum 100m)

LED Indicator

PWR

Dimensions ( W x D x H )

3.2*2.0*0.9 in.(81*52*24 mm)

Power Supply

15.4W (Max. 48VDC)

SOFTWARE FEATURES:

Basic Function

Compatible With IEEE 802.3af Compliant PDs

Delivers Power Up To 100 Meters

Auto-Determine The Necessary Power Requirements

OTHERS:

Certification

FCC, CE

Environment

Operating Temperature:
0°C ~ 40°C (32°C~104°C)

Storage Temperature:
-40°C~70°C (-40°C~158°C)

Operating Humidity:
10%~90% non-condensing

Storage Humidity:
5%~90% non-condensing
