Atdec Tilt Angle Slim Wall Mount TH-3070-UT

Features

Click to view full size

screen atdec information manufacturer 200vesa

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)

Download Brochure

Atdec's MPN:

TH-3070-UT

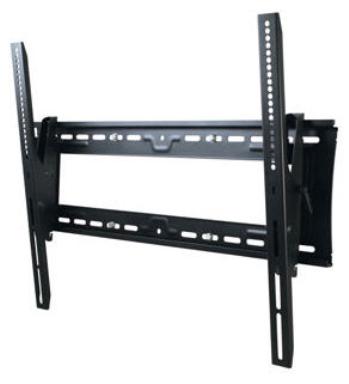

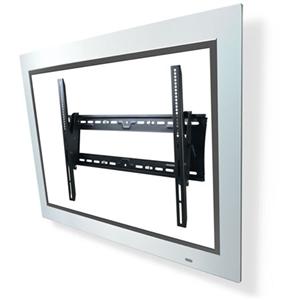

ATDEC TILT ANGLE LOW PROFILE WALL MOUNT - VESA UP TO 800X500 - 39MM PROFILE - 20DEG TILT ADJUSTMENT (15DEG+ TO -5DEG) - HEAVY DUTY MOUNT SUPPORTS UP TO 91KG - ALL MOUNTING HARDWARE INCLUDED

Brand Name: Telehook

Device Supported: Flat Panel Display

Maximum Load Capacity: 90.72 kg

Maximum Screen Size Supported: 203.2 cm (80")

Product Type: Wall Mount

VESA Mount Standard: 200 x 100

VESA Mount Standard: 200 x 200

VESA Mount Standard: 300 x 200

VESA Mount Standard: 300 x 300

VESA Mount Standard: 400 x 300

VESA Mount Standard: 400 x 400

VESA Mount Standard: 600 x 400

VESA Mount Standard: 800 x 200

VESA Mount Standard: 800 x 400

General Information
Brand Name:	Telehook
Manufacturer Part Number:	TH-3070UT
Manufacturer Website Address:	http://www.atdec.com
Manufacturer:	Atdec Pty Ltd
Marketing Information:	The TH-3070-UT is highly durable and extremely strong. This mount supports screens that weigh up to 200 lbs. (91kg) and offers 15 degrees of tilt adjustment which can be set post installation. Very simple to install, the TV is held just 2.75" (72.5mm) from the wall for a display that's streamlined as well as flexible. By adding a padlock your screen is safe and secure thanks to the theft resistant design
Product Model:	TH-3070-UT
Product Name:	TH-3070-UT Wall/Tilt
Product Type:	Wall Mount

Miscellaneous
Additional Information:	Mounting Hole Pattern (Mm): From 180-800 Wide x 125-500 high
Assembly Required:	Yes
Compatibility:	LCD LED Plasma
Package Contents:	Wall Plate Security Plate Display Bracket (left) Display Bracket (right) Fasteners 4 x Coach Screw 4 x Masonry Wall Plug 4 x Multi Washer 4 x Washer 6 x Dry Wall Anchor 4 x 13mm Spacer Bush 4 x 20mm Spacer Bush 4 x (M8x15mm) Cross Recessed Screws 4 x (M8x35mm) Cross Recessed Screws 4 x (M8x45mm) Cross Recessed Screws 4 x (M6x15mm) Cross Recessed Screws 4 x (M6x35mm) Cross Recessed Screws 4 x (M6x45mm) Cross Recessed Screws 4 x (M5x15mm) Cross Recessed Screws 4 x (M5x35mm) Cross Recessed Screws 4 x (M5x45mm) Cross Recessed Screws 4 x (M4x15mm) Cross Recessed Screws 4 x (M4x35mm) Cross Recessed Screws 4 x (M4x45mm) Cross Recessed Screws

Physical Characteristics
Colour:	Black
Depth:	7.6 cm
Material:	Steel
VESA Mount Compatible:	Yes
VESA Mount Standard:	200 x 100
	200 x 200
	300 x 200
	300 x 300
	400 x 300
	400 x 400
	600 x 400
	800 x 200
	800 x 400

Product Information
Device Supported:	Flat Panel Display
Features:	Anti-theft
	Lockable
	Tilt
Maximum Load Capacity:	90.72 kg
Maximum Screen Size Supported:	203.2 cm (80")
Minimum Screen Size Supported:	106.7 cm (42")

Warranty
Limited Warranty:	10 Year

Information

SKU/Item No 206473

Vendor Part No TH-3070-UT

UPC/EAN Number 881493004788
