Cisco SFP Transceiver F SR2024 SR224G MGBSX1

Features

Click to view full size

24-port 125um cisco information manufacturer

Click to view full size

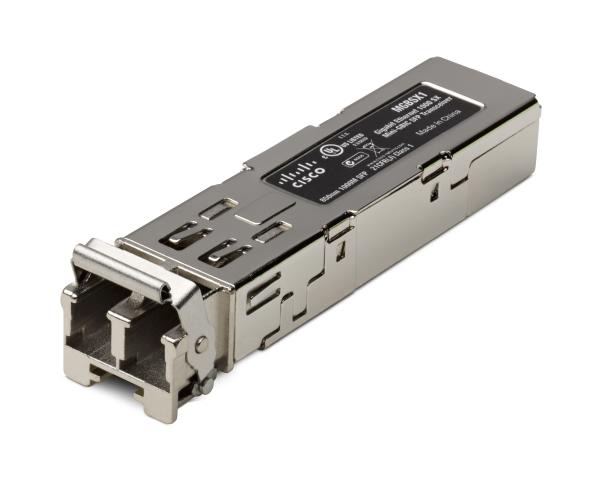

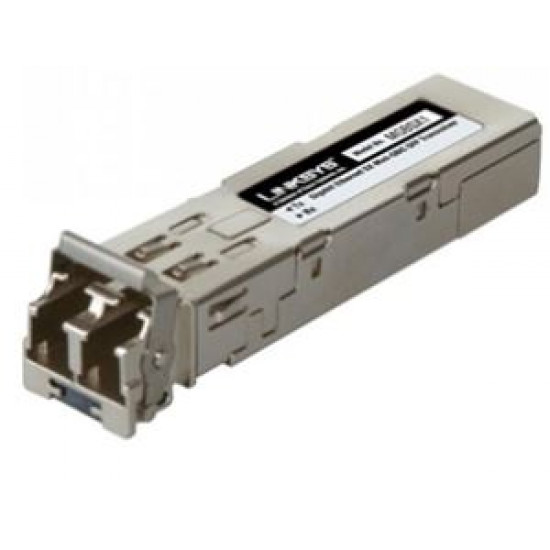

(Pictures are For Illustration Purposes Only)

Cisco's MPN:

MGBSX1

SFP TRANSCEIVER F SR2024 SR224G

Brand Name: Cisco

Data Transfer Rate: 128 MBps

Interfaces/Ports Details: 1 x 1000Base-SX

Product Type: SFP (mini-GBIC)

General Information
Brand Name:	Cisco
Manufacturer Part Number:	MGBSX1
Manufacturer Website Address:	http://www.cisco.com
Manufacturer:	Cisco Systems, Inc
Marketing Information:	This easy-to-install Mini-GBIC (or SFP) module provides a simple way to add Gigabit functionality to your Linksys switch. Gigabit fiber is often used to connect two switches together. The technology used depends on the distance between the two switches.The SX module uses 850 nanometer wavelength light in multimode fiber optic cables, and can achieve distances up to 220 or 550 meters, depending on the fiber used.
Product Model:	MGBSX1
Product Name:	MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver
Product Type:	SFP (mini-GBIC)

Interfaces/Ports
Interfaces/Ports Details:	1 x LC 1000Base-SX

Media & Performance
Fiber Mode Supported:	Multi-mode
Fiber Optic Cable Standard:	50/125 µm
	62.5/125 µm
Maximum Data Transfer Rate:	1 Gbps
Maximum Distance Supported:	550 m
Media Type Supported:	Optical Fiber

Miscellaneous
Additional Information:	Transmitter Spec: Power: -9.5 to -4 dBm Reciever Spec: Sensitivity: -20 to -17dBm Input Power: -20 to -17 dBm Stress Sensitivity: 50/125 um: -13.5dBm, 62.5/125 um: -12.5dBm Wavelength: 850 nm (850nm TYP., 830-860nm) MMF Modular Bandwidth for MMF: 62.5/125um MMF at 160 MHz/km, up to 220m 62.5/125um MMF at 200 MHz/km, up to 275m 50/125um MMF at 400 MHz/km, up to 500m 50/125um MMF at 500 MHz/km, up to 550m
Compatibility:	SR2024 - 24-Port 10/100/1000 Gigabit Switch SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView

Miscellaneous

Additional Information:

Transmitter Spec: Power: -9.5 to -4 dBm
Reciever Spec: Sensitivity: -20 to -17dBm
Input Power: -20 to -17 dBm
Stress Sensitivity: 50/125 um: -13.5dBm, 62.5/125 um: -12.5dBm
Wavelength: 850 nm (850nm TYP., 830-860nm) MMF

Modular Bandwidth for MMF:

62.5/125um MMF at 160 MHz/km, up to 220m
62.5/125um MMF at 200 MHz/km, up to 275m
50/125um MMF at 400 MHz/km, up to 500m
50/125um MMF at 500 MHz/km, up to 550m

Compatibility:

SR2024 - 24-Port 10/100/1000 Gigabit Switch
SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC
SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView
SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView
SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView

Physical Characteristics
Weight (Approximate):	20 g

Technical Information
Application/Usage:	Data Networking

Information

SKU/Item No 195838

Vendor Part No MGBSX1

UPC/EAN Number 745883558766
