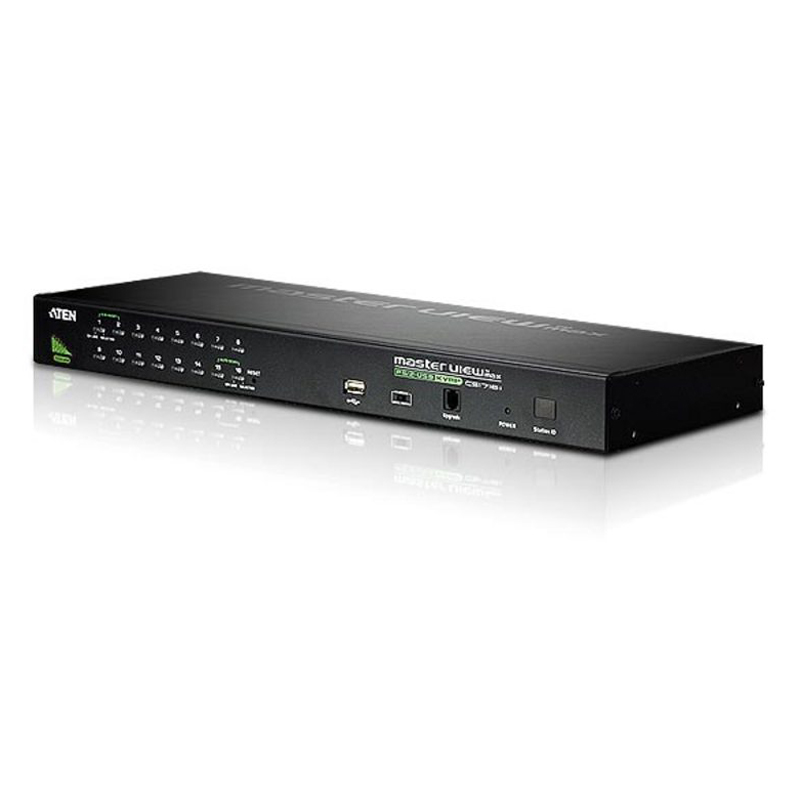

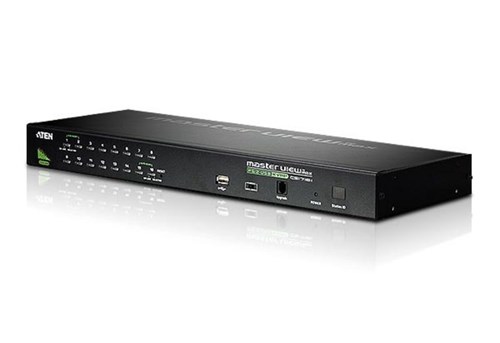

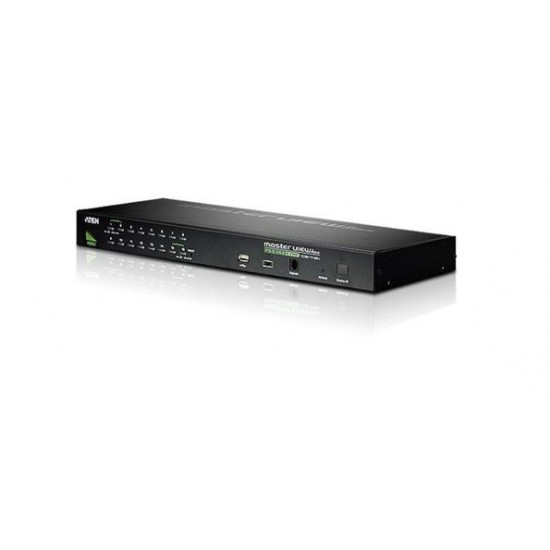

Aten 16 Port PS/2-USB 2.0 VGA Kvmp Switch, supports Video DynaSync, Mouse and Keyboard emulation, 1 VGA USB KVM Cable, 1 VGA PS/2 KVM Cable included CS1716A-AT-U

CS1716A-AT-U

Aten 16 Port PS/2-USB 2.0 VGA KVMP Switch, supports Video DynaSync, Mouse and Keyboard emulation, 1 VGA USB KVM Cable, 1 VGA PS/2 KVM Cable included

The CS1716A KVM switch is a control unit that allows access to multiple computers from a single PS/2 or USB console (keyboard, mouse, and monitor). A single CS1716A can control up to 16 computers. As many as 31 additional switches can be daisy-chained to each other, so that up to 512 computers can all be controlled from a single keyboard-monitor-mouse console. Additionally, a front panel USB port is available for each computer to access any peripherals connected to it on a one-at-a-time basis.

•


  One USB-PS/2 console controls up to 16 computers


•


  Daisy-chain up to 31 additional units - control up to 512 computers from a single console


•


  Front accessible USB port allows each computer to access USB peripherals*


•


  Dual Interface - supports computers and console with PS/2 or USB keyboards and mice


•


  Multiplatform support - Windows, Linux, Mac and Sun


•


  Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution


•


  Supports USB keyboards for PC, Mac and Sun


•


  Auto PS/2 and USB interface detection


•


  USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere


•


  Superior video quality - up to 2048 x 1536; DDC2B


•


  No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus


•


  Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position


•


  Port names automatically reconfigured when station sequence is changed


•


  Two level password security; only authorized users view and control computers; up to four users and an administrator with separate profiles for each


•


  Auto Scan feature for monitoring user-selected computers


•


  Broadcast Mode - operation simultaneously performed on all selected computers... etc


•


  Hot pluggable - add or remove computers without having to power down the switch


•


  Buzzer on/off via hotkey and OSD


•


  Firmware upgrades to all the chained KVM switch at the same time via the daisy-chain cable


•


  Rack mountable in 19" system rack (1U)


* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.
