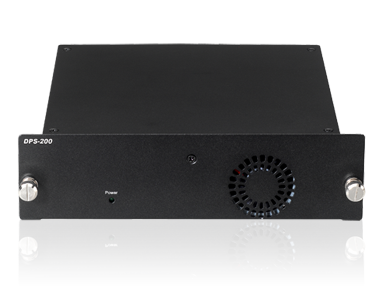

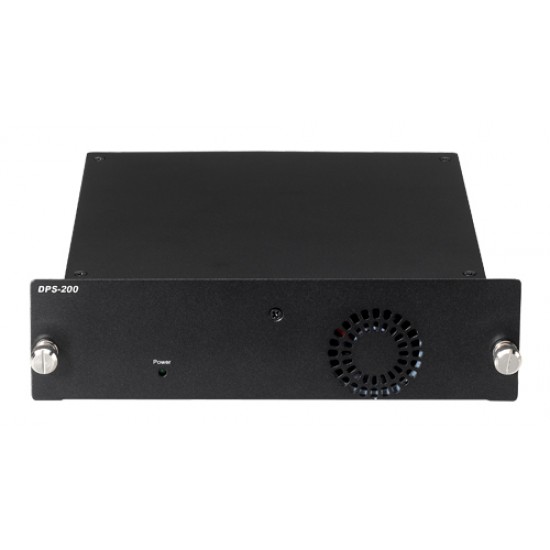

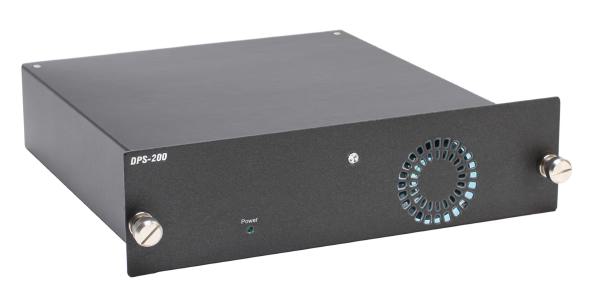

D-Link 60W Redundant Power Supply Unit Important Note Low-Stock Item. Up to 3 -4 week lead time. DPS-200

• On: RPS good
• Off: RPS failed

The DPS-200 redundant power supply designed for use with D-Link LAN switches. The power supply connects to a switch to provide redundant backup power to the built-in power supply unit inside the switch. The RPS can operate as stand-alone redundant power supply unit.

• AC Input Voltage Rating: 100VAC to 240VAC
• Leakage Current: 3.5mA max
• Line Regulation: +/-2% (measured output load from +/-10% rated load)
• Load Regulation: +/-5% (measured output load from 20% to 100% rated load)
• Output Ripple & Noise: 120mV
• Over Current Protection
• Over Voltage Protection: 13.5V to 17V
• AC Power Good Signal Required: +3.3V
• Shock & Vibration: 10-55Hz
• Insulation Resistance: Input to secondary >20Mohm 500VDC

Hi-Pot Test:

• Input to secondary: 3000VAC for 1 minute, 10mA
• Input to P.E: 1500VAC for 1 minute, 10mA

Safety Standards:

• UL 60950 3rd Edition
• TUV EN 60950
• CE Mark (LVD)

Safety Approvals:

• CSA

EMI:

• FCC Class B
• EN55022 (CISPR22) Class B

• DES-3326SR L3 stackable switch
• DES-3350SR L3 stackable switch
• DGS-3212SR L2/L3 stacking master
