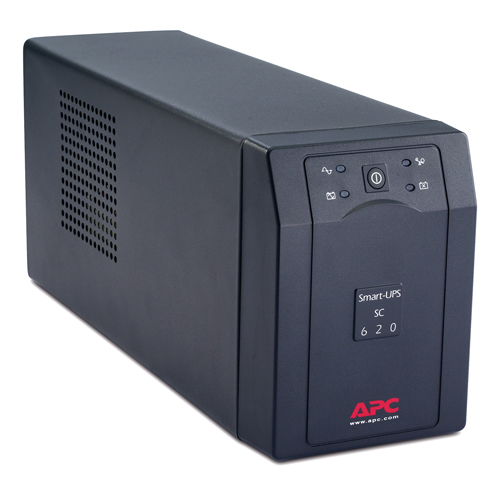

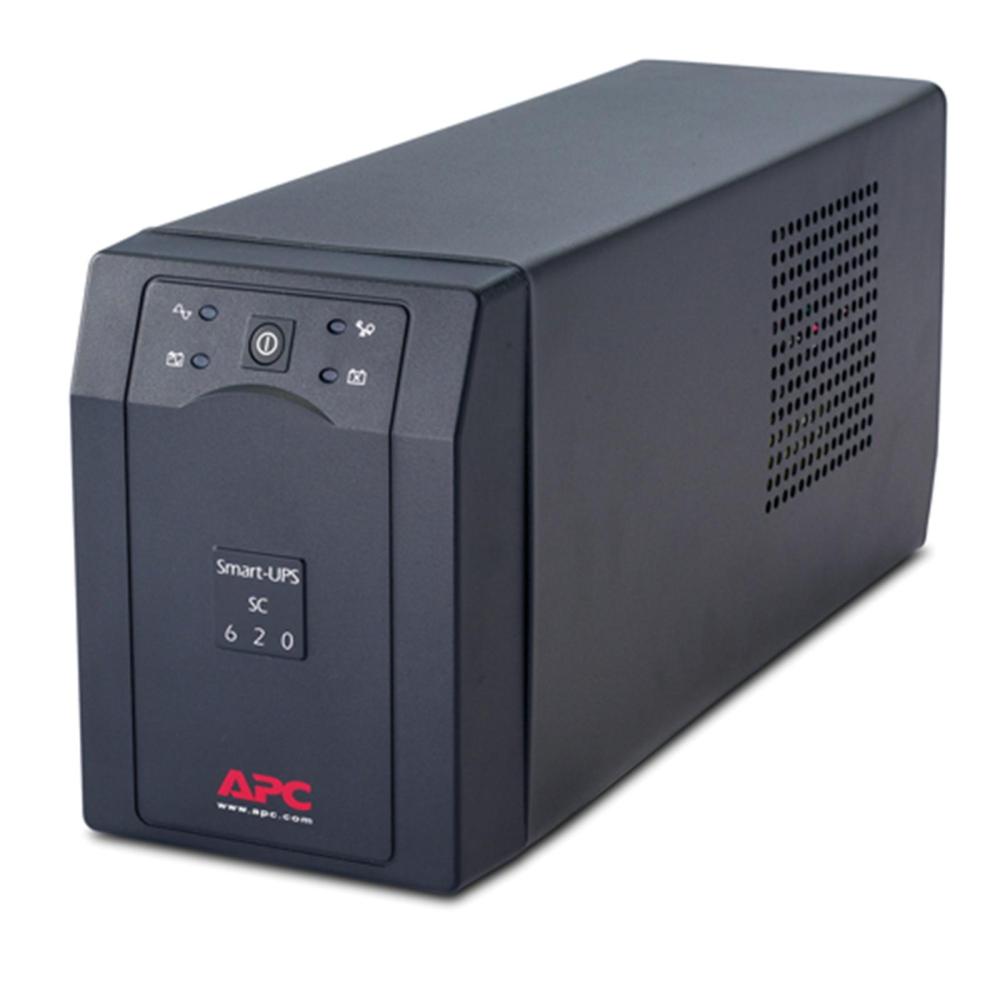

APC SMART-UPS SC 620VA 230V SC620I

Features

sc620i smart-ups battery load information

Click to view full size

management capacity time product manufacturer

Click to view full size

(Pictures are For Illustration Purposes Only)

APC/Schneider's MPN:

SC620I

SMART-UPS SC 620VA 230V

Backup/Run Time (Full Load): 5.50 Minute

Backup/Run Time (Half Load): 15.70 Minute

Brand Name: APC

Form Factor: Tower

Load Capacity (VA): 620 VA

Load Capacity (Watt): 390 W

Product Family: Smart-UPS SC

Product Type: Line-interactive UPS

Battery Information
Backup/Run Time (Full Load):	5.50 Minute
Backup/Run Time (Half Load):	15.70 Minute
Battery Characteristics:	Spill-proof, Maintenance-free
Battery Chemistry:	Sealed Lead Acid
Hot Swappable:	Yes

Controls/Indicators
Status Indicators:	On Line On Battery Replace Battery Overload

Environmental Conditions
Temperature:	45°C
Thermal Dissipation:	70 BTU/h

General Information
Brand Name:	APC
Manufacturer Part Number:	SC620I
Manufacturer Website Address:	http://www.apc.com
Manufacturer:	American Power Conversion Corp
Marketing Information:	APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. With included PowerChute management software for servers and workstations, IT administrators can provide safe system shutdown and advanced UPS management (All major operating systems supported). SC Series of UPS are not recommended for HP servers
Product Line:	Smart-UPS
Product Name:	Smart-UPS SC 620VA
Product Series:	SC
Product Type:	Line-interactive UPS

Interfaces/Ports
Serial Port:	Yes

Management
Alarm:	Configurable Delay
	Low Battery
	On Battery
Battery Management:	Intelligent Battery Management

Miscellaneous
Additional Information:	Adjustable voltage sensitivity Adjustable voltage-transfer points Automatic restart of loads after UPS shutdown Automatic self-test Boost and Trim Automatic Voltage Regulation (AVR) Cold-start capable Generator Compatible Predictive failure notification Safety-agency approved
Certifications & Standards:	CE EN 50091-1 EN 50091-2 GOST IEC 60950 IRAM PCBC VCCI VDE UL 1449
Package Contents:	Smart-UPS SC 620VA CD with software Smart UPS signalling RS-232 cable User Manual

Physical Characteristics
Colour:	Grey
Depth:	381 mm
Form Factor:	Tower
Height:	177.8 mm
Weight (Approximate):	12.25 kg
Width:	127 mm

Power Description
Input Voltage:	220 V AC
Load Capacity (Va):	620 VA
Load Capacity (Watt):	390 W
Surge Energy Rating:	320 J

Technical Information
Dataline Protection:	RJ-45
Plug/Connector Type:	IEC 320-C14

Warranty
Limited Warranty:	2 Year

Information

SKU/Item No 120208

Vendor Part No SC620I

UPC/EAN Number 731304222637

Our Stock ** (click for more info)

Price

$466.88

Buy Qty

QR 2D barcode
Product link	No link
Manufacturer's link	APC/Schneider
