.: Home Page > Cases, PSUs > ATX Cases with or without PSU
.: Manufacturer > Tagan
PRINT THIS PAGE

APLUS El-Diablo Super Tower ATX Case, Enormous Blue Side 360mm Fan, Huge Front 250mm Fan, No PSU

This item has been tagged as:
New Addition New Addition

Information
Item Number.:G-TG-Eldiablo
Manuf No.:
Our Stock *.:5+
Price.:
$165.00
Quantity .:
Product link.: Product
Manufacturer's link .: Tagan
Related Product(s)
Review Link(s) .: Benchmark Reviews
* Stock level in our warehouse. Many competitors only show their suppliers' stock level.
Stock and Freight Information

Stock Information
 Our Qty in StockAvailability and ETA
Our own stock5+

Features
Tagan's newest addition to the Aplus case product line with enormous blue illuminated side 360mm + huge front 250mm fans.

Separate VR fan speed control for excellent system cooling system
and tool-free brackets for easy assembly.

Aplus EL Diablo, the perfect case for exterme gamers looking for ultimate cooling and design.


• 2PCS enormous 250 mm fans (front & side)
• VR fan speed control (front & side)
• Blue Led illumination
• 1.0mm SECC/100% ABS plastic parts
• Excellent cooling solution
• Tool-less clips & rails for easy installation
• USB 2.0 and IEEE 1394 firewire connectors
• Dimension 570 x 205 x 520mm (D*W*H)
• Drive Space
• 5.25” * 5 – External
• 3.5” * 1 – External
• 3.5” * 7 – Internal
• Material Chassis 1.0 mm SECC: Frontpanel: ABS Plastic

Color
Fully Black High Gloss Finish
Dimension:
205 x 520 x 570 mm
Material:
0.8mm SECC
M/B Form Factor:
Micro ATX, Standard ATX, Ext ATX (12"x13")
Side:
1x360mm (on/off switch, VR adjustable fan speed)
Front:
1x250mm (on/off switch, VR adjustable fan speed)
Rear:
1x120mm (Optional)

Side 36cm fan (VR)
DIMENSIONS:
335x335x33MM
BEARING TYPE:
SLEEVE BEARING
RATED VOLTAGE:
12.0 VDC
START-UP VOLTAGE:
6 VDC (NORMAL)
RATED CURRENT:
0.16-0.55 A ±10%
RATED POWER:
1.92-6.60W
AIR FLOW:
90.5-205.36CFM
STATIC AIR PRESSURE:
0.83-1.76 mmAq
NOISE LEVEL:
22.08-30.93Dba
RATED SPEED:
50--600 RPM±10%(VR)
LIFE EXPECTANCY:
30000Hours at 25?/65%RH

Front 25cm fan (VR)
DIMENSIONS:
220x220x30MM
BEARING TYPE:
SLEEVE BEARING
RATED VOLTAGE:
12.0 VDC
START-UP VOLTAGE:
7 VDC
RATED CURRENT:
0.30 A ±10%
RATED POWER:
3.60W ±10%
RATED SPEED:
max 800 RPM ±10%
AIR FLOW:
150.49CFM Max.
STATIC AIR PRESSURE:
0.97mmAq
NOISE LEVEL:
32.1dBA
LIFE EXPECTANCY:
30000Hours at 25?/65%RH

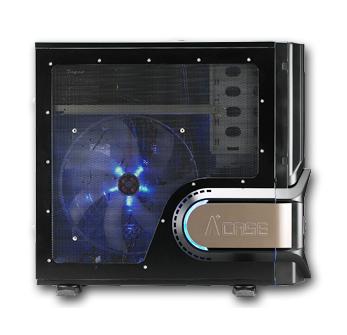

APLUS El-Diablo Super Tower ATX Case, Enormous Blue Side 360mm Fan, Huge Front 250mm Fan, No PSU
Click to view full size

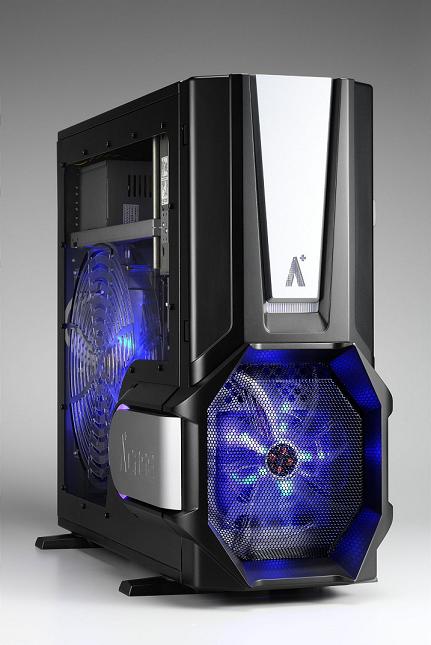

APLUS El-Diablo Super Tower ATX Case, Enormous Blue Side 360mm Fan, Huge Front 250mm Fan, No PSU
Click to view full size

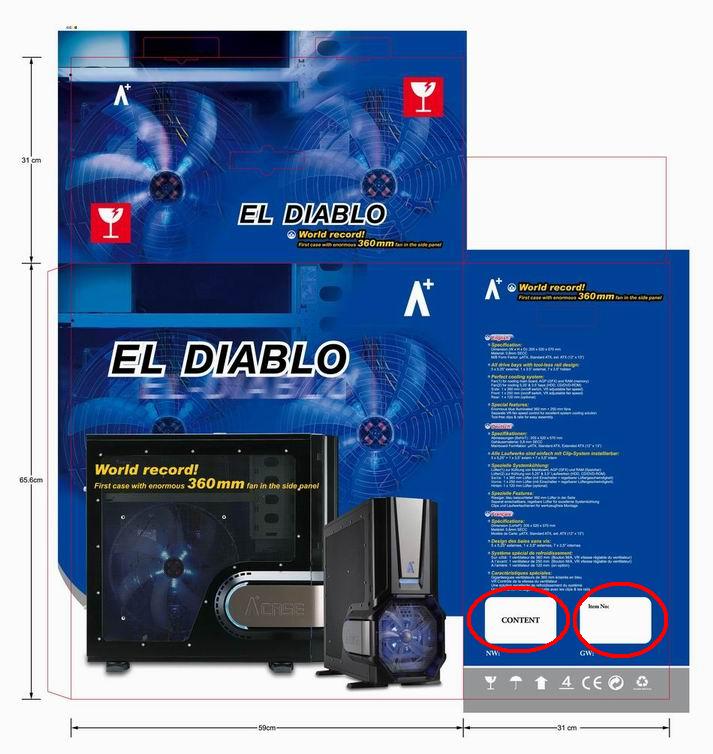

APLUS El-Diablo Super Tower ATX Case, Enormous Blue Side 360mm Fan, Huge Front 250mm Fan, No PSU
Click to view full size

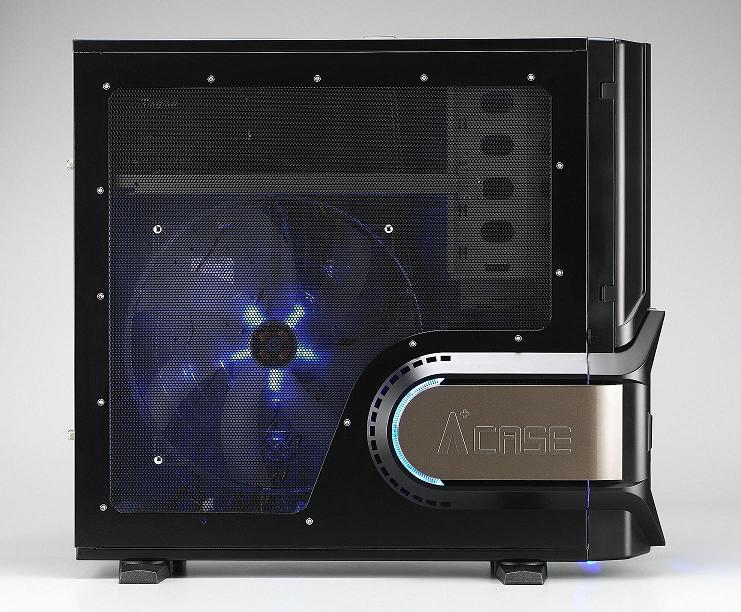

APLUS El-Diablo Super Tower ATX Case, Enormous Blue Side 360mm Fan, Huge Front 250mm Fan, No PSU
Click to view full size

APLUS El-Diablo Super Tower ATX Case, Enormous Blue Side 360mm Fan, Huge Front 250mm Fan, No PSU
Click to view full size
