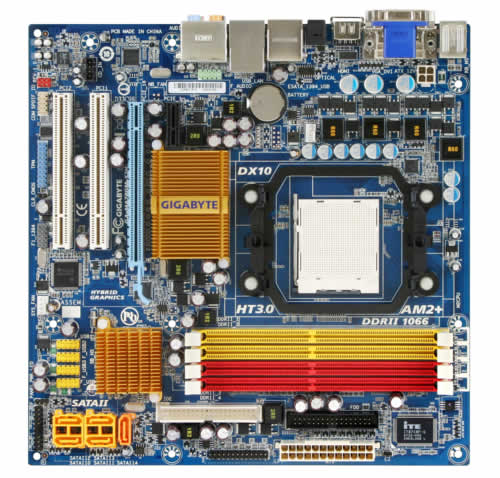

Gigabyte Socket AM2+, GA-MA78GM-S2H, 780G Chipset, VGA, DDR2-800, PCI-E x16, SATA II RAID, HDMI

Information

Item Number

B-MA78GM-S2H

Manuf No

GA-MA78GM-S2H

Our Stock *

1-3days

Price

$137.48

Quantity

Product link	.: Product
Manufacturer's link	.: Gigabyte
Related Product(s)
Review Link(s)

* Stock level in our warehouse. Many competitors only show their suppliers' stock level.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	0	27/01/09	7/01/09 04:18PM
Supplier two	5		7/01/09 08:33AM

Features

GA-MA78GM-S2H (rev.1.0)
Help
AMD 780G Chipset

1. Supports AMD AM2+ Phenom/ AM2 Athlon64 series processors
2. Solid capacitors design in CPU VRM
3. Dual Channel DDR2 1066 for remarkable system performance
4. Integrated ATI Radeon HD3200-based graphics (DX10)
5. Ultimate graphics performance with PCI-E 2.0 x16 interface
6. Integrated SATA 3Gb/s with RAID function
7. Features high speed Gigabit Ethernet and IEEE1394
8. High quality 106dB SNR ALC889A HD audio
9. Integrated HDMI/ DVI interface with HDCP

• Whether 1066 MHz memory speed is supported depends on the CPU being used, please refer “Memory Support List” for memory support information.

Specifications
CPU

1. Support for Socket AM2+/ AM2 processors: AMD Phenom™FX processor/ AMD Phenom™ processor/ AMD Athlon™ 64 FX processor/AMD Athlon™ 64 X2 Dual-Core processor/AMD Athlon™ 64 processor/AMD Sempron™ processor

Hyper Transport Bus

1. 5200/2000 MT/s

Chipset
1. North Bridge:
AMD 780G
2. South Bridge:
AMD SB600

Memory

1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR2 1066 (Note 2)/800/667 MHz memory modules

Audio

1. Realtek ALC889A codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for DTS (dts NEO:
PC)
5. Support for S/PDIF In/Out
6. Support for CD In

LAN

1. Realtek 8111C chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot (The PCI Express x16 slot conforms to PCI Express 2.0 standard.)
2. 1 x PCI Express x1 slot
3. 2 x PCI slots
Storage Interface South Bridge:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 5 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3, SATAII4) supporting up to 5 SATA 3Gb/s devices
3. 1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
4. Support for SATA RAID 0, RAID 1 and RAID 10
iTE IT8718 chip:

South Bridge:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
2. 5 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3, SATAII4) supporting up to 5 SATA 3Gb/s devices
3. 1 x eSATA 3Gb/s port on the back panel supporting up to 1 SATA 3Gb/s device
4. Support for SATA RAID 0, RAID 1 and RAID 10
iTE IT8718 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive 1 x floppy disk drive connector supporting up to 1 floppy disk drive

IEEE 1394 T.I. TSB43AB23 chip

1. Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

USB Integrated in the South Bridge

1. Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 5 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x CD In connector
11. 1 x S/PDIF In/Out header
12. 1 x IEEE 1394a header
13. 4 x USB 2.0/1.1 headers
14. 1 x parallel port header
15. 1 x Trusted Platform Module (TPM) header
16. 1 x serial port header
17. 1 x chassis intrusion header
18. 1 x power LED header

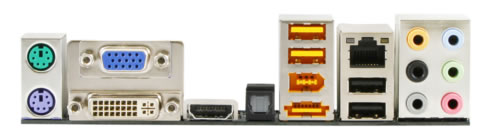

Back Panel Connectors

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x DVI-D port (Note 3)
5. 1 x HDMI port
6. 1 x optical S/PDIF Out connector
7. 1 x eSATA 3Gb/s port
8. 1 x IEEE 1394a port
9. 4 x USB 2.0/1.1 ports
10. 1 x RJ-45 port
11. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. ITE IT8718 chip

H/W Monitoring System voltage detection

1. CPU/System temperature detection
2. CPU/System fan speed detection
3. CPU overheating warning
4. CPU/System fan fail warning
5. CPU/System fan speed control (Note 4)

BIOS

1. 1 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Download Center
3. Support for Q-Flash
4. Support for EasyTune (Note 5)
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for Virtual Dual BIOS

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft Windows Vista/ XP

Form Factor

1. Micro ATX Form Factor; 24.4cm x 24.4cm

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.

Note (Note 1) Due to Windows XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Whether 1066 MHz memory speed is supported depends on the CPU being used.
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/ system cooler you install.
(Note 5) Available functions in Easytune may differ by motherboard model.
