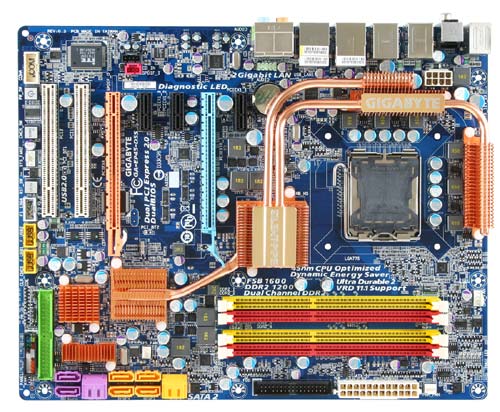

Gigabyte S775, GA-EP45-DS5, P45, FSB1600, DDR2, 2xPCIEx16, 2xGbLAN, CrossFireX

Information

Item Number

B-EP45-DS5

Manuf No

GA-EP45-DS5

Our Stock *

1-3days

Price

$263.01

Quantity

Product link	.: Product
Manufacturer's link	.: Gigabyte
Related Product(s)
Review Link(s)

* Stock level in our warehouse. Many competitors only show their suppliers' stock level.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one		>5	7/01/09 04:18PM

Features

Based on the new Intel P45 chipset, GA-EP45-DS5 delivers a record setting 1600MHz Front Side Bus for the latest Intel® Core 2™ multi-core processors, including 45nm CPUs. With supporting dual channel DDR2 up to 1200MHz, GA-EP45-DS5 motherboard provides the highest levels of performance and maximum overclocking potential. In additional, GA-EP45-DS5 is further equipped to support ATI CrossFireX™ Technology with dual PCI Express 2.0 x8 interfaces, delivering double the PCI Express bandwidth of 5 Gbit/s for the ultimate in extreme gaming performance. GA-EP45-DS5 delivers several advanced GIGABYTE innovations including the DES Advanced, Ultra Durable 2, Ultra TPM design which provide optimized power savings, ultra cooling and ultra secure data protection.

1. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
2. Supports 45nm Intel® Core 2™ multi-core processors with FSB 1600 MHz
3. Dual channel DDR2 1200 for remarkable system performance
4. 2 PCI-E 2.0 x16 graphic interface with CrossFireX support for ultimate graphics performance
5. Built-in TPM chip with 2048bits encryption to highest level digital data protection
6. Smart Backup provides data backup solution with 4 serial ATA device attachment from 2 hardware RAID chip
7. Diagnostic LED and ACPI LEDs on board to display system and power status
8. 2 Gigabit Ethernet LAN with Teaming functionality
9. Supports Dolby Home Theater® audio to create a stunning surround sound listening experience.
10. DualBIOS solution gives a multiple security to the system
11. Power/reset/Clr CMOS onboard button for easily operation on the workbench
12. Hardware Overvoltage Control IC Provides more voltage control options on CPU, North bridge and memory
13. Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio
