Gigabyte S775, GA-EP45-DS3, P45 Chipset, FSB1600, DDR2, PCI-e, SATA, GbLAN, DES, ATX

Information

Item Number

B-EP45-DS3

Manuf No

GA-EP45-DS3

Our Stock *

Under 5

Price

$209.00

Quantity

Product link	.: Product
Manufacturer's link	.: Gigabyte
Related Product(s)
Review Link(s)

* Stock level in our warehouse. Many competitors only show their suppliers' stock level.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	Under 5
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one		>5	8/01/09 08:31AM
Supplier two		20+	8/01/09 08:31AM

Features

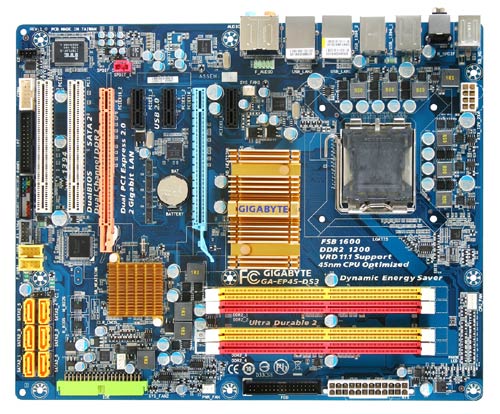

GA-EP45-DS3 (rev. 1.0)
Help
Intel® P45 + ICH10 Chipset

1. Revolution energy saving design with DES Advanced featuring hardware based Dynamic 6-Gear switching
2. Supports 45nm Intel® Core™ 2 multi-core processors with FSB 1600 MHz
3. Dual channel DDR2 1200 for remarkable system performance
4. 2 PCI-E 2.0 x16 graphic interface with CrossFireXTM support for ultimate graphics performance
5. 2 Gigabit Ethernet LAN with Teaming functionality
6. DualBIOS solution gives a multiple security to the system
7. Hardware Overvoltage Control IC Provides more voltage control options on CPU, North bridge and memory
8. Blu-ray playback outputs supported by high quality 106dB SNR ALC889A HD audio

Specifications
CPU

1. Support for an Intel Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel Core™ 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package
(Note) This motherboard is designed with VRD11.1 power phase, and cannot be compatible with VRD10 designed CPU. Please refer to "CPU Support List" for details.
2. L2 cache varies with CPU

Front Side Bus

1. 1600/1333/1066/800 MHz FSB

Chipset
1. North Bridge:
Intel® P45 Express Chipset
2. South Bridge:
Intel® ICH10

Memory

1. 4 x 1.8V DDR2 DIMM sockets supporting up to 16 GB of system memory
2. Dual channel memory architecture
3. Support for DDR2 1200/1066/800/667 MHz memory modules
(Refer to Memory support list for more information)

Audio

1. Realtek ALC889A codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for Dolby Home Theater
5. Support for S/PDIF In/Out
6. Support for CD In

LAN

1. 2 x Realtek 8111C chips (10/100/1000 Mbit)
2. Support for Teaming

Expansion Slots

1. 1 x PCI Express x16 slot
2. 1 x PCI Express x8 slot
(The PCIEx16 and PCIEx8 slots support ATI CrossFireX technology and conform to PCI Express 2.0 standard.)
3. 3 x PCI Express x1 slot
4. 2 x PCI slots
Storage Interface South Bridge:

1. 6 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3, SATAII4, SATAII5) supporting up to 6 SATA 3Gb/s devices
JMicron 368 chip:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
ITE8718 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

IEEE 1394a

1. T.I. TSB43AB23 chip
2. Up to 3 IEEE 1394a ports
(2 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

USB

1. Integrated in the South Bridge
2. Up to 12 USB 2.0/1.1 ports
(8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 6 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 2 x system fan headers
8. 1 x power fan header
9. 1 x front panel header
10. 1 x front panel audio header
11. 1 x CD In connector
12. 1 x S/PDIF In header
13. 1 x S/PDIF Out header
14. 2 x USB 2.0/1.1 headers
15. 1 x IEEE 1394a header
16. 1 x parallel port header
17. 1 x serial port header
18. 1 x power LED header
19. 1 x chassis intrusion header

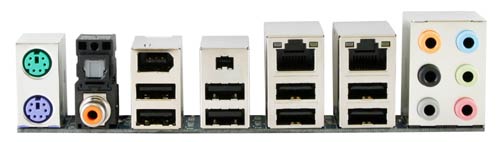

Back Panel Connectors

1. 1 x PS/2 mouse port
2. 1 x PS/2 keyboard/mouse port
3. 1 x optical S/PDIF Out connector
4. 1 x coaxial S/PDIF Out connector
5. 8 x USB 2.0/1.1 ports
6. 2 x IEEE 1394a ports
7. 2 x RJ-45 ports
8. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. iTE IT8718 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control

BIOS

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Dual BIOS
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune
8. Support for Dynamic Energy Saver Advanced
9. Support for Time Repair
10. Support for Q-Share

Bundle Software

1. Norton Internet Security (OEM version)

Operating System

1. Support for Microsoft/ Windows/ Vista/XP

Form Factor

1. ATX Form Factor; 30.5cm x 24.4cm
