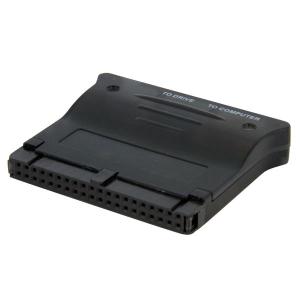

Startech Bi-Directional SATA IDE Adapter Converter PATA2SATA3

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure


Bi-directional adapter converts IDE to SATA or SATA to IDE


  • Bi-Directional support for IDE-to-SATA or SATA-to-IDE communication


  • Compatible with PATA (IDE) 100/133 MBps hard devices


  • Compatible with SATA revision 1/2/3 (1.5/3.0/6.0 Gbps) devices


The PATA2SATA3 is a bi-directional SATA IDE adapter/converter that lets you connect a Serial ATA drive to a legacy IDE port, or an IDE drive to a SATA motherboard port.


A cost-effective solution for upgrading existing IDE systems to support SATA hard drives or optical drives, the SATA/IDE adapter eliminates the expense of having to purchase a controller card while saving the expansion slot that would be required for card installation.


In addition to SATA hard drive installation, the adapter can be reversed in order to connect older IDE drives to a newer SATA-enabled motherboard, making it easy to retrieve old files from a previous system.


The StarTech.com Advantage
  • A single, versatile adapter can be used to connect an IDE device to a SATA motherboard or vice-versa without any drivers or software installation
  • Supports not only hard drives, but CD/DVD optical drives as well
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support

Applications
  • Connect newer SATA drives to an older motherboard with only IDE support
  • Connect an old IDE drive to a new SATA only motherboard to recover the data
  • Technicians who regularly need to work with both types of drives across different types of systems

Warranty Information

Warranty

2 Years

Hardware

Chipset ID

Sunplus - SPIF223A

Drive Size

2.5in & 3.5in

Number of Drives

1

Performance

Type and Rate

SATA I (1.5 Gbps)

Connector(s)

Connector Type(s)

1 - IDE (40 Pin, EIDE/PATA) Female

1 - SP4 (4 pin, Small Drive Power) Male

2 - SATA (7 pin, Data) Plug

Software

OS Compatibility

OS independent; No software or drivers required

Indicators

LED Indicators

1 - HDD Activity - Green

1 - Power - Red

Environmental

Humidity

90% RH

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-40°C to 150°C (-40°F to 302°F)

Physical Characteristics

Color

Black

Enclosure Type

Plastic

Product Height

0.4 in [11 mm]

Product Length

2.4 in [61 mm]

Product Weight

0.7 oz [20 g]

Product Width

2 in [50 mm]

Packaging Information

Shipping (Package) Weight

5.3 oz [150 g]

What's in the Box

Included in Package

1 - Bi-Directional SATA IDE Converter

1 - SATA Cable

1 - SP4 to Dual LP4 Y Power Adapter

1 - Instruction Manual



Bi-Directional SATA IDE Adapter Converter


Brand Name: StarTech.com
Connector on First End: IDE
Connector on Second End: Male SATA
Product Type: Data Transfer Adapter


Basic

Brand Name:

StarTech.com

Connector on First End:

IDE

Connector on Second End:

Male SATA

Product Type:

Data Transfer Adapter
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

PATA2SATA3

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Product Model:

PATA2SATA3

Product Name:

Bi-directional SATA IDE Adapter/Converter

Product Type:

Data Transfer Adapter
Miscellaneous

Additional Information:


OS independent: No software or drivers required


Green Compliant:

Yes
Physical Characteristics

Colour:

Black

Length:

61 mm

Weight (Approximate):

20 g

Width:

50 mm
Product Information

Length:

61 mm

Width:

50 mm
Technical Information

Connector on First End:

SP4 Power

Connector on Second End:

Male SATA

Length:

61 mm
