Startech x4 PCI Express to M.2 PCIe SSD Adapter PEX4M2E1

Features

Startech

pdf brochure downloadDownload Brochure


Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access


  • Boost system speed and performance by adding a PCIe M.2 SSD to your PC


  • Supports PCIe M.2 SSDs (NVMe and AHCI): 2242, 2260, 2280, and 22110 drives


  • Compatible with PCIe 3.0 motherboards, and backward compatible with PCIe 2.0 and PCIe 1.0


Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.


Boost your system speed and performance


The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.


Supports PCIe M.2 SSDs

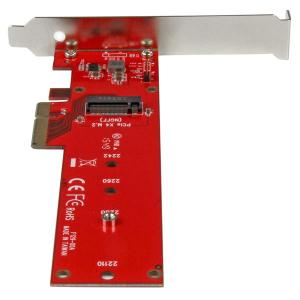

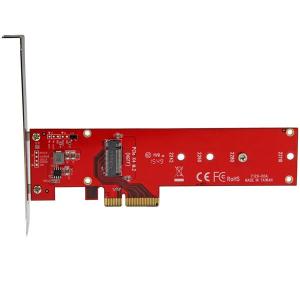

The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.


Easy to install

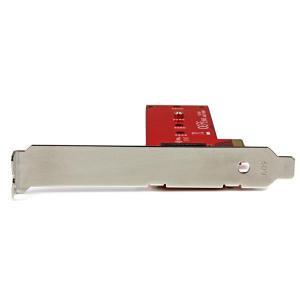

The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.


The PEX4M2E1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications
  • Connect a PCIe M.2 SSD to your computer through an available x4 PCI Express expansion slot to boost system speed and increase internal data storage
  • Get ultra-fast data access, ideal for gaming or high-performance workstations
  • Install your operating system on an M.2 PCIe based drive for fast access, while keeping larger platter drives available for bulk storage

Warranty Information

Warranty

2 Years

Hardware

Bus Type

PCI Express

Compatible Drive Types

M.2 (NGFF, M-Key, PCIe x4)

Drive Installation

Fixed

Drive Size

22m - M.2 NGFF

Interface

PCI Express

Number of Drives

1

Supported Drive Height(s)

2242

2260

2280

22110

Performance

Hot Swap Capability

No

Connector(s)

Drive Connectors

1 - M.2 (NGFF, M-Key, PCIe x4)

Host Connectors

1 - PCI Express x4 Male

Software

OS Compatibility

OS independent; No software or drivers required

Indicators

LED Indicators

1 - Pin header on board for drive LED connection

Environmental

Humidity

15% ~ 90% RH

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

Physical Characteristics

Color

Red

Max Drive Height

4.3 in [110 mm]

Product Height

7.2 in [184 mm]

Product Length

7 in [179 mm]

Product Weight

1.6 oz [46 g]

Product Width

4.8 in [121 mm]

Packaging Information

Shipping (Package) Weight

5.3 oz [150 g]

What's in the Box

Included in Package

1 - x4 PCI Express® to M.2 PCIe SSD Adapter

1 - low-profile bracket

1 - full-profile bracket (pre-installed)

1 - SSD standoff and installation screw

1 - quick start guide



X4 PCI EXPRESS TO M.2 PCIE SSD ADAPTER


Brand Name: StarTech.com
Product Type: M.2 to PCI Express Adapter


Basic

Brand Name:

StarTech.com

Product Type:

M.2 to PCI Express Adapter
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

PEX4M2E1

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

x4 PCI Express to M.2 PCIe SSD Adapter-M.2 NGFF SSD (NVMe or AHCI) Adapter Card

Product Type:

M.2 to PCI Express Adapter
Miscellaneous

Additional Information:
Hardware

Bus Type PCI Express

Compatible Drive Types (Type and Rate) M.2 (NGFF; M-Key; PCIe x4)

Drive Installation Fixed

Drive Size 22m - M.2 NGFF

Interface PCI Express

Number of Drives 1

Supported Drive Height(s):

2242

2260

2280

22110

Performance

Hot Swap Capability No


Connector(s)


Drive Connectors 1 - M.2 (NGFF; M-Key; PCIe x4)

Host Connectors 1 - PCI Express x4 Male

Software

OS Compatibility OS independent; No software or drivers required


Indicators


LED Indicators 1 - Pin header on board for drive LED connection


Environmental


Humidity 15% ~ 90% RH

Operating Temperature 5°C to 50°C (41°F to 122°F)

Storage Temperature -25°C to 70°C (-13°F to 158°F)

Physical Characteristics

Color Red

Certifications & Standards:
  • FCC
  • CE

Environmental Certification:

RoHS

WEEE

Environmentally Friendly:

Yes

Package Contents:
  • x4 PCI Express to M.2 PCIe SSD Adapter
  • 1 x Low-profile Bracket
  • 1 x Full-profile Bracket (pre-installed)
  • 1 x SSD Standoff and installation Screw
  • 1 x Quick Start Guide
Physical Characteristics

Colour:

Red

Height:

22.9 mm

Length:

177.8 mm

Weight (Approximate):

42.5 g

Width:

78.7 mm
Warranty

Limited Warranty:

2 Year
