Startech 3-Port M.2 SSD (NGFF) Adapter Card - 1 x PCIe (NVMe) M.2, 2 x SATA III M.2 - PCIe 3.0 PEXM2SAT32N1

Features

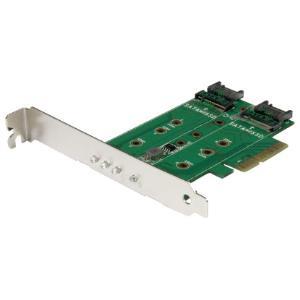

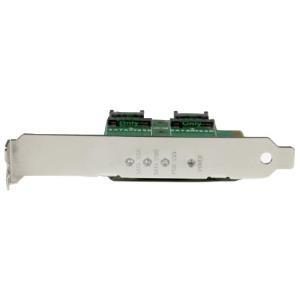

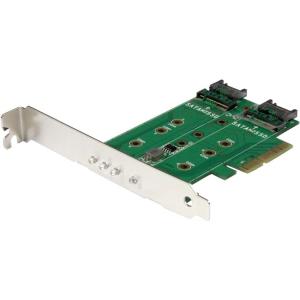

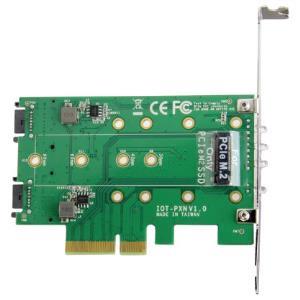

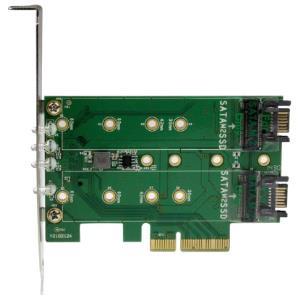

(Pictures are For Illustration Purposes Only)

Startech


Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card


  • Expand the storage and improve the performance of your computer, with slots for two M.2 SATA SSDs and one M.2 PCIe SSD


  • Supports PCI Express 3.0 (x4), ideal for a high-performance M.2 PCIe SSD (NVMe)


  • SATA slots feature a passthrough design, so your drives can connect to the SATA ports on your host PC


This 3-port M.2 SSD adapter card is one of the only cards that supports both PCIe and SATA-based M.2 SSDs (solid-state drives). It’s a versatile way to expand the overall storage capacity of your desktop PC or server. Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer.


Increase the storage of your desktop PC


If you need a simple and discreet way to expand your computer’s storage, then this card can help. The card provides a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. Now, you have a simple and effective way to expand the storage of your computer, regardless of the M.2 drive types you are using.


Optimize your computer’s performance


When you couple this card with a PCI Express based M.2 drive, you can give your computer’s performance a noticeable speed boost. With support for PCI Express 3.0 (up to approximately 40Gbps), you can install the latest high-performance M.2 PCIe SSDs inside your computer. With faster performance, you can get more work done in less time.


Peace of mind, with simple and cost-effective data recovery


Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed, but its M.2 drive is still functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes.


Leverage the size and speed of M.2 drives


This M.2 card lets you take advantage of the size and performance benefits of NGFF M.2 SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in small form-factor PCs and servers, or in tighter areas within your computer case.


Supports a wide range of drives


You can rest assured that your M.2 SSDs are compatible with the adapter card. It supports the most common drive sizes, including, 2280, 2260, 2242 and 2230.


The PEXM2SAT32N1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications
  • Increase the internal storage capacity of your standard or small form-factor computer
  • Access and recover data from almost any M.2 SSD, such as drives pulled from laptops and other computers
  • Optimize your system for I/O intensive applications such as office suites, photo and video editing, and media players
  • Install the card as a vital hardware component when upgrading or building your computer

Warranty Information

Warranty

2 Years

Hardware

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Industry Standards

Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)

PCI Express 3.0

Interface

M.2 SATA (NGFF)

SATA

M.2 PCIe (NVMe)

Port Style

Integrated on Card

Ports

3

Performance

ATAPI Support

Yes

Bootable

Yes

MTBF

50,000 Hours

Port Multiplier

No

RAID

No

Type and Rate

SATA III (6 Gbps)

Connector(s)

Connector Type(s)

1 - PCI Express x4 Male

Internal Ports

2 - M.2 (NGFF, B-Key) Receptacle

1 - M.2 (NGFF, M-Key, PCIe x4) Receptacle

2 - SATA (7 pin, Data) Plug

Software

OS Compatibility

OS Independent; No additional drivers or software required

Note: When installed in a compatible operating system, the card is natively supported and doesn’t require any additional drivers or software. However, your operating system must natively support PCIe SSDs (NVMe - Non-Volatile Memory Express).

Special Notes / Requirements
Note
The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane.

System and Cable Requirements

A computer enabled with PCI Express (PCIe), and an available PCI Express x4, x8, or x16 slot

One or two SATA host ports on the host computer (for example, the SATA controller
card, or the motherboard SATA ports inside of your computer)

An operating system that natively supports PCIe SSDs (NVMe), such as:

- Windows® 7 and later

- Mac OS 10.10.3 and later

Indicators

LED Indicators

3 - M.2 drive status/activity

1 - Power

Environmental

Humidity

20%~80% RH (Non-condensing)

Operating Temperature

5°C to 50°C (41°F to 122°F)

Storage Temperature

-25°C to 70°C (-13°F to 158°F)

Physical Characteristics

Product Height

4.7 in [120 mm]

Product Length

4.7 in [120 mm]

Product Weight

1.6 oz [46 g]

Product Width

0.8 in [20 mm]

Packaging Information

Shipping (Package) Weight

4.3 oz [122 g]

What's in the Box

Included in Package

1 - 3-port M.2 NGFF SSD adapter card

1 - low-profile bracket

3 - M.2 mounting screws

3 - M.2 mounting standoffs

3 - M.2 mounting nuts

1 - screwdriver

1 - quick-start guide



3-Port M.2 SSD (NGFF) Adapter Card - 1 x PCIe (NVMe) M.2 2 x SATA III M.2 - PCIe 3.0 - PCI Express 3.0 M.2 NGFF Card - SSD Host Card


Brand Name: StarTech.com
Product Type: M.2 to PCI Express Adapter


Basic

Brand Name:

StarTech.com

Product Type:

M.2 to PCI Express Adapter
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

PEXM2SAT32N1

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

3-port M.2 NGFF SSD Adapter Card

Product Type:

M.2 to PCI Express Adapter
Miscellaneous

Additional Information:
  • Bus Type PCI Express
  • Card Type Standard Profile (LP bracket incl.)
  • Industry Standards Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
  • PCI Express 3.0
  • Interface M.2 SATA (NGFF)
  • SATA
  • M.2 PCIe (NVMe)
  • Port Style Integrated on Card
  • Ports 3
  • ATAPI Support Yes
  • Bootable Yes
  • MTBF 50,000 Hours
  • Port Multiplier No
  • RAID No
  • Type and Rate SATA III (6 Gbps)
  • Connector Type(s) 1 - PCI Express x4 Male
  • Internal Ports:
  • 3 - M.2 (NGFF; B-Key) Receptacle
  • 2 - SATA (7 pin; Data) Plug
  • Humidity 20%~80% RH (Non-condensing)
  • Operating Temperature 5°C to 50°C (41°F to 122°F)
  • Storage Temperature -25°C to 70°C (-13°F to 158°F)

Environmental Certification:

RoHS

WEEE

Environmentally Friendly:

Yes

Package Contents:
  • 3-port M.2 NGFF SSD Adapter Card
  • 1 x Low-Profile Bracket
  • 3 x M.2 Mounting Screws
  • 3 x M.2 Mounting Standoffs
  • 3 x M.2 Mounting Nuts
  • 1 X Screw Driver
  • 1 X Quick Start Guide
Physical Characteristics

Height:

119.4 mm

Length:

99.1 mm

Weight (Approximate):

99.2 g

Width:

20.3 mm
Warranty

Limited Warranty:

2 Year
