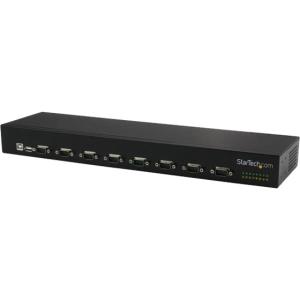

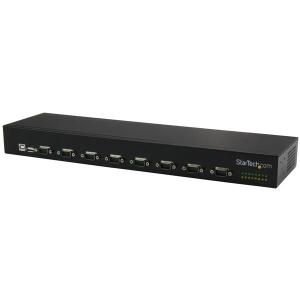

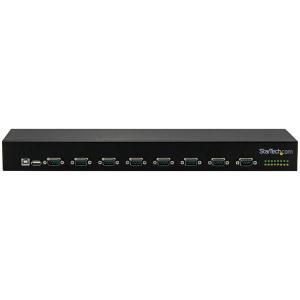

Startech 8-Port USB-to-Serial Adapter Hub ICUSB23208FD

Features

(Pictures are For Illustration Purposes Only)

Startech


Convert a single USB port into eight serial ports, and connect multiple hubs together for a scalable solution


  • Gain eight RS232 serial port interfaces through a single USB port


  • Connect multiple hubs together through daisy chain functionality


  • 921.6Kbps baud rate per port


This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.


A scalable solution for changing needs


This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.


Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.


Built-in convenience


The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.


The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.


Meets the demands of industrial environments


With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.


The ICUSB23208FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications
  • Ideal for industrial automation on factory and manufacturing floors
  • Provides full control of your server room serial components from a single device
  • Control and monitoring of surveillance and security cameras and systems
  • Self-service automated machines and kiosks (grocery, airport) to control serial devices such as scales, touchscreens, magnetic-card readers, barcode scanners, receipt printers, label printers
  • POS control of keyboards, cash drawers, receipt printers, card readers and card swipes, scales, and elevated displays on poles
  • Bank teller workstations, in either full-profile or low-profile versions, to control serial devices such as cash drawers, card readers and card swipes, printers, keypads and pin pads, pen pads

Warranty Information

Warranty

2 Years

Hardware

Bus Type

USB 2.0

Chipset ID

FTDI - FT4232

Interface

Serial

Port Style

External Hub

Ports

8

Performance

Data Bits

7, 8

FIFO

256 Bytes

Max Baud Rate

921.6 Kbps

Maximum Data Transfer Rate

480 Mbps

Parity

Odd, Even, Mark, Space, None

Serial Protocol

RS-232

Stop Bits

1, 2

Connector(s)

Connector Type(s)

1 - USB B (4 pin) Female

8 - DB-9 (9 pin, D-Sub) Male

Indicators

LED Indicators

8 - Data Transmit

8 - Data Receive

Power

Center Tip Polarity

Positive

Input Current

1.5 A

Input Voltage

100 ~ 240 AC

Output Current

3 A

Output Voltage

12 DC

Plug Type

B

Power Consumption (In Watts)

36

Environmental

Humidity

20~80% RH (Non-condensing)

Operating Temperature

-40°C to 85°C (-40°F to 185°F)

Storage Temperature

-65°C to 150°C (-85°F to 302°F)

Physical Characteristics

Cable Length

35.4 in [900 mm]

Color

Black

Enclosure Type

Aluminum

Product Height

1.8 in [45 mm]

Product Length

16.9 in [430 mm]

Product Weight

48.2 oz [1365 g]

Product Width

4.7 in [120 mm]

Packaging Information

Shipping (Package) Weight

74.1 oz [2100 g]

What's in the Box

Included in Package

1 - 8-port USB to RS232 hub

1 - USB 2.0 cable

2 - rack-mounting brackets

8 - rack-mounting screws

2 - DIN-rail mounting brackets

4 - DIN-rail mounting screws

4 - washers

4 - nuts

1 - universal power adapter (NA/JP, UK, EU, ANZ)

1 - driver CD

1 - terminal block plug

1 - quick-start guide



8 Port USB-to-Serial Adapter Hub - USB to RS232 Serial Port Adapter with Daisy Chain - Rackmount - RS232 Multiplexer - Serial Converter with FTDI chipset and COM Port Retention


Brand Name: StarTech.com
Form Factor: External
Host Interface: USB 2.0
Number of Serial Ports (External): 8
Product Type: Serial Hub


Basic

Brand Name:

StarTech.com

Form Factor:

External

Host Interface:

USB 2.0

Number of Serial Ports (External):

8

Product Type:

Serial Hub
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

ICUSB23208FD

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

8-Port USB-to-Serial Adapter Hub

Product Type:

Serial Hub
Interfaces/Ports

Number of Serial Ports (External):

8
Miscellaneous

Environmentally Friendly:

Yes
Physical Characteristics

Depth:

429.3 mm

Form Factor:

External

Height:

45.7 mm

Weight (Approximate):

1.37 kg

Width:

119.4 mm
Technical Information

Host Interface:

USB 2.0

Platform Supported:

Linux

Mac

PC
