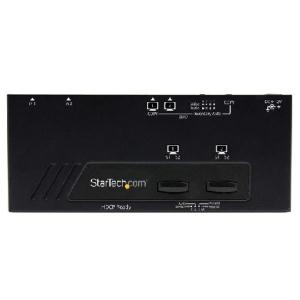

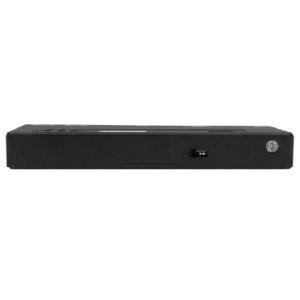

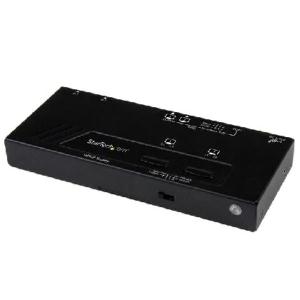

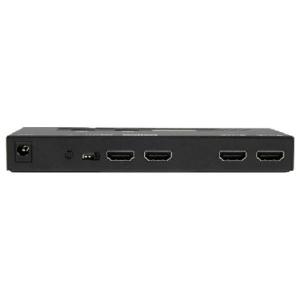

Startech 2X2 HDMI Matrix Switch w/ Automatic and Priority Switching – 1080p VS222HDQ

Features

Startech

pdf brochure downloadDownload Brochure


Discover hassle-free HDMI connection and automatic video port selection with high-definition picture quality


  • Auto switching


  • Priority switching


  • Built-in manual control console


  • 2x2 Matrix switching


Save time and hassle by automatically switching between your HDMI audio/video sources, using the VS222HDQ 2X2 HDMI Matrix Switcher. This easy-to-use HDMI Matrix switch ensures seamless transition while switching video and display sources, with EDID copy maintaining your video resolution.


Seamless Signal Selection


Ensure seamless transition while switching video sources, with EDID copy maintaining native resolution with support for 1080p. Video connection emulation ensures the settings on any connected computers are not disrupted while switching to a different video source.


Effortless Control


Save time by connecting two HDMI video source devices to two independent HDMI displays instead of manually connecting individual cables. Mounting hardware is also included for a tidy, professional installation.


Versatile Switching Options


Enjoy hassle-free operation with four different switching modes:

Automatic port selection: Enables your most recently activated video source to be displayed automatically.

Priority port selection: Prioritizes input number two above input number one. If the video source connected to input number two is activated that source will be displayed.

Matrix port selection: Independently switch two displays between two video sources.

Manual port selection: Enables you to manually select your HDMI source with easy-to-use front panel buttons.


The StarTech.com Advantage
  • Save your time, by conveniently accessing multiple HDMI source devices with 2 independent HDMI displays
  • Hassle-free operation, with four video selection modes including automatic, priority, matrix and manual
  • Worry-free switching, with EDID copy video and connection emulation ensuring no signal loss

Applications
  • Connect and switch between two video sources and two displays on a test bench, for troubleshooting computers
  • Switch between different video sources on your digital signage display in hospitals, shopping centers, or schools
  • Run multimedia presentations with supporting data displayed on another monitor in business conference rooms or at trade shows
  • Automatically switch between your Blu-ray player, set top box, or gaming console in a home theatre environment

Warranty Information

Warranty

2 Years

Hardware

Audio

Yes

Cabling

HDMI

Output Signal

HDMI

Ports

2

Rack-Mountable

Yes

Performance

Audio Specifications

7.1 surround sound

Max Distance

10 m / 33 ft

Maximum Digital Resolutions

1920x1200 / 1080p

Supported Resolutions

1920x1200

1920x1080 (1080p)

1280x720 (720p)

Wide Screen Supported

Yes

Connector(s)

Connector A

2 - HDMI (19 pin) Female

Connector B

2 - HDMI (19 pin) Female

Indicators

LED Indicators

1 - Display #1 - source #1 activated

1 - Display #1 - source #2 activated

1 - Display #2 - source #1 activated

1 - Display #2 - source #2 activated

Power

Input Current

0.6 A

Input Voltage

100 ~ 240 AC

Output Current

1.5 A

Output Voltage

12 DC

Plug Type

M

Power Consumption (In Watts)

18

Power Source

AC Adapter Included

Environmental

Humidity

0%~80%

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Color

Black

Enclosure Type

Aluminum and Plastic

Product Height

0.8 in [20 mm]

Product Length

6.2 in [157 mm]

Product Weight

10.2 oz [290 g]

Product Width

2.6 in [65 mm]

Packaging Information

Shipping (Package) Weight

19.2 oz [545 g]

What's in the Box

Included in Package

1 - HDMI matrix switch

1 - remote control

1 - universal power adapter (NA, EU, UK, AU)

1 - foot pad set

1 - mounting kit

1 - instruction manual



2X2 HDMI Matrix Switch with Automatic and Priority Switching 2 In 2 Out HDMI Matrix Splitter Switcher Box with Auto and Priority Selector 1080p


Brand Name: StarTech.com
Connectivity Technology: Cable
Device Supported: Blu-ray Disc Player
Device Supported: Display
Device Supported: Gaming Console
Device Supported: Set-top Box
Form Factor: Rack-mountable
HDMI In: Yes
HDMI Out: Yes
Maximum Operating Distance: 10 m
Number of Displays Supported: 2
Number of HDMI Inputs: 2
Number of Input Devices Supported: 2
Product Type: Audio/Video Switchbox


Basic

Brand Name:

StarTech.com

Connectivity Technology:

Cable

Device Supported:

Blu-ray Disc Player

Display

Gaming Console

Set-top Box

Form Factor:

Rack-mountable

HDMI In:

Yes

HDMI Out:

Yes

Maximum Operating Distance:

10 m

Number of Displays Supported:

2

Number of HDMI Inputs:

2

Number of Input Devices Supported:

2

Product Type:

Audio/Video Switchbox
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

VS222HDQ

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

2X2 HDMI Matrix Switch w/ Automatic and Priority Switching - 1080p

Product Type:

Audio/Video Switchbox
Interfaces/Ports

HDMI In:

Yes

HDMI Out:

Yes

Number of HDMI Inputs:

2

Number of HDMI Outputs:

2
Media & Performance

Maximum Operating Distance:

10 m
Miscellaneous

Certifications & Standards:
  • CE
  • FCC

Environmentally Friendly:

Yes
Physical Characteristics

Colour:

Black

Depth:

157 mm

Form Factor:

Rack-mountable

Height:

20 mm

Weight (Approximate):

290 g

Width:

65 mm
Power Description

Input Voltage:

12 V DC

120 V AC

230 V AC
Technical Information

Connectivity Technology:

Cable

Device Supported:

Blu-ray Disc Player

Display

Gaming Console

Set-top Box

Number of Displays Supported:

2

Number of Input Devices Supported:

2
Video

Graphics Modes:

Full HD

Maximum Video Resolution:

1920 x 1200
