Startech 2 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART PEX2S553

Features

Startech

pdf brochure downloadDownload Brochure


Add 2 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot


  • Two high speed RS232 serial ports with support for data transfer rates up to 460.8 Kbps


  • Compliant with PCI Express base specifications revision 1.0a


  • Includes half-height/low profile mounting bracket

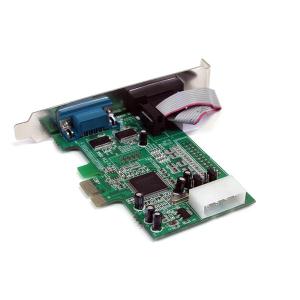

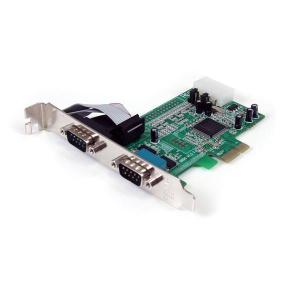

The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards.


The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4 and above.


Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.


This product is a replacement for our PEX2S552 card.


Backed by a StarTech.com Lifetime warranty and free lifetime technical support.


The StarTech.com Advantage
  • Native single-chip, single lane PCI Express chipset delivers true PCIe performance
  • Standard and low profile/half-height bracket included to ensure fitment in any system
  • Easy to install and use with full step-by-step instructions saving time and hassle

Applications
  • Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
  • POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
  • Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
  • Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
  • Used to control multiple surveillance / security cameras in a parking structure, office building, etc.

Warranty Information

Warranty

2 Years

Hardware

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Chipset ID

ASIX/MosChip - MCS9922CV-AA

Interface

Serial

Port Style

Integrated on Card

Ports

2

Performance

FIFO

128 Bytes

Max Baud Rate

460.8 Kbps

Serial Protocol

RS-232

Connector(s)

Connector Type(s)

1 - PCI Express x1 Male

External Ports

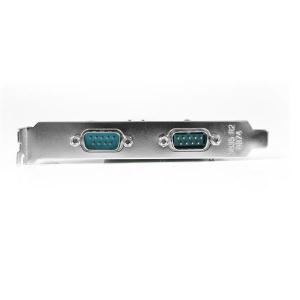

2 - DB-9 (9 pin, D-Sub) Male

Internal Ports

1 - LP4 (4 pin, Molex Large Drive Power) Male

Software

OS Compatibility

Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10

Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016

Mac OS X® 10.4 to 10.10

Linux kernel 2.6.x to 4.4.x LTS Versions only

Special Notes / Requirements
Note
Selectable power output on pin 9 of the serial port

Environmental

Humidity

5~85% RH

Operating Temperature

-10°C to 80°C (14°F to 176°F)

Storage Temperature

-20°C to 100°C (-4°F to 212°F)

Physical Characteristics

Color

Green

Product Height

0.8 in [20 mm]

Product Length

4.1 in [105 mm]

Product Weight

2.2 oz [63.5 g]

Product Width

4.7 in [120 mm]

Packaging Information

Shipping (Package) Weight

0.4 lb [0.2 kg]

What's in the Box

Included in Package

1 - 2 Port PCI-Express Serial Card

2 - Low Profile Brackets

1 - Driver CD

1 - Instruction Manual



2 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART


Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express
Product Type: Serial Adapter


Basic

Brand Name:

StarTech.com

Form Factor:

Plug-in Card

Host Interface:

PCI Express

Product Type:

Serial Adapter
Drive Performance

Data Transfer Rate:

460.80 kbit/s
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

PEX2S553

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Package Contents:
  • 2 Port PCIe Serial Adapter Card with 16550
  • Standard and Low profile/half-height Bracket

Product Model:

PEX2S553

Product Name:

2 Port PCIe Serial Adapter Card with 16550

Product Type:

Serial Adapter
Input Devices

Data Transfer Rate:

460.80 kbit/s
Interfaces/Ports

Host Interface:

PCI Express
Media & Performance

Data Transfer Rate:

460.80 kbit/s
Miscellaneous

Additional Information:
  • Native single-chip, single lane PCI Express chipset delivers true PCIe performance.
  • Standard and low profile/half-height bracket included to ensure fitment in any system.
  • Easy to install and use with full step-by-step instructions saving time and hassle.

Form Factor:

Plug-in Card

Green Compliance Certificate/Authority:

RoHS

Green Compliant:

Yes

Package Contents:
  • 2 Port PCIe Serial Adapter Card with 16550
  • Standard and Low profile/half-height Bracket

Platform Supported:

PC
Physical Characteristics

Card Height:

Dual-profile

Form Factor:

Plug-in Card

Platform Supported:

PC
Product Information

Form Factor:

Plug-in Card

Platform Supported:

PC
Storage

Data Transfer Rate:

460.80 kbit/s
Technical Information

Data Transfer Rate:

460.80 kbit/s

Host Interface:

PCI Express

Platform Supported:

PC

UART Type:

16550
Warranty

Limited Warranty:

2 Year
