Startech 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation ICUSB422IS

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure


Add an R422/485 serial port to your laptop or desktop computer through USB


  • Provides one RS422/485 port while powering the device through USB


  • RS-485 mode supports Auto Transceiver Turn Around (ATTA)


  • Compatible with both USB 2.0 and USB 1.1

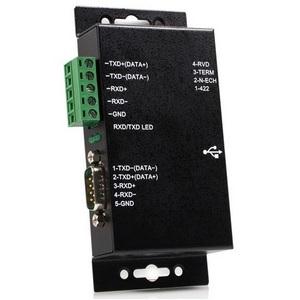

The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block.


The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices.


The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


The StarTech.com Advantage
  • Supports RS-485 and RS-422 serial interfaces via DB9 or Terminal Block connections for versatile connection options
  • Circuit isolation provides electrical protection for sensitive, and often expensive industrial equipment
  • Rugged, USB Bus powered enclosure requiring no external power adapter for simple integration into harsh industrial environments

Applications
  • POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
  • Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
  • Hotel Front Desk (serial printers, bar code scanners, keyboard, mouse, receipt printer, credit/debit card reader)
  • Hospitality/Restaurant (credit card/debit card reader, serial printers)
  • Hospital (monitoring equipment, nurses' stations)
  • Security (UPS control, access key panels, video cameras, card readers)

Warranty Information

Warranty

2 Years

Hardware

Bus Type

USB 2.0

Chipset ID

FTDI - FT232RL

Interface

Serial

Port Style

External Hub

Ports

1

Performance

Data Bits

7, 8

FIFO

256 Bytes

Isolation

2500 Vrms

Max Baud Rate

921.6 Kbps

Parity

Even, Odd, Mark, Space, None

Serial Protocol

RS-422/485

Stop Bits

1, 2

Surge Protection

500W

Connector(s)

Connector Type(s)

1 - USB B (4 pin) Female

External Ports

1 - DB-9 (9 pin, D-Sub) Male

1 - Terminal Block (5 Wire)

Software

OS Compatibility

Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10

Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016

Mac OS® 10.6 to 10.12

Linux 2.4.x to 4.4.x LTS Versions only

Power

Input Current

200mA

Input Voltage

5 DC

Power Source

USB-Powered

Environmental

Humidity

5~95% RH

Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-20°C to 85°C (-4°F to 185°F)

Physical Characteristics

Cable Length

6 ft [1.8 m]

Color

Black

Enclosure Type

Steel

Product Height

0.9 in [23 mm]

Product Length

4.6 in [118 mm]

Product Weight

6.4 oz [180 g]

Product Width

2.5 in [64 mm]

Packaging Information

Shipping (Package) Weight

0.9 lb [0.4 kg]

What's in the Box

Included in Package

1 - USB to RS422/485 Converter

1 - 6ft USB A to B Cable

1 - Driver CD

1 - User Manual



1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation


Brand Name: StarTech.com
Form Factor: Desktop
Number of Serial Ports: 1
Number of USB Ports: 1
Product Type: Device Server
Serial Port: Yes


Basic

Brand Name:

StarTech.com

Form Factor:

Desktop

Number of Serial Ports:

1

Number of USB Ports:

1

Product Type:

Device Server

Serial Port:

Yes
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

ICUSB422IS

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

50

Product Model:

ICB422IS

Product Name:

1 Port USB to RS422/RS485 Serial Adapter

Product Type:

Device Server
Interfaces/Ports

Number of Serial Ports:

1

Number of USB Ports:

1

Serial Port:

Yes

USB:

Yes
Miscellaneous

Additional Information:
  • Data Bits: 7,8
  • Dip Switch Configuration


Operating System:

  • Windows 98SE
  • Windows ME
  • Microsoft Windows XP
  • Microsoft Windows 2000
  • Microsoft Windows 2003
  • Microsoft Windows Vista

Form Factor:

Desktop

Green Compliance Certificate/Authority:

RoHS

Green Compliant:

Yes
Physical Characteristics

Depth:

230.9 mm

Form Factor:

Desktop

Height:

928.1 mm

Weight (Approximate):

300 g

Width:

540 mm
Product Information

Form Factor:

Desktop

Packaged Quantity:

50

Width:

540 mm
Technical Information

USB:

Yes
Warranty

Limited Warranty:

2 Year
