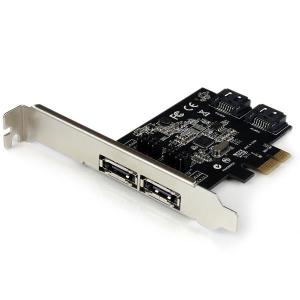

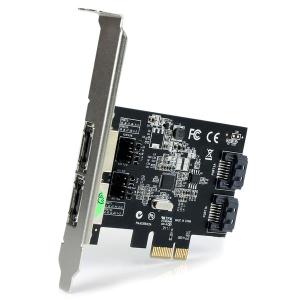

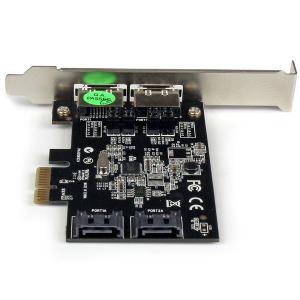

Startech 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext PEXESAT322I

Features

Startech

pdf brochure downloadDownload Brochure


Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot


  • Two internal/external switchable SATA ports


  • Compliant with SATA revision 3.0, which can support up to 6Gbps of bandwidth


  • Support for SATA-based optical drives (CD/DVD/BD)


The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.


The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.


The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).


The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.


The StarTech.com Advantage
  • This PCIe SATA controller card has two SATA channels that can be independently switched between the internal or external (eSATA) ports as needed
  • This versatile add-in card offers SATA III connectivity (6Gbps), while remaining backward compatible with SATA I (1.5Gbps) and II (3Gbps) device connections, which helps eliminate the expense of having to upgrade drives
  • Includes both a full and low profile/half-height bracket for installation into any size of desktop computer

Applications
  • Upgrade an older PCIe-based system with SATA 6Gbps connectivity, to better utilize faster SATA drives
  • Add more internal SATA ports to a computer system, for connecting additional storage drives and/or optical drives
  • Add internal and/or external SATA III ports to a computer through a single PCI Express slot, with the option to change the available connections to external/internal, as needed based on updated system requirements or applications

Warranty Information

Warranty

2 Years

Hardware

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Chipset ID

ASMEDIA ASM1061

Interface

eSATA & SATA

Port Style

Integrated on Card

Ports

2

Performance

ATAPI Support

Yes

Bootable

Yes

LBA support

48-bit

Number of Drives Supported Through Port Multiplier

1 to 4

Number of Ports That Support Port Multiplier

2 (can use 2 PM at a time)

Port Multiplier

Yes

RAID

No

Type and Rate

SATA III (6 Gbps)

Connector(s)

Connector Type(s)

1 - PCI Express x1 Male

External Ports

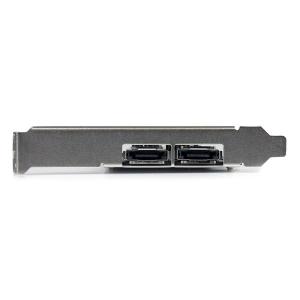

2 - eSATA (7 pin, Data) Plug

Internal Ports

2 - SATA (7 pin, Data) Plug

Software

OS Compatibility

Windows® XP, Vista, 7, 8, 8.1, 10

Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016

Environmental

Humidity

5% ~ 85% RH

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Product Height

0.8 in [20 mm]

Product Length

4.8 in [121 mm]

Product Weight

1.6 oz [44 g]

Product Width

3.6 in [92 mm]

Packaging Information

Shipping (Package) Weight

5.3 oz [151 g]

What's in the Box

Included in Package

1 - PCIe SATA Controller

1 - SATA Cable

1 - Low Profile Bracket

1 - Driver CD

1 - Instruction Manual



2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext - SATA III 6Gbps PCI-e Card


Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express x1
Number of Ports: 2
Product Type: Serial ATA Controller


Basic

Brand Name:

StarTech.com

Form Factor:

Plug-in Card

Host Interface:

PCI Express x1

Number of Ports:

2

Product Type:

Serial ATA Controller
Drive Performance

Data Transfer Rate:

48 Gbit/s
Drivetrain

Drive Type:

Serial ATA/600
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

PEXESAT322I

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

2-port Serial ATA Controller

Product Type:

Serial ATA Controller
Input Devices

Data Transfer Rate:

48 Gbit/s
Interfaces/Ports

Host Interface:

PCI Express x1

Ports:

2 x 7-pin Female Serial ATA Internal
Media & Performance

Data Transfer Rate:

48 Gbit/s
Miscellaneous

Compatibility:


OS Compatibility:

  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
  • Windows Server® 2012, 2008 R2, 2003

Form Factor:

Plug-in Card

Platform Supported:

PC
Physical Characteristics

Dimensions:

66 mm Height x 121.9 mm Width x 20.3 mm Thickness

Drive Type:

Serial ATA/600

Form Factor:

Plug-in Card

Height:

66 mm

Platform Supported:

PC

Thickness:

20.3 mm

Weight (Approximate):

59.5 g

Width:

121.9 mm
Product Information

Compatibility:


OS Compatibility:

  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
  • Windows Server® 2012, 2008 R2, 2003

Drive Type:

Serial ATA/600

Form Factor:

Plug-in Card

Packaged Quantity:

1

Platform Supported:

PC

Thickness:

20.3 mm

Width:

121.9 mm
Storage

Data Transfer Rate:

48 Gbit/s
Technical Information

Data Transfer Rate:

48 Gbit/s

Drive Type:

Serial ATA/600

Host Interface:

PCI Express x1

Platform Supported:

PC

Ports:

2 x 7-pin Female Serial ATA Internal
