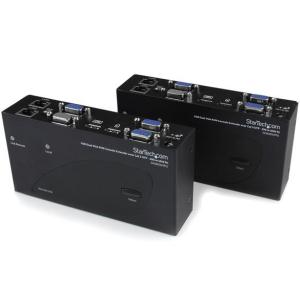

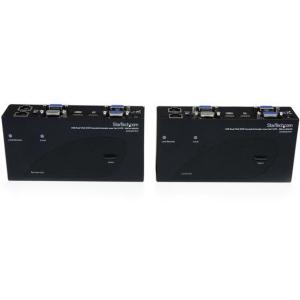

Startech USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m SV565DUTPU

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure


Operate a Dual VGA, USB-enabled PC up to 650ft away, as if it was installed locally


  • Dual VGA KVM extender at 1920x1200 resolution


  • Can be used with a single computer or connected to an existing KVM switch


  • Extend up to 650 ft. (200 m) using 2 industry-standard UTP network cables


The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.


The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.


Backed by a StarTech.com 3-year warranty and free lifetime technical support.


The StarTech.com Advantage
  • Low cost way to convert existing dual VGA KVM units, or individual Servers into remotely accessible hardware extending your hardware’s capabilities
  • Maintain network security with long distance local access without being exposed over IP
  • Broad support for newer USB keyboards, mice, and even most combo/wireless configurations

Applications
  • Ideal for controlling a PC in an area where fan or hard drive noise is unacceptable such as a television broadcast studio
  • Control/Monitor a remote server from a harsh environment where the PC would not function properly due to heat/dust/etc. (factory, warehouse, mining, etc.)
  • Can act as a thin client for power users controlling powerful rack mounted servers as their desktop machines
  • Use one or more servers in a server room from a remote location within the same building or campus

Warranty Information

Warranty

3 Years

Hardware

Audio

No

Cables Included

Yes

KVM Ports

2

Number of Monitors Supported

2

PC Interface

USB

PC Video Type

VGA

Rack-Mountable

No

Performance

IP Control

No

Max Transfer Distance

200 m (656 ft)

Maximum Analog Resolutions

1920x1200

MTBF

65,000 hrs

Supported Resolutions

1920x1200 @ 650 ft (200m)

Connector(s)

Console Interface(s)

2 - USB Type-A (4 pin) USB 2.0 Female

2 - VGA (15 pin, High Density D-Sub) Female

Host Connectors

2 - VGA (15 pin, High Density D-Sub) Female

Other Interface(s)

2 - RJ-45 Female

Software

OS Compatibility

OS independent; No software or drivers required

Special Notes / Requirements

Note

Product weights/measurements and connector types indicate a single unit only (either Host or Remote)

Power

Center Tip Polarity

Positive

Input Current

0.2A

Input Voltage

110V-240V AC

Output Current

0.6A

Output Voltage

9 DC

Plug Type

M

Power Consumption (In Watts)

5.4

Power Source

AC Adapter Included

Environmental

Humidity

0~80% RH

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-10°C to 60°C (14°F to 140°F)

Physical Characteristics

Color

Black

Enclosure Type

Steel

Product Height

1.6 in [40 mm]

Product Length

6.1 in [155 mm]

Product Weight

18.9 oz [535 g]

Product Width

3.1 in [80 mm]

Packaging Information

Shipping (Package) Weight

5 lb [2.3 kg]

What's in the Box

Included in Package

1 - local unit

1 - remote unit

2 - 6 ft 2-in-1 USB VGA KVM cables

1 - universal power adapter (NA/EU/UK/AU)

8 - rubber feet

1 - instruction manual



USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m - VGA KVM Extender with Resolutions up to 1920x1200


Brand Name: StarTech.com
Connectivity Technology: Wired
KVM Technology: Analog
Maximum Operating Distance: 198.12 m
Network (RJ-45): Yes
Number of Computers Supported: 1
Product Type: KVM Console/Extender
USB: Yes
VGA: Yes


Basic

Brand Name:

StarTech.com

Connectivity Technology:

Wired

KVM Technology:

Analog

Maximum Operating Distance:

198.12 m

Network (RJ-45):

Yes

Number of Computers Supported:

1

Product Type:

KVM Console/Extender

USB:

Yes

VGA:

Yes
Camera

Maximum Video Resolution:

1920 x 1200
Display & Graphics

Graphic Mode:

WUXGA

Maximum Video Resolution:

1920 x 1200
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

SV565DUTPU

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m

Product Type:

KVM Console/Extender

Graphic Mode:

WUXGA
Interfaces/Ports

Network (RJ-45):

Yes

Number of Network (RJ-45) Ports:

2

Number of USB Ports:

2

Number of VGA Ports:

4

USB:

Yes

VGA:

Yes
Media & Performance

Connectivity Technology:

Wired

Maximum Operating Distance:

198.12 m
Miscellaneous

Green Compliant:

Yes
Network & Communication

Connectivity Technology:

Wired
Power Description

Input Voltage:

110 V AC
Product Information

Packaged Quantity:

1
Technical Information

Connectivity Technology:

Wired

KVM Technology:

Analog

Maximum Operating Distance:

198.12 m

Number of Computers Supported:

1

Number of Network (RJ-45) Ports:

2

USB:

Yes
Video

Graphic Mode:

WUXGA

Maximum Video Resolution:

1920 x 1200
