Startech 4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART PEX4S553

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure


Add 4 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot


  • Four high speed RS232 serial ports, with support for data transfer rates up to 128000bps


  • 256-byte deep FIFO per transmitter and receiver


  • Native single-Chip, single lane PCI Express

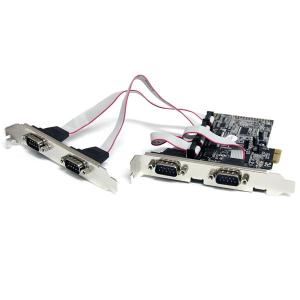

The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.


Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.


The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.


Backed by a StarTech.com Lifetime warranty and free lifetime technical support.


The StarTech.com Advantage
  • Native single-chip, single lane PCI Express chipset delivers true PCIe performance, up to 48% more efficient than bridge chip designs
  • Standard and low profile/half-height brackets included to ensure fitment in any system

Applications
  • POS retail applications in grocery stores, and any other retail store to control keyboards, cash drawers, receipt printers, card readers / card swipes, scales, and elevated displays on poles
  • Bank teller workstations in either full profile or low profile versions to control their serial devices such as cash drawers, card readers / card swipes, printers, keypads / pinpads, pen pads
  • Self-service automated machines and kiosks to control serial devices such as scales, touchscreens, magnetic card readers, bar code scanners, receipt printers, label printers
  • Standard ATM automated teller machines to control keypads, receipt printer, card readers / card swipes, touchscreen LCD's, camera control, etc.
  • Used to control multiple surveillance / security cameras in a parking structure, office building, etc.

Warranty Information

Warranty

Lifetime

Hardware

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Chipset ID

ASIX/MosChip - MCS9904CV-AA

Interface

Serial

Port Style

Integrated on Card

Ports

4

Performance

Data Bits

5, 6, 7, 8

FIFO

256 bytes

Max Baud Rate

128 Kbps

MTBF

26,280 Hours

Parity

5, 6, 7, 8

Serial Protocol

RS-232

Connector(s)

Connector Type(s)

1 - PCI Express x1 Male

External Ports

4 - DB-9 (9 pin, D-Sub) Male

Software

Microsoft WHQL Certified

Yes

OS Compatibility

Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10

Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016

Mac OS® 10.4 to 10.10

Linux 3.5.x to 4.4.x LTS Versions Only

Environmental

Humidity

5~85% RH

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-20°C to 60°C (4°F to 140°F)

Physical Characteristics

Color

Green

Product Height

0.7 in [19 mm]

Product Length

4.7 in [120 mm]

Product Weight

2.8 oz [80 g]

Product Width

5.1 in [130 mm]

Packaging Information

Shipping (Package) Weight

0.5 lb [0.2 kg]

What's in the Box

Included in Package

1 - 4 Port PCI-Express RS-232 Serial Card

1 - Bracket with 2 DB9 male ports

4 - Low Profile Brackets

1 - Driver CD

1 - Instruction Manual



4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART


Brand Name: StarTech.com
Form Factor: Plug-in Card
Host Interface: PCI Express x1
Number of Serial Ports (External): 4
Product Type: Serial Adapter


Basic

Brand Name:

StarTech.com

Form Factor:

Plug-in Card

Host Interface:

PCI Express x1

Number of Serial Ports (External):

4

Product Type:

Serial Adapter
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

PEX4S553

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

4 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART

Product Type:

Serial Adapter
Interfaces/Ports

Number of Serial Ports (External):

4
Physical Characteristics

Card Height:

Dual-profile

Form Factor:

Plug-in Card

Height:

17.8 mm

Length:

119.4 mm

Weight (Approximate):

79.4 g

Width:

129.5 mm
Technical Information

Data Transfer Rate:

1 Mbit/s

Host Interface:

PCI Express x1

Platform Supported:

PC

UART Type:

16550

16C450
Warranty

Limited Warranty:

2 Year
