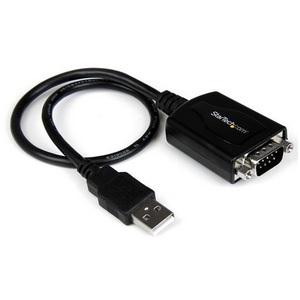

Startech 1 ft USB to RS232 Serial DB9 Adapter Cable with COM Retention ICUSB232PRO

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure


Add an RS-232 serial port to your laptop or desktop computer through USB; features COM port retention


  • USB to Straight-Through RS232 Serial Adapter


  • Supports data transfer rates of up to 920kpbs


  • COM Port assignments maintained across reboot


The ICUSB232PRO 1 ft USB to RS232 Serial DB9 Adapter Cable with COM Retention offers a professional grade solution for connecting legacy or industrial RS232 serial devices to a laptop or desktop computer through USB - eliminating the expense of upgrading serial peripherals for compatibility.


A time-saving and convenient USB/Serial solution, the adapter retains assigned serial COM port values in nonvolatile memory, allowing the same values to automatically be assigned to the adapter serial port if disconnected and reconnected, or disconnected from one USB port and installed in another.


A versatile connectivity solution that bridges legacy serial peripheral devices with newer USB-capable computers, the USB to Serial adapter offers broad operating system compatibility including Windows®, Linux and Mac OS, for easy integration into mixed environments.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


The StarTech.com Advantage
  • COM port settings are retained for serial devices plugged into different USB ports saving time
  • Easy plug and play installation with our USB Powered adapter - no power outlet required

Applications
  • Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
  • Connect, monitor and control industrial/automotive sensors and equipment
  • Connect bar code scanners, receipt printers and other point of sale devices
  • Connect a satellite receiver, serial modem, or PDA with serial sync
  • Connect and program LED and Digital signage boards with serial communication ports

Warranty Information

Warranty

2 Years

Hardware

Bus Type

USB 2.0

Chipset ID

Prolific - PL-2303

Interface

Serial

Port Style

Cable Adapters

Ports

1

Performance

Max Baud Rate

921.6 Kbps

Serial Protocol

RS-232

Connector(s)

Connector Type(s)

1 - DB-9 (9 pin, D-Sub) Male

1 - USB Type-A (4 pin) USB 2.0 Male

Software

OS Compatibility

Windows® PocketPC 2003 / 2000, Windows Mobile 5/6, CE 4.2/5.2, Embedded System 2009, XP Embedded, POS Ready 2009, 98SE, 2000, ME, XP, Vista, 7, 8, 8.1, 10

Windows Server® 2003, 2008 R2, 2012, 2016

Mac OS X® 10.6 to 10.12

Linux 2.4.x to 4.4.x LTS Versions only

Special Notes / Requirements

System and Cable Requirements

PC with an available USB 1.1 (or above) port

Environmental

Humidity

5~85% RH

Operating Temperature

-10°C to 80°C (14°F to 176°F)

Storage Temperature

-20°C to 100°C (-4°F to 212°F)

Physical Characteristics

Cable Length

1 ft [0.3 m]

Color

Black

Enclosure Type

Plastic

Product Height

0.6 in [15 mm]

Product Length

15.7 in [400 mm]

Product Weight

2.5 oz [70 g]

Product Width

1.3 in [34 mm]

Packaging Information

Shipping (Package) Weight

0.3 lb [0.1 kg]

What's in the Box

Included in Package

1 - USB to Serial Adapter

1 - Driver CD

1 - Instruction Manual



1 ft USB to RS232 Serial DB9 Adapter Cable with COM Retention - USB to DB9 - USB to Serial Port Adapter


Brand Name: StarTech.com
Colour: Black
Connector on First End: 1 x DB-9 Male Serial
Connector on Second End: 1 x Type A Female USB
Product Type: Data Transfer Cable


Basic

Brand Name:

StarTech.com

Colour:

Black

Connector on First End:

1 x DB-9 Male Serial

Connector on Second End:

1 x Type A Female USB

Product Type:

Data Transfer Cable
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

ICUSB232PRO

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Product Model:

ICUSB232PRO

Product Name:

1 ft USB to Serial Adapter Cable w/ COM Retention

Product Type:

Data Transfer Cable
Miscellaneous

Additional Information:


Operating System(s):

  • Windows 7 / Vista / XP (32/64)
  • Windows 2000 / ME / 98SE
  • Windows Server 2008 R2
  • Mac OS v.10.x (Tested up to v.10.8)
  • Linux
Physical Characteristics

Colour:

Black
Technical Information

Conductor:

Copper

Connector on First End:

1 x DB-9 Male Serial

Connector on Second End:

1 x Type A Female USB
Warranty

Limited Warranty:

2 Year
