Startech PCI Express to PCI Adapter Card PEX1PCI1

Features

Startech

pdf brochure downloadDownload Brochure


Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot


  • Innovative bracket design adapts and secures the existing half-height/low profile bracket of the PCI Card


  • PCI Express base spec 1.0a compliant for up to 250MBps of available bandwidth


  • LP4 Power Connector Included for Universal Voltage PCI Cards (3.3V/5V)

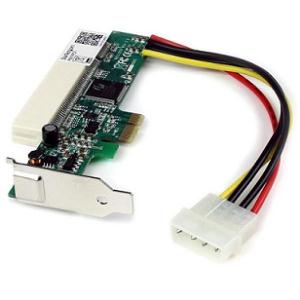

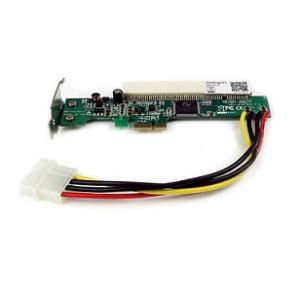

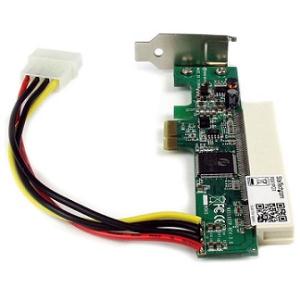

This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.


A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).


The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.


To ensure suitable installation in any low profile server or desktop computer, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.


The StarTech.com Advantage
  • The unique bracket design allows a low profile/half-height PCI card to work seamlessly in a PCI Express-based expansion slot
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support

Applications
  • Use older PCI-based cards on new PCI Express-enabled computer systems
  • Install a low profile/half-height PCI card into a full profile PCI Express system
  • Industrial and legacy PCI cards may be hard to find or too costly to replace

Warranty Information

Warranty

2 Years

Hardware

Bus Type

PCI Express

Card Type

Standard Profile

Chipset ID

Pericom - PI7C9X111SL

Interface

PCI / PCI-X (5 / 3.3V)

Connector(s)

Connector Type(s)

1 - PCI Express x1 Male

Internal Ports

1 - LP4 (4 pin, Molex Large Drive Power) Male

1 - PCI (5V, 32-bit) Slot Female

Software

OS Compatibility

OS Independent; No additional drivers or software required

Special Notes / Requirements

System and Cable Requirements

The PEX1PCI1 is not compatible with 32-bit 3.3V PCI cards. It is compatible with 5V or universal 3.3V/5V PCI cards only.

Environmental

Operating Temperature

0°C to 85°C (32°F to 185°F)

Physical Characteristics

Product Height

0.8 in [20 mm]

Product Length

5.3 in [135 mm]

Product Weight

1.8 oz [52 g]

Product Width

2.8 in [70 mm]

Packaging Information

Shipping (Package) Weight

4.9 oz [140 g]

What's in the Box

Included in Package

1 - PCI Express to PCI Card

1 - Spare Full Profile Bracket

1 - Instruction Manual



PCI Express to PCI Adapter Card - PCIe to PCI Converter Adapter with Low Profile / Half-Height Bracket


Brand Name: StarTech.com
Expansion Slot Type: PCI
Host Interface: PCI Express
Number of Total Expansion Slots: 1
Product Type: Riser Card


Basic

Brand Name:

StarTech.com

Expansion Slot Type:

PCI

Host Interface:

PCI Express

Number of Total Expansion Slots:

1

Product Type:

Riser Card
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

PEX1PCI1

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Product Name:

PCI Express to PCI Adapter Card

Product Type:

Riser Card
I/O Expansions

Expansion Slot Type:

PCI

Number of Total Expansion Slots:

1
Interfaces/Ports

Host Interface:

PCI Express
Miscellaneous

Additional Information:
  • The unique bracket design allows a low profile/half-height PCI card to work seamlessly in a PCI Express-based expansion slot
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support
Physical Characteristics

Height:

20.1 mm

Thickness:

134.9 mm

Weight (Approximate):

52 g

Width:

70.1 mm
Product Information

Thickness:

134.9 mm

Width:

70.1 mm
Technical Information

Host Interface:

PCI Express
Warranty

Limited Warranty:

2 Year
