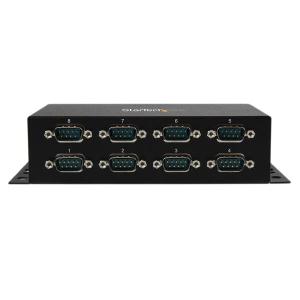

Startech 8 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable ICUSB2328I

Features

Startech

pdf brochure downloadDownload Brochure


Add 8 DIN Rail-mountable RS232 Serial ports to any system through USB


  • USB to 8-Port Straight-Through RS232 Serial Adapter


  • Rugged metal construction


  • Wall-mountable, and includes DIN Rail clips


The ICUSB2328I Industrial 8-Port USB to Serial Hub with DIN Rail Clips converts a single USB port into eight RS232 serial ports, enabling you to connect to, monitor and control your serial devices.


Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this 8 port USB to RS232 Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.


This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the USB serial hub ports.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


The StarTech.com Advantage
  • Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
  • Rugged all-metal enclosure for added durability in harsh environments
  • Easy plug and play installation, with our USB Powered adapter - no power outlet required

Applications
  • Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port
  • Connect, monitor and control industrial/automotive sensors and equipment
  • Connect bar code scanners, receipt printers and other point of sale devices
  • Connect a satellite receiver, serial modem, or PDA with serial sync
  • Connect and program LED and Digital signage boards with serial communication ports

Warranty Information

Warranty

2 Years

Hardware

Bus Type

USB 2.0

Chipset ID

FTDI - FT232RL

Interface

Serial

Port Style

External Hub

Ports

8

Performance

Data Bits

7, 8

FIFO

4096 byte Transmit and Receive

Max Baud Rate

921.6 Kbps

Maximum Data Transfer Rate

921.6 Kbps

MTBF

146,300 Hours

Parity

Odd, Even, Mark, Space, None

Serial Protocol

RS-232

Stop Bits

1, 2

Connector(s)

External Ports

1 - USB B (4 pin) Female

8 - DB-9 (9 pin, D-Sub) Male

Software

OS Compatibility

Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10

Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016

Mac OS® 10.6 to 10.12

Linux 2.4.x to 4.4.x LTS Versions only

Indicators

LED Indicators

8 - Each, Tx/Rx Activity indicators

Power

Input Current

250 mA

Input Voltage

5 DC

Plug Type

M

Power Source

USB-Powered

Environmental

Humidity

5~95% RH

Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-20°C to 85°C (-4°F to 185°F)

Physical Characteristics

Color

Black

Enclosure Type

Steel

Product Height

1.7 in [43.2 mm]

Product Length

7.1 in [180 mm]

Product Weight

19.2 oz [544 g]

Product Width

3.9 in [100 mm]

Packaging Information

Shipping (Package) Weight

1.9 lb [0.9 kg]

What's in the Box

Included in Package

1 - USB to RS-232 Serial Adapter

1 - DIN rail kit

1 - 6 ft USB A to B cable

1 - Driver CD

1 - Instruction Manual



8 Port USB to DB9 RS232 Serial Adapter Hub Industrial DINRail and Wall Mountable - USB to RS 232 Serial Adapter 8-Port - USB to Serial Converter


Brand Name: StarTech.com
Form Factor: Wall Mountable
Host Interface: USB
Number of Serial Ports (External): 8
Product Type: Serial Hub


Basic

Brand Name:

StarTech.com

Form Factor:

Wall Mountable

Host Interface:

USB

Number of Serial Ports (External):

8

Product Type:

Serial Hub
Drive Performance

Data Transfer Rate:

921.60 kbit/s
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

ICUSB2328I

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Packaged Quantity:

1

Product Name:

USB to RS-232 Serial Adapter

Product Type:

Serial Hub
Input Devices

Data Transfer Rate:

921.60 kbit/s
Interfaces/Ports

Host Interface:

USB

Number of Serial Ports (External):

8

Number of USB Ports:

1
Media & Performance

Data Transfer Rate:

921.60 kbit/s
Miscellaneous

Form Factor:

Wall Mountable

Platform Supported:

PC
Physical Characteristics

Form Factor:

Wall Mountable

Height:

43.2 mm

Length:

172.7 mm

Platform Supported:

PC

Weight (Approximate):

949.7 g

Width:

96.5 mm
Product Information

Form Factor:

Wall Mountable

Length:

172.7 mm

Packaged Quantity:

1

Platform Supported:

PC

Width:

96.5 mm
Storage

Data Transfer Rate:

921.60 kbit/s
Technical Information

Data Transfer Rate:

921.60 kbit/s

Host Interface:

USB

Length:

172.7 mm

Platform Supported:

PC
