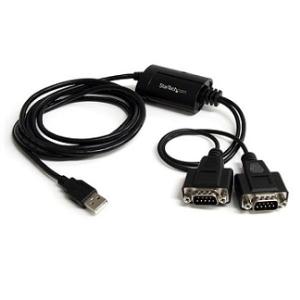

Startech 2 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention ICUSB2322F

Features

(Pictures are For Illustration Purposes Only)

Startech

pdf brochure downloadDownload Brochure


Add two RS232 serial ports with COM retention to your laptop or desktop computer through USB


  • Single cable design for portability


  • Wall mountable design


  • Integrated FTDI USB UART Chip


The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices.


This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.


This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows®, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments.


Backed by a StarTech.com 2-year warranty and free lifetime technical support.


The StarTech.com Advantage
  • Simple installation and operation with COM port retention provides robust connectivity for serial devices
  • Portable USB-Powered design requires no bulky power adapter or outlet
  • The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup

Applications
  • Perfect for IT Administrators looking to add legacy functionality to newer laptops, PCs and servers that lack an integrated RS232 port
  • Connect, monitor and control industrial/automotive sensors and equipment
  • Connect bar code scanners, receipt printers and other point of sale devices
  • Connect a satellite receiver, RS232 serial modem, or PDU
  • Connect and program LED and Digital signage boards with serial communication ports

Warranty Information

Warranty

2 Years

Hardware

Bus Type

USB 2.0

Chipset ID

FTDI - FT2232D

Interface

Serial

Port Style

Cable Adapters

Ports

2

Performance

Data Bits

7, 8

FIFO

128 Bytes

Max Baud Rate

921.6 Kbps

Parity

None, Odd, Even, Mark,
Space

Serial Protocol

RS-232

Stop Bits

1, 2

Connector(s)

Connector Type(s)

1 - USB Type-A (4 pin) USB 2.0 Male

2 - DB-9 (9 pin, D-Sub) Male

Software

OS Compatibility

Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10

Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016

Mac OS® 10.6 to 10.12

Linux 2.4.x to 4.4.x LTS Versions only

Special Notes / Requirements

System and Cable Requirements

One available USB 1.1 (or better) port

Power

Power Source

USB-Powered

Environmental

Humidity

5~95% RH

Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-20°C to 85°C (-4°F to 185°F)

Physical Characteristics

Cable Length

6 ft [1.8 m]

Color

Black

Enclosure Type

Plastic

Product Height

0.8 in [20 mm]

Product Length

84 in [2133 mm]

Product Weight

5.6 oz [159 g]

Product Width

1.8 in [45 mm]

Packaging Information

Shipping (Package) Weight

0.5 lb [0.2 kg]

What's in the Box

Included in Package

1 - 2 Port USB to RS-232 Serial Adapter

1 - Wall Mounting Kit

1 - Driver CD

1 - Instruction Manual



2 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention - USB to DB9 - USB to Serial Port


Brand Name: StarTech.com
Cable Length: 1.83 m
Cable Type: Serial
Colour: Black
Connector on First End: 1 x Type A Male USB
Connector on Second End: 2 x DB-9 Male Serial
Product Type: Data Transfer Cable


Basic

Brand Name:

StarTech.com

Cable Length:

1.83 m

Cable Type:

Serial

Colour:

Black

Connector on First End:

1 x Type A Male USB

Connector on Second End:

2 x DB-9 Male Serial

Product Type:

Data Transfer Cable
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

ICUSB2322F

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Product Name:

2 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention

Product Type:

Data Transfer Cable
Lock

Cable Length:

1.83 m
Miscellaneous

Certifications & Standards:
  • FCC
  • CE

Device Supported:

Modem

Green Compliance Certificate/Authority:

RoHS

Green Compliant:

Yes
Physical Characteristics

Colour:

Black

Material:

Plastic - Housing
Product Information

Cable Length:

1.83 m

Device Supported:

Modem

Printer
Technical Information

Cable Length:

1.83 m

Cable Type:

Serial

Conductor:

Copper

Connector on First End:

1 x Type A Male USB

Connector on Second End:

2 x DB-9 Male Serial

Device Supported:

Modem

Number of Ways:

2-way
Warranty

Limited Warranty:

2 Year
