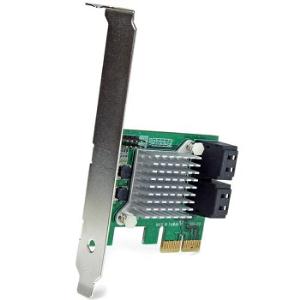

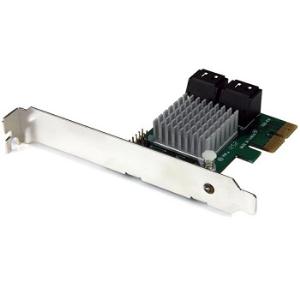

Startech 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering PEXSAT34RH

Features

Startech

pdf brochure downloadDownload Brochure


Add 4 Internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot


  • Supports HyperDuo SSD auto-tiering


  • 4 AHCI SATA III (6Gbps) ports through PCI Express x2


  • Fully compliant with SATA 3.0 specifications and backward compatible with SATA I/II (1.5/3.0Gbps) drives


The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).


Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)


The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.


Throughput Benchmark


Drive configuration

Throughput

Drive size

1 x HDD

112.81 MB/s

2 TB

1 x SSD

490.28 MB/S

120 GB

1 x HDD + 1 x SSD HyperDuo (Safe Mode)
489.28 MB/s
2 TB

1 x HDD + 2 x SSD HyperDuo (Safe Mode)
715.13 MB/s
2 TB
Drives Used:

SSD: OCZ Vertex 3 Series 2.5” 120 GB (VTX3-25SAT3-120G)

Hard Drive: Western Digital Caviar Green 3.5” 2 TB (WD20EARS)

Software Used:

IO Meter, 256KB Sequential Read, queue depth = 10


This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support.


The StarTech.com Advantage
  • Leverage SSD performance and standard HDD capacity with HyperDuo technology
  • Maximize system capability with SATA III connection speeds
  • Fit any standard or low profile chassis with included brackets

Applications
  • Use SSD tiering to optimize your system for I/O intensive applications such as Office Suites, Photo/Video Editing and Media Players
  • Upgrade an older PCIe-based system to SATA 6Gbps capability, to better utilize faster SATA drives
  • Add more internal SATA ports to a computer system, to connect additional storage drives and/or optical drives
  • Provide optimized off-site back-ups/vaulting, through built-in RAID 1 capability
  • Perfect for multi-drive internal RAID storage solutions

Warranty Information

Warranty

2 Years

Hardware

Bus Type

PCI Express

Card Type

Standard Profile (LP bracket incl.)

Chipset ID

Marvell - 88SE9230

Industry Standards

PCI Express 2.0

Serial ATA 3.0 specification

Interface

SATA

Port Style

Integrated on Card

Ports

4

Performance

ATAPI Support

Yes

Bootable

Yes

LBA support

48-bit

Max Drive Capacity

Currently tested up to 4TB per drive

Number of Drives Supported Through Port Multiplier

1 to 4

Number of Ports That Support Port Multiplier

4 (can only use 1 PM at a time)

Port Multiplier

Yes

RAID

Yes

Supported RAID Modes

JBOD - (Just a Bunch of Disks)

RAID 1 (Mirrored Disks)

RAID 0 (Striped Disks)

RAID 10 (1+0, Striped set of Mirrored Subset)

Type and Rate

SATA III (6 Gbps)

Connector(s)

Connector Type(s)

1 - PCI Express x2 Male

Internal Ports

4 - SATA (7 pin, Data) Plug

Software

OS Compatibility

Windows® XP, Vista, 7, 8, 8.1, 10

Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016

Mac OS® 10.6 to 10.12

Linux 3.5.x to 4.4.x LTS versions only

Note: Connected drives cannot be used as System / Primary drive in Windows Server 2012, 2012 R2, 2016

Special Notes / Requirements

Note


The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps per lane.


Only one port can use the Port Multiplier feature at a time. Supports up to 4 drives connected via Port Multiplier, 7 drives total.


Port Multiplier not supported in Mac OS.


System and Cable Requirements

Available PCI Express x2 slot (backward compatible with x4, x8, and x16 slots)

Environmental

Humidity

20% ~ 80% RH

Operating Temperature

5°C ~ 50°C (41°F ~ 122°F)

Storage Temperature

-25°C ~ 70°C (-13°F ~ 158°F)

Physical Characteristics

Product Height

0.8 in [20 mm]

Product Length

2.8 in [70 mm]

Product Weight

1.8 oz [50 g]

Product Width

4.7 in [120 mm]

Packaging Information

Package Quantity

1

Shipping (Package) Weight

5.1 oz [145 g]

What's in the Box

Included in Package

1 - PCIe SATA Controller Card

1 - Low Profile Bracket

1 - Driver CD

1 - Instruction Manual



4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - PCIe SATA 3 Controller Adapter


Brand Name: StarTech.com
Controller Type: Serial ATA/600
Form Factor: Plug-in Card
Host Interface: PCI Express 2.0 x2
Product Type: SATA Controller
RAID Levels: 0
RAID Levels: 1
RAID Levels: JBOD
RAID Supported: Yes
Total Number of SATA Ports: 4


Basic

Brand Name:

StarTech.com

Controller Type:

Serial ATA/600

Form Factor:

Plug-in Card

Host Interface:

PCI Express 2.0 x2

Product Type:

SATA Controller

RAID Levels:

0

1

JBOD

RAID Supported:

Yes

Total Number of SATA Ports:

4
Controllers

Controller Type:

Serial ATA/600

RAID Levels:

1

1+0

RAID Supported:

Yes
General Information

Brand Name:

StarTech.com

Manufacturer Part Number:

PEXSAT34RH

Manufacturer Website Address:
http://www.startech.com/au

Manufacturer:

StarTech.com

Package Contents:
  • 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink
  • 1 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual

Packaged Quantity:

1

Product Name:

4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink

Product Type:

SATA Controller
I/O Controller

Controller Type:

Serial ATA/600

RAID Levels:

0

1

1+0

RAID Supported:

Yes
Interfaces/Ports

Host Interface:

PCI Express 2.0 x2

Number of SATA Ports (Internal):

4

Total Number of SATA Ports:

4
Miscellaneous

Additional Information:
OS Compatibility:
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
  • Windows Server® 2012, 2008 R2, 2003
  • Mac OS® 10.6 and later (tested up to 10.10)
  • Linux

Compatibility:


OS Compatibility:

  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
  • Windows Server® 2012, 2008 R2, 2003
  • Mac OS® 10.6 and later (tested up to 10.10)
  • Linux

Form Factor:

Plug-in Card

Green Compliance Certificate/Authority:

RoHS

Green Compliant:

Yes

Package Contents:
  • 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink
  • 1 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual

Platform Supported:

PC
Physical Characteristics

Card Height:

Low-profile

Form Factor:

Plug-in Card

Height:

70 mm

Platform Supported:

PC

Thickness:

20 mm

Weight (Approximate):

50 g

Width:

120 mm
Product Information

Compatibility:


OS Compatibility:

  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
  • Windows Server® 2012, 2008 R2, 2003
  • Mac OS® 10.6 and later (tested up to 10.10)
  • Linux

Form Factor:

Plug-in Card

Packaged Quantity:

1

Platform Supported:

PC

Thickness:

20 mm

Width:

120 mm
Storage

RAID Levels:

0

1+0
Technical Information

Controller Type:

Serial ATA/600

Host Interface:

PCI Express 2.0 x2

Platform Supported:

PC

RAID Levels:

0

1+0

RAID Supported:

Yes
Warranty

Limited Warranty:

2 Year
