Rii Mini 2.4GH Wireless Mini Keyboard With Touch Pad And 'Learning' Remote Control RT-MWK06

Description:

This is a wonderful combo, 2.4GHz Wireless mini QWERTY keyboard, Touchpad combo, with USB interface receiver. This product consists not only of normal wireless keyboard keys, but also of multimedia control keys and PC gaming control keys. It has built-in programmable smart touchpad, the world’s first touchpad which can be used in horizontal and vertical directions. It has power indicator, RF signal indicator, CAPSLOCK light, low-voltage indicator and keypad backlight to facilitate the use in dark environments.

In addition, this is also a universal infrared remote controller with learning function. The remote control has a powerful ability to identify unknown format with a wide and reliable range of learning formats which means about 99.9% TV infrared remote control on the market can be learnt .After learning the signals can be transmitted with high precision with a wide learning range(20kHz-60kHz) and a small frequency error(±1kHz).

Features:

Specifications:

Measurements (L x W x H): 151mm x 59mm x 11mm
Weight (grams): 98g

Parameters on the top interface
Frequency range: 2401-2480MHz
Operational Range: up to 30 meters
Transmit power: +4db Max.
Operation voltage: 3.3V
Operation current: < 50mA
Charging current: < 300mA
Sleep current: < 1mA

Parameters on the bottom interface
Rated voltage: DC 3V
Voltage range: 2.3V~3.6V
Operation current :< 20mA
Sleep current :< 2µA
Ambient temperature: 0°C -+70°C
Storage temperature: -65°C - 150°C
Operational Range :> 8M
Low-voltage (2.5V) condition’s Infrared
Emission Distance :> 6M

System Requirements

• iPad, Mobile Phone, PS3
• iPhone/iPhone 3G/iPhone 3GS (4.0 )
• Microsoft Windows Mobile OS(6.0 )
• Symbian S60 OS(2nd, 3rd, 5th)
• Windows XP/Vista/Win 7(with IVT stack/Broadcom)
• Mac OS
• Linux OS

Click to view full size

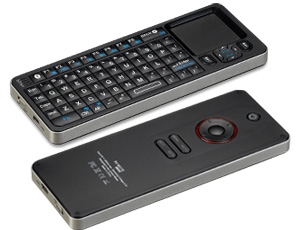

(Pictures are For Illustration Purposes Only)
