4.8MM Thin Wall Shrinks TO 2.4MM White 4 XLP5WH/4FT

Information

Item ID

291230

Item Number

G-XLP5WH/4FT

Manufacturer Part No

XLP5WH/4FT

UPC/EAN Number

9318674533429

Our Stock **

1-3days*

Price

$2.90

Quantity

QR 2D barcode
Product link	.: No link
Manufacturer's link	.: Cabac
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	1924 (ignore this, cost price is higher than our retail price)		26/05/12 10:30PM

Features

Download Brochure

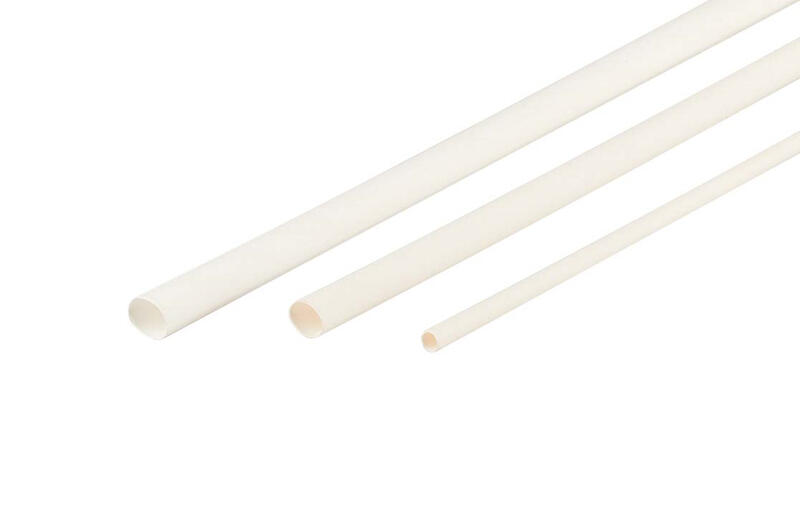

XLP - Heatshrink - Thin Wall - Flame Retarded

XLP tubing is a chemically cross-linked tubing that conforms to MIL-1-23053/5 class 3. It will withstand -75°C to 135°C for normal operating conditions and 200°C for short intervals. Black tubing withstands ultraviolet radiation. Tubing can easily be shrunk with a heat gun or a heat tunnel. All tubings in this range are flame retarded except clear, which is flammable and conforms to MIL-1- 23053/5 class 2.

Highly flexible.

Flame retarded.

Abrasion and impact resistant.

For use in all electrical and electronic applications.

In-house cutting facility available for cut sleeves.

Full range 1.5 mm to 125 mm diameter with 2:1 shrink.

Available in most colours on reels or 4 ft (1.2 m) lengths.

XLP tubing has numerous uses in the electrical and associated industries, including insulation, colour coding and mechanical protection.

Catalogue No.	Preshrink Diameter	After Shrink Diameter	Recovered Wall thickness	Standard Reel Quantity
XLP1.5	1.5	0.75	0.43	200
XLP2.5	2.5	1.25	0.51	200
XLP3	3.0	1.5	0.51	200
XLP5	5.0	2.5	0.51	100
XLP7	7.0	3.5	0.64	50
XLP10	10.0	5.0	0.64	50
XLP13	13.0	6.5	0.64	50
XLP20	20.0	10.0	0.76	50
XLP25	25.0	12.5	0.89	50
XLP38	38.1	19.1	1.02	25
XLP51	50.8	25.4	1.14	25
XLP76	76.2	38.1	1.27	25
XLP102	101.6	50.8	1.40	25
XLP125	127	63.5	1.60	30

Lengths and Colours Available

Colour	Suffix	Reel	4 ft
Black	BK	Yes	Yes
Red	RD	Yes	Yes
White	WH	Yes	Yes
Blue	BL	Yes	Yes
Green	G	Yes	Yes
Yellow	Y	Yes	Yes
Clear	CL	Yes	Yes
Yellow/Green	YG	No	Yes

Note: 4ft lengths are not available in XLP102 and XLP125

**Technical Data**
Compliant Standards UL-E209248 Conformant Standards MIL-1-23053/5; JIS Material Chemically, cross-linked, thermally stabilised flame retarded polyolefin Continuous operating temperature -75°C to +135°C Shrinkage temperature > 100°C Longitudinal shrinkage < 5% Tensile strength 16 MPa			Breakdown voltage 25 kV/mm wall thickness Volume resistivity 1.0 x 1014 ohm cm Elongation at break point 400% Water absorption 0.15% max Flammability Passed ASTM-D-2671 UV stability Black tubing is stable Voltage rating 600 V

Note

When ordering 4ft (1.2m) lengths, please add the suffix /4FT to the catalogue number, i.e., XLP10BK/4FT is 10 mm black by 4 ft (1.2 m) length.

Cabac offers a service to pre cut large quantities of tubing to customer specifications. Please contact our sales department.

Cabac prefers to supply full reels of tubing. If your requirements are less than a full reel, please consider buying 4 ft lengths.

XLP125 is a special product and certain
colours may be available only on special order.
KG2000 general
purpose heatgun.

xlp5wh/4ft tubing available lengths flame

Click to view full size

(Pictures are For Illustration Purposes Only)
