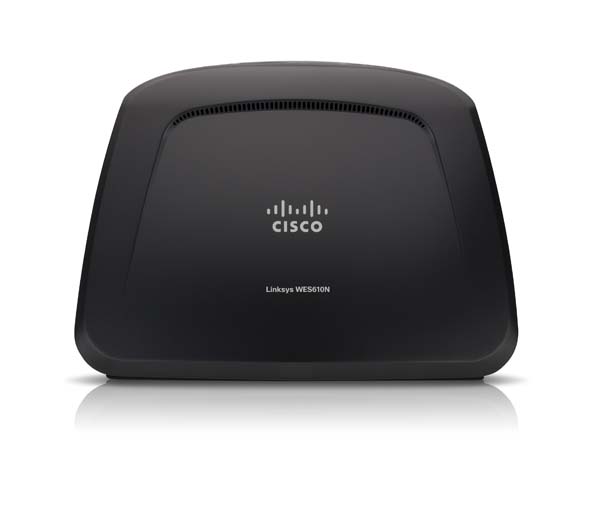

Cisco Linksys WES610N N300 Entertainment WES610N-AU

WES610N

Model WES610N

Standards IEEE 802 3u, 802 11g, 802 11b, 802 11a, 802 11n

LEDs Power, Ethernet, Wi-Fi Protected Setup™,

Wireless, individual Ethernet link and activity

Ports Ethernet (4), Power

Buttons Reset, Wi-Fi Protected Setup

Cabling Type CAT5e

Antennas 3 (internal)

Antenna Connector Type N/A

Detachable (Yes/No) No

Modulations 802 11a: OFDM/BPSK, QPSK, 16-QAM, 64-QAM

802 11b: CCK/QPSK, BPSK

802 11g: OFDM/BPSK, QPSK, 16-QAM, 64-QAM

802 11n: OFDM/BPSK, QPSK, 16-QAM, 64-QAM

RF Pwr (EIRP) in dBm 802 11a: 15 dBm (typical) @ 54Mbps

802 11b: 19 dBm (typical) @ 11 Mbps

802 11g: 16 dBm (typical) @ 54 Mbps

802 11n (2 4 GHz): 18 dBm (typical) @ MCS15

802 11n (5 GHz): 16 dBm (typical) @ MCS15

Receive Sensitivity 802 11a: -72 dBm (typical) @ 54 Mbps

802 11b: -85 dBm (typical) @ 11 Mbps

802 11g: -73 dBm (typical) @ 54 Mbps

802 11n (20 MHz): -75 dBm (typical) @ MCS15

802 11n (40 MHz): -69 dBm (typical) @ MCS15

Antenna Gain in dBi 1

Wireless Security   WEP, Wi-Fi Protected Access™ (WPA),

Wi-Fi Protected Access™ 2 (WPA2)

Security Key Bits Up to 128-bit encryption

Environmental

Dimensions 6 97” x 5 04” x 2 68”

(177 x 128 x 68 mm)

Weight 0 65 lb (295 g)

Certification FCC, UL/cUL, ICES-003, RSS210, CE, Wi-Fi

(IEEE 802 11a/b/g/draft n), WPA2™,

Wi-Fi Protected Setup, WMM®

Power 12V, 1A

Operating Temperature 32 to 104ºF (0 to 40ºC)

Storage Temperature -4 to 140ºF (-20 to 60ºC)

Operating Humidity 10 to 85% Noncondensing

Storage Humidity 5 to 90% Noncondensin
