| DX-390 Specifications |
- Main Chipset: 2011 Generation Realtek Chipset
- Memory: 256MB RAM, 256MB Programmable Flash

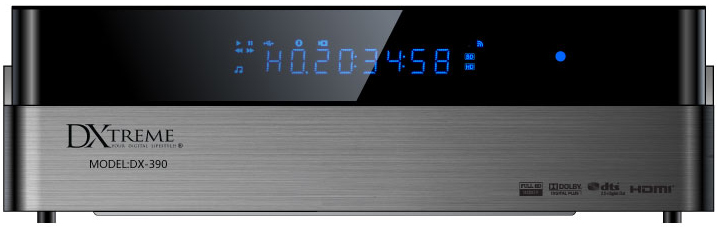

- Display: Front Panel VFD
- DVB-T HD Twin Tuners
- Antenna Loop Out
- Supports Time Shifting
- Supports Free to Air 7 Day Electronic Program Guide (EPG)
- Schedule Recording Functions
- Background Recording Supported
- Teletext & Closed Captions Supported
- Skip Function: 10 sec increment backwards, 30 sec increment forwards
- PVR Recording: Can record to internal Hard Drive or USB Drive

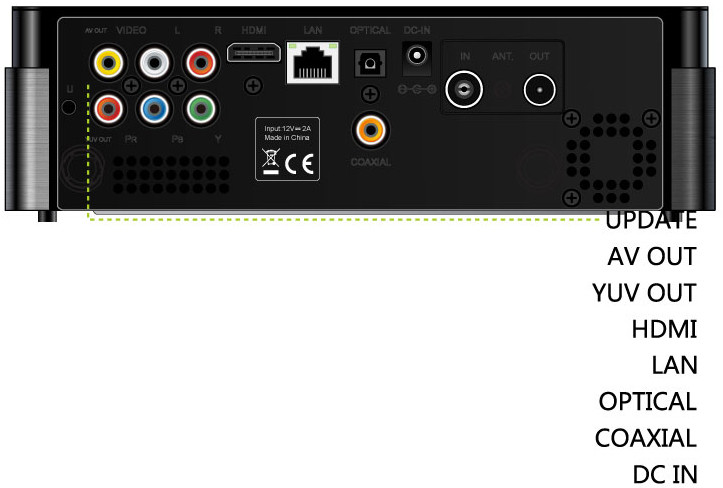

- Video Connectivity: HDMI 1.3, Composite Out, Component (Y/Pb/Pr) Out
- Audio Connectivity: RCA Stereo (L/R), Digital Optical, Digital Coaxial

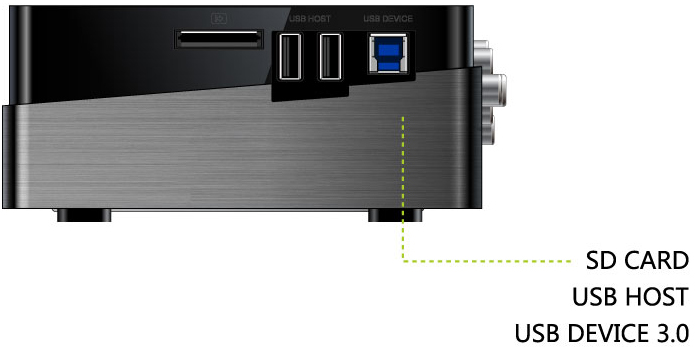

- Connections: 2x USB 2.0 Host (Side), 1x USB 3.0 Target (Rear), 100/1000Mbps Gigabit Ethernet LAN Port, MS / SD Memory Card Slot (Side), 802.11n Wireless LAN Optional USB Adaptor, USB Keyboard & Mouse Supported
- Storage: 3.5" Internal SATA Hard Drive (NTFS, FAT32, SATA I,II, III HDD)
- Storage Capacity: Can support Internal Storage over 2TB
- Network Protocols: UPnP, DLNA, Bit Torrent, NFS, SAMBA Client, SAMBA Server
- Online Services: You Tube, Weather Services, Web Browser, Picassa, Flickr, RSS News, Google Maps, Internet Radio Stations, Pod Casts, P2P Download (Bit Torrent Client)
- Image Formats: JPG, JPEG (Progressive JPEG not supported), BMP, PNG(Interlace not supported), GIF, TIF
- Supports Photo Slideshow Function, Screensaver and Movie Jukebox
- Supported Subtitles: smi, smil, sub, sub/idx, srt, .ssa, .ass
- Supported Languages: English, Traditional Chinese, Japanese, Spanish, French, Dutch, Italian, Korean, Russian, Greek, Simplified Chinese
- Product Dimensions: 215mm x 150mm x 61.5mm
- Product Weight: 2.1kg
|
| Video Support |
- Containers Supported: AVI, MPEG1/2/4(Xvid), .IFO, .ISO, .VOB, .DAT, .WMV, .MKV, .RM, .RMVB, .MP4, .TS, ASF . TP, .FLV, .M2TS, .MTS, .MOV, .DIVX, DVD-ISO BD-ISO, BDMV
- Codecs Supported: XVID SD/HD , MPEG 1, MPEG-2 (MP@HL), MPEG-4.2 (ASP@L5, 720p), WMV9 (MP@HL), H.264 BP@L3,MP@L4.1,HP@L4.1, VC-1 (MP@HL, AP@L3), RM/RMVB8/9/10(up to 1280x720@30P), FLV(H.263)
|
| Audio Support |
- Containers Supported: AAC, M4A, MPEG audio (MP1, MP2, MP3, MPA), PCM, AC3, FLAC (Audio track in MKV), WAV(DTS), WAVPACK, WMA (Lossless not supported), Ogg (Audio track in MKV except for 44.1 KHz)
- Codecs Supported: Dolby Digital Down Mixing, DTS Down Mixing, WMA, WMA Pro, FLAC, AAC, MP1, MP2, MP3, LPCM, Vorbis
|
| Audio Pass-Thru Support |
- DTS, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS-MA (Master Audio)
|
| Package Contents |
- User Manual
- Component Video Cable
- Composite A/V Cable
- Remote Control
- 2x AA Batteries
- 4 Screws (For mounting internal HDD)
- USB 3.0 Cable
- AC Power Adaptor
|
| Note: Web Browser does not support Flash due to chipset limitation |
|
(Pictures are For Illustration Purposes Only)
|
