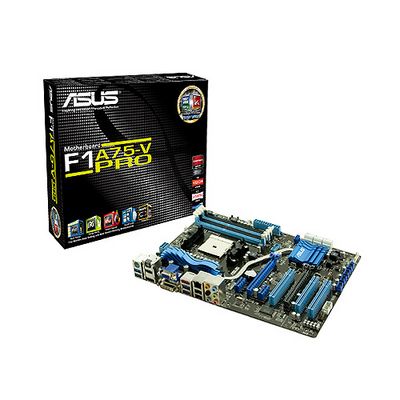

Asus F1A75-V Pro, A75 FM1 2*PCIE RAID Gbl SATA3 USB3.0 DSP DVI VGA HDMI

Information

Item ID

288424

Item Number

B-F1A75-V_PRO

Manufacturer Part No

F1A75-V PRO

UPC/EAN Number

Our Stock **

1-3days*

Price

$143.30

Quantity

QR 2D barcode
Product link	.: Product
Manufacturer's link	.: Asus
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	>5		26/05/12 10:29PM

Features

CPU AMD Socket FM1 A- Series/E2- Series Accelerated Processors
Supports CPU up to 4 cores
Supports AMD® Turbo Core 2.0 Technology
* The AMD® Turbo Core 2.0 Technology Support depends on the APU types
Chipset AMD A75 FCH (Hudson D3)
Memory 4 x DIMM, Max. 64GB, DDR3 1866/1600/1333/1066 Hz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* The Max. 64GB memory capacity can be supported with DIMMs of 16GB (or above). ASUS will update QVL once the DIMMs are available on the market.
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
Graphic Integrated AMD Radeon™ HD 6000 Series Graphics in Llano APU
Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports
- Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 2560 x 1600 @ 60 Hz
AMD® Dual Graphics technology support *1
Supports DirectX 11
Multi-GPU Support Supports AMD CrossFireX™ Technology
Expansion Slots 2 x PCIe 2.0 x16 ( x16, x4) *2
2 x PCIe 2.0 x1 *2
3 x PCI
Storage AMD A75 FCH (Hudson D3) chipset :
6 x SATA 6Gb/s port(s), gray
Support Raid 0, 1, 10, JBOD
ASMedia® PCIe SATA controller :
1 x SATA 6Gb/s port(s), navy blue
1 x eSATA 6Gb/s port(s), red
LAN Realtek® 8111E , 1 x Gigabit LAN Controller(s)
Audio Realtek® ALC 892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Optical S/PDIF out port(s) at back panel
USB Ports AMD A75 FCH (Hudson D3) chipset :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
AMD A75 FCH (Hudson D3) chipset :
10 x USB 2.0 port(s) (2 at back panel, black, 8 at mid-board)
ASMedia® USB 3.0 controller :
2 x USB 3.0 port(s) (2 at back panel, blue)
Overclocking Features Overclocking Protection :
- ASUS C.P.R.(CPU Parameter Recall)
Special Features ASUS Dual Intelligent Processors 2 with DIGI+ VRM :
ASUS TPU :
- Auto Tuning
- TurboV
- TPU switch
ASUS EPU :
- EPU
- EPU switch
ASUS Digital Power Design :
- Industry leading Digital 6 +2 Phase Power Design
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- Ai Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-pipe solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS Q-Shield
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-Connector
100% All High-quality Conductive Polymer Capacitors
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x DisplayPort
1 x HDMI
1 x eSATA 6Gb/s
1 x LAN (RJ45) port(s)
4 x USB 3.0
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
4 x USB 2.0 connector(s) support(s) additional 8 USB 2.0 port(s)
1 x COM port(s) connector(s)
7 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (4 -pin)
1 x Power Fan connector(s) (3 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x MemOK! button(s)
1 x TPU switch(es)
1 x EPU switch(es)
Accessories User's manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
1 x Q-connector(s) (2 in 1) *3
BIOS 32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.6, ACPI V2.0a
Support Disc Drivers
ASUS utilities
ASUS Update
Anti-virus software (OEM version)
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note *1: Refer to www.amd.com for the discrete GPUs which support Dual Graphics technology.
*2: The PCIe x1_2 slot shares the bandwidth with the PCIe x16_2 slot. Due to the CrossFireX™ limitation, DO NOT use the PCIe x1_2 slot when you install two CrossFireX™ graphics cards on both the PCIe x16 slots to set up a CrossFireX™ configuration.
*3: Retail version only.

f1a75-v pro asus port connector supports

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)
