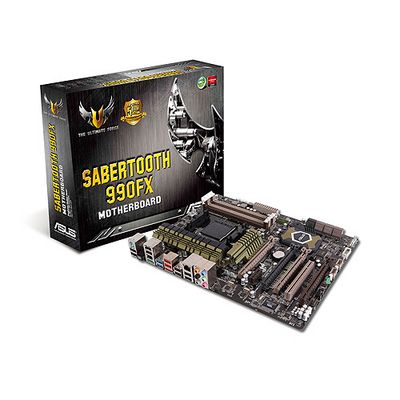

Asus Sabertooth 990FX, 990FX AM3+ 4xDDR3 4*PCIE RAID Gbl 1394 SATA3 USB3.0

Information

Item ID

288423

Item Number

B-SABERTOOTH_990FX

Manufacturer Part No

SABERTOOTH 990FX
SABERTOOTH-990FX

UPC/EAN Number

Our Stock **

1-3days*

Price

$229.06

Quantity

QR 2D barcode
Product link	.: Product
Manufacturer's link	.: Asus
Related Product(s)
Review Link(s)

* Indication only, please consult the supplier stock level below.
** This is the stock level in our warehouse.
** Please check Stock Information below for out of stock items.

Stock Information

	Our Qty in Stock	Availability and ETA
Our own stock	0	Usually 1-3 days (when supplier has stock)
	Supplier's Qty in Stock	Availability and ETA	Updated
Supplier one	3		26/05/12 10:29PM
Supplier two			25/05/12 08:43AM
Supplier three	0		26/05/12 10:30PM

Features

CPU AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
Supports AM3+ 32 nm CPU
Supports CPU up to 8 cores
Supports CPU up to 140 W
AMD Cool 'n' Quiet™ Technology
Chipset AMD 990FX/SB950
Memory 4 x DIMM, Max. 32GB, DDR3 1866/1600/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
* Refer to www.asus.com or user manual for the Memory QVL (Qualified Vendors Lists).
* Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows® OS when you want to install 4GB or more memory on the motherboard.
* Due to CPU spec., AMD 100 series CPUs support up to DDR3 1066MHz. With ASUS design, this motherboard can support up to DDR3 1333MHz.
Multi-GPU Support Supports NVIDIA® Quad-GPU SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Expansion Slots 3 x PCIe 2.0 x16 (dual x16 or x16, x8, x8) *1
1 x PCIe 2.0 x16 (x4 mode, black)
1 x PCIe 2.0 x1
1 x PCI
Storage AMD SB950 controller :
6 x SATA 6Gb/s port(s), brown
Support Raid 0, 1, 5, 10
JMicron® JMB362 controller :
2 x SATA 3Gb/s port(s), black
1 x Power eSATA 3Gb/s port(s), green
1 x eSATA 3Gb/s port(s), red
LAN Realtek® 8111E , 1 x Gigabit LAN Controller(s)
Audio Realtek® ALC 892 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Blu-ray audio layer Content Protection
- ASUS Noise Filter
- Optical S/PDIF out port(s) at back panel
IEEE 1394 VIA® 6308P controller
2 x IEEE 1394a port(s)
(1 at mid-board, 1 at back panel)
USB Ports ASMedia® USB 3.0 controller :
4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
AMD SB950 controller :
14 x USB 2.0 port(s) (10 at back panel, black+red, 4 at mid-board)
Special Features ASUS Dual Intelligent Processors 2 with DIGI+ VRM :
TUF ENGINE! Power Design :
- 8 +2 Digital Phase Power Design
- TUF Components (Alloy choke, Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ VRM Utility
- E.S.P. : Efficient Switching Power Design
Ultimate COOL! Thermal Solution :
- TUF CeraM!X Heatsink Coating Tech.
- TUF Thermal Radar
ASUS Exclusive Features :
- MemOK!
- AI Suite II
- Anti-Surge
- ESD Guards
- Front Panel USB 3.0 Support
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
ASUS EZ DIY :
- ASUS Q-Shield
- ASUS O.C. Profile
- ASUS EZ Flash 2
- ASUS MyLogo 2
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x eSATA 3Gb/s
1 x Power eSATA 3Gb/s
1 x IEEE 1394a
1 x LAN (RJ45) port(s)
2 x USB 3.0
10 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
2 x SATA 3Gb/s connector(s)
1 x IEEE 1394a connector(s)
1 x CPU Fan connector(s) (4 -pin)
4 x Chassis Fan connector(s) (3 x 4 -pin, 1 x 3 -pin)
1 x Optional Fan connector(s) (4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x Clear CMOS jumper(s)
Accessories User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x TUF Certification card(s)
1 x TUF 5 Year Warranty manual(s) (by region)
BIOS 32 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2,
Manageability WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Support Disc Drivers
Anti-virus software (OEM version)
ASUS Update
ASUS Utilities
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note *1: When running dual graphics cards, be sure to insert the card in the first and third PCIex16 slot to get the best performance.
This PC is preloaded with reduced-functionality versions of Word and Excel that include advertising. Purchase an Office 2010 Product Key to activate full-featured Office software on this PC.

sabertooth 990fx asus port connector panel

Click to view full size

Click to view full size

Click to view full size

(Pictures are For Illustration Purposes Only)
